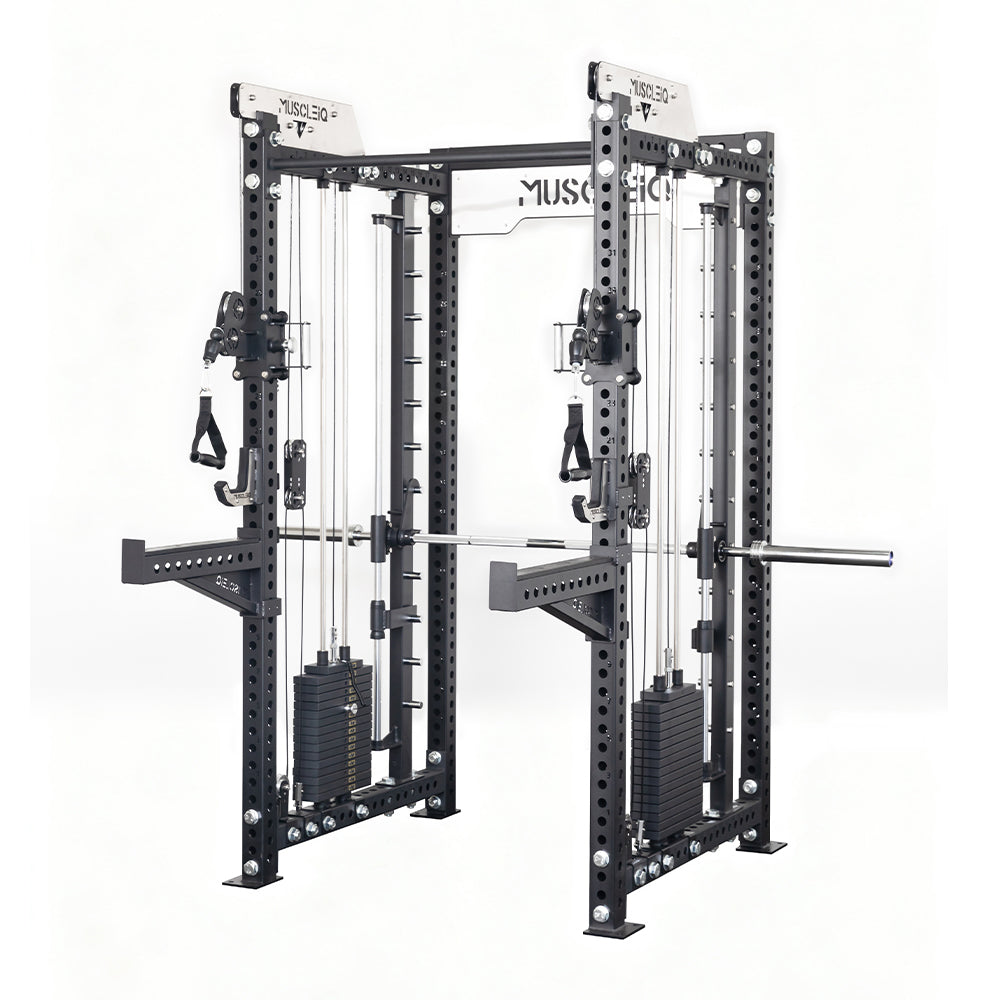

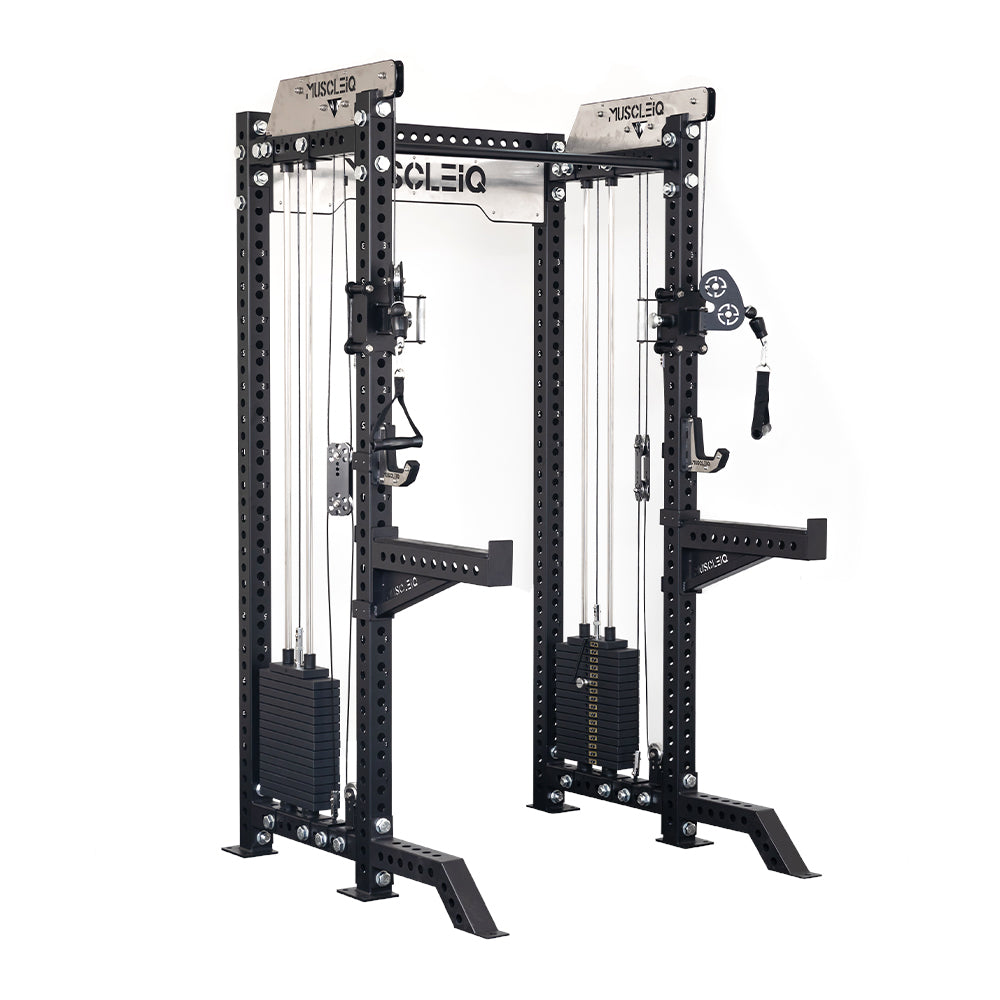

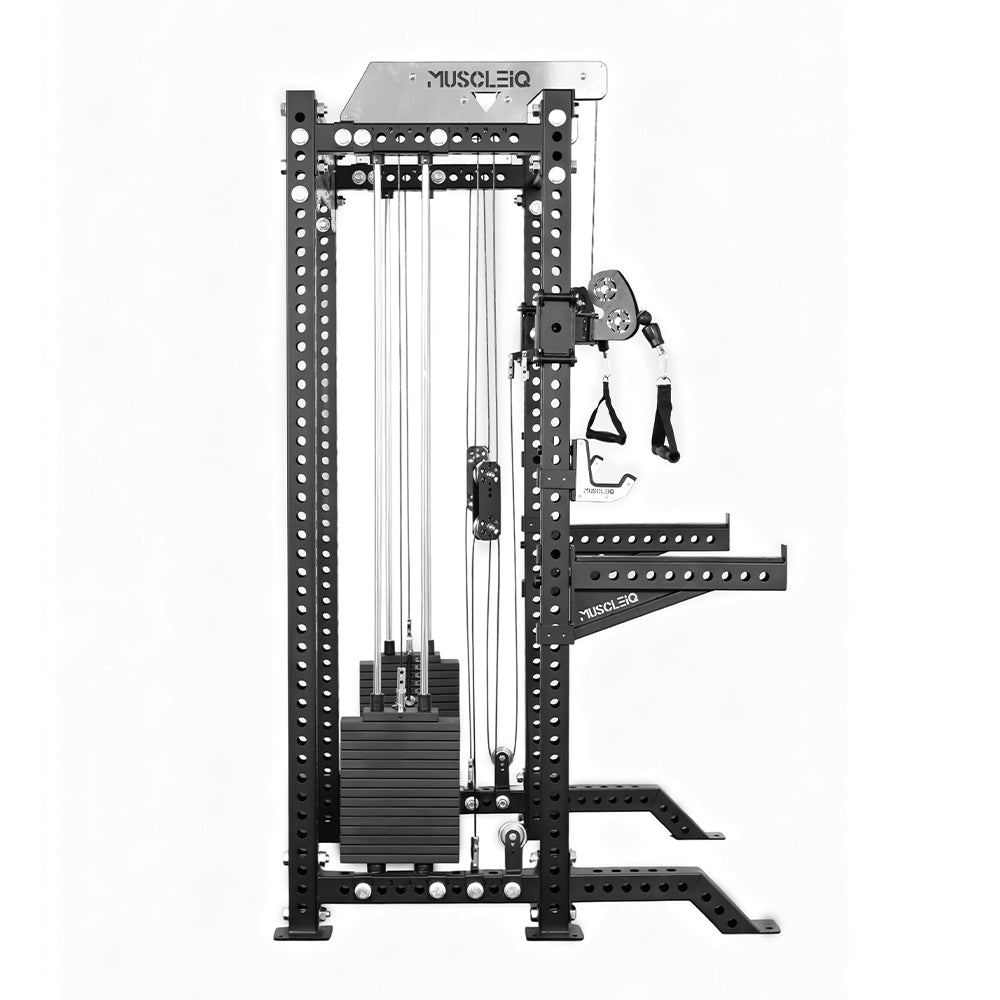

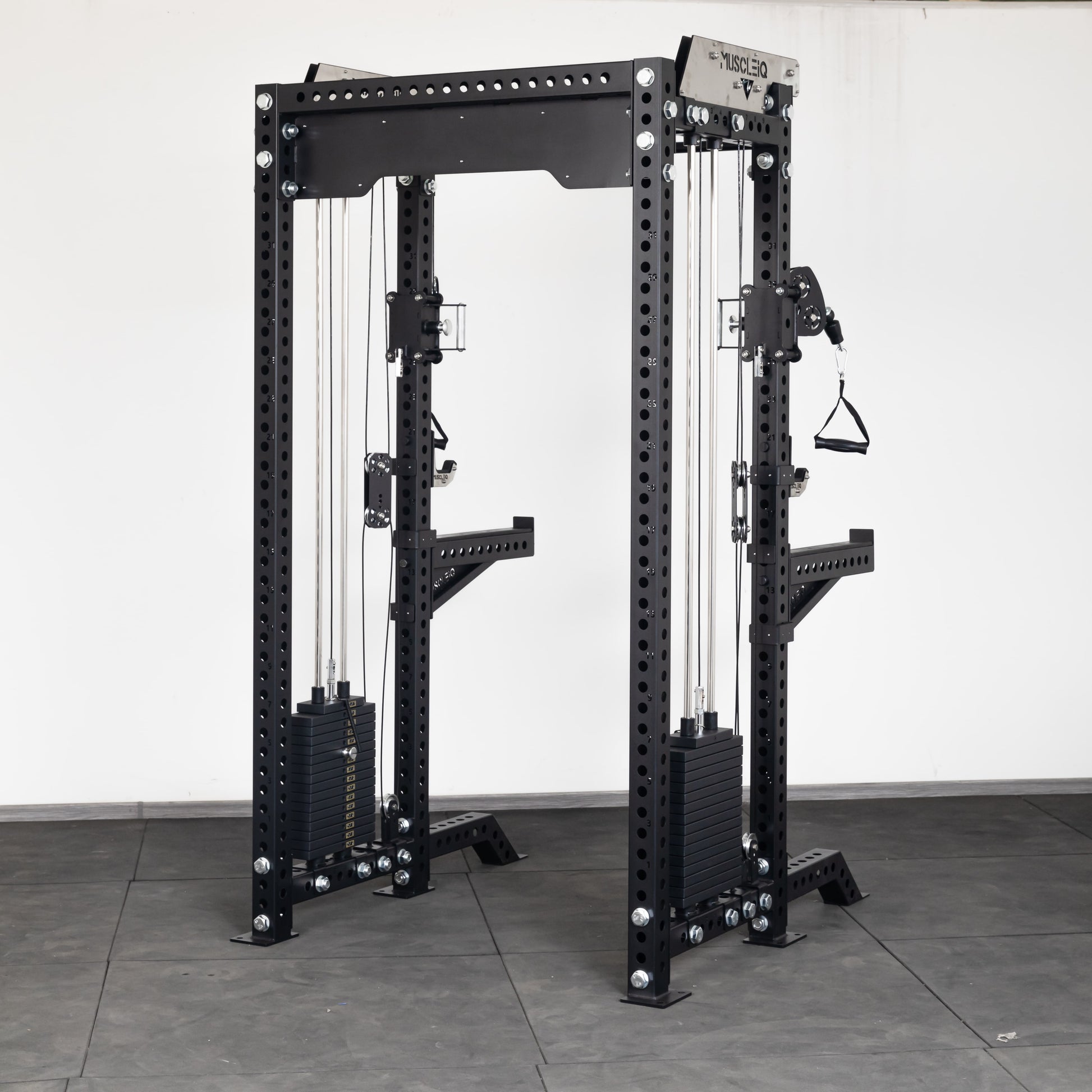

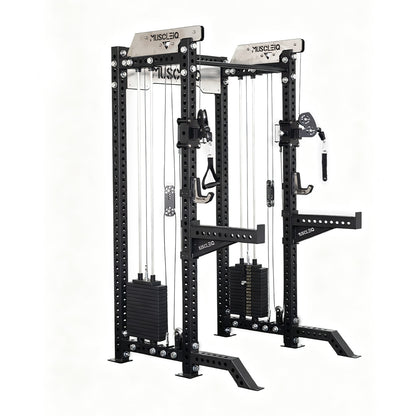

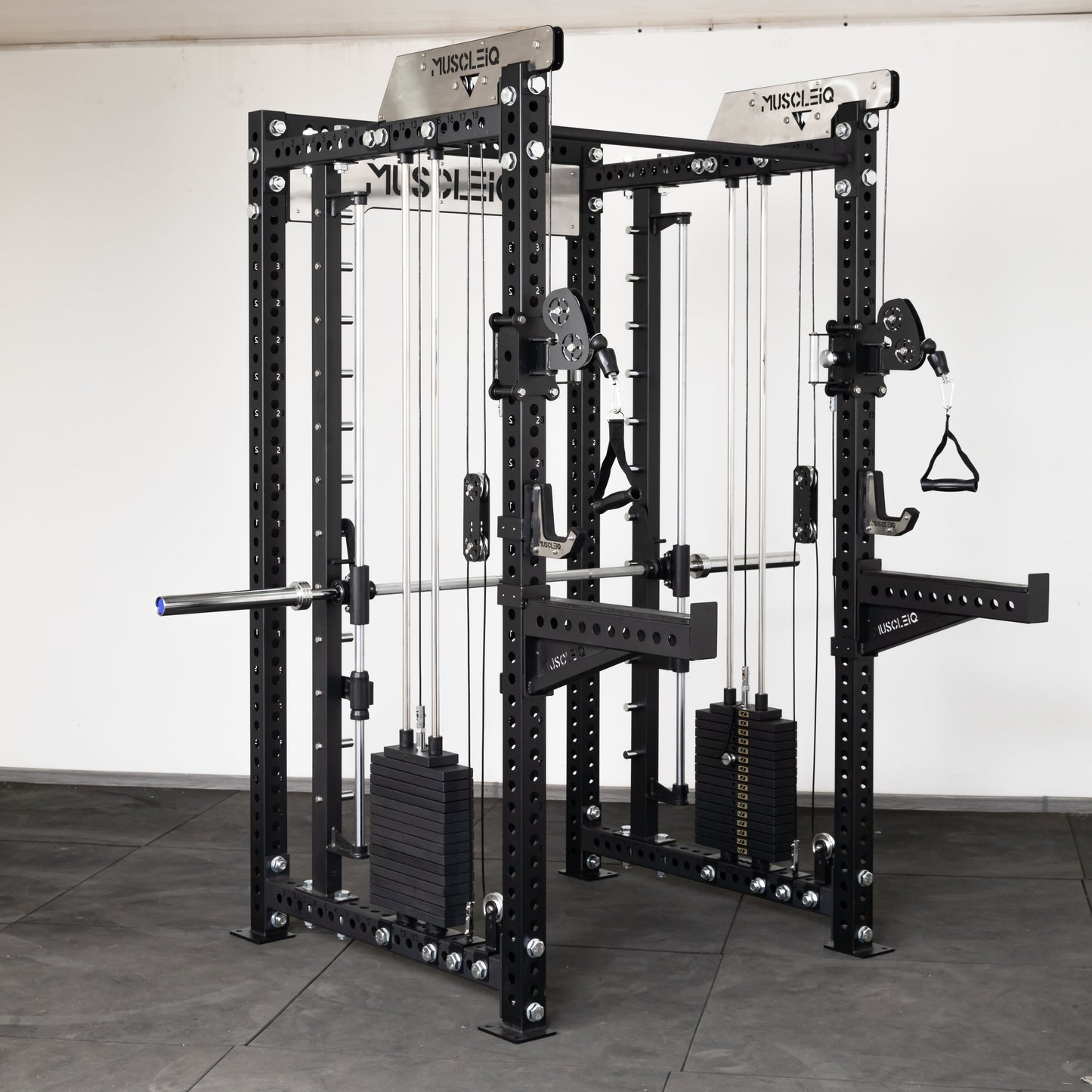

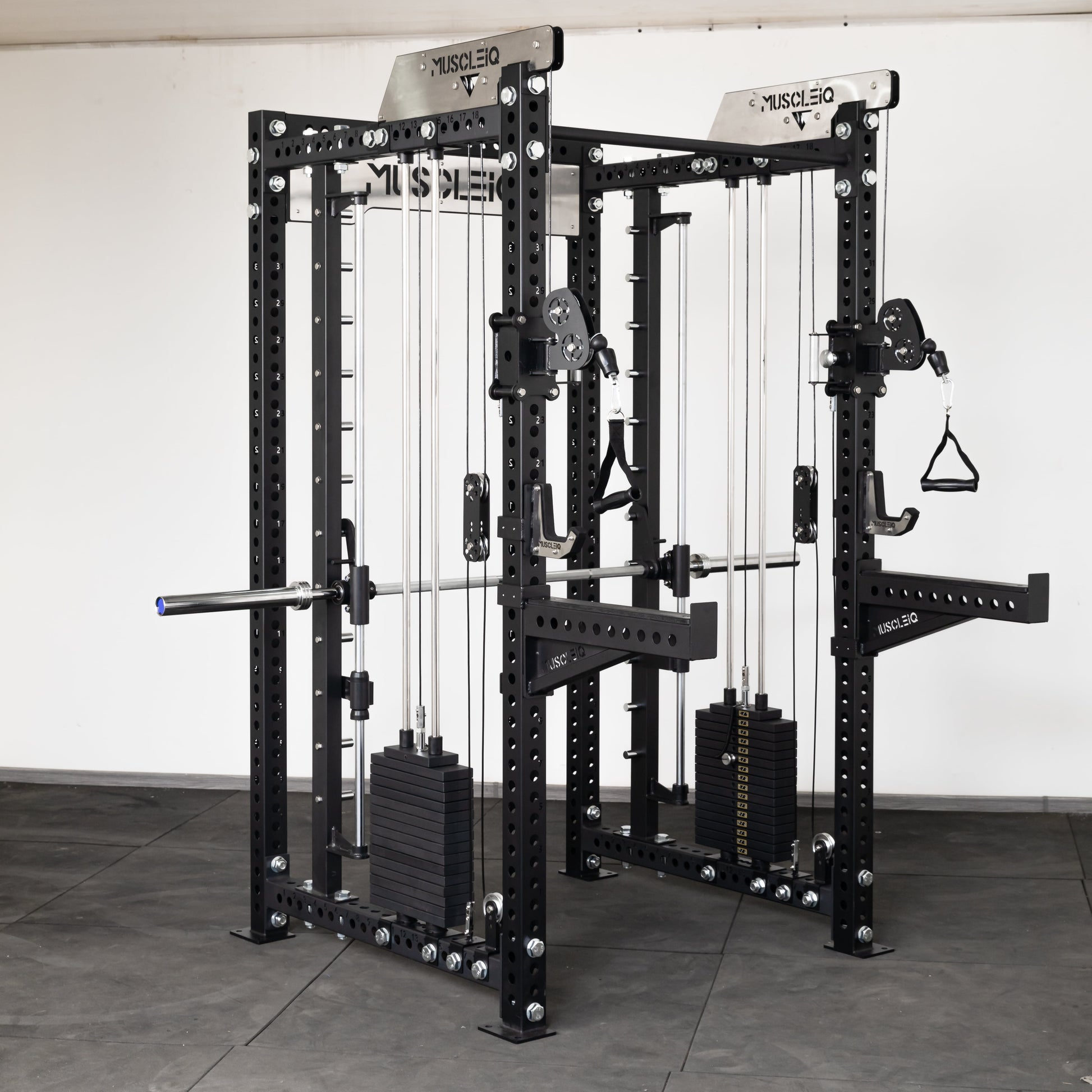

Multi Functional Power Rack
- Fully Customisable SetupAdjust the height, weight stacks, and attachments to perfectly match your space and training style.
- Complete Full-Body TrainingPress, pull, squat, row, curl and more — one machine covers nearly every strength exercise.
- Heavy-Duty & Stable BuildA robust frame and Smith machine guidance provide the strength and safety needed for serious lifting.
- Smooth, Controlled Cable MovementDual pulleys deliver consistent resistance and fluid motion for safer, more effective workouts.
- All-in-One Training System
- Heavy-Duty Commercial Frame
- Smooth & Customisable Cable System
- Fully Adjustable to Fit Your Space & Training
- 5-year
frame warranty - 30-day
returns - UK-based
support - 50,000+
athletes
Overview

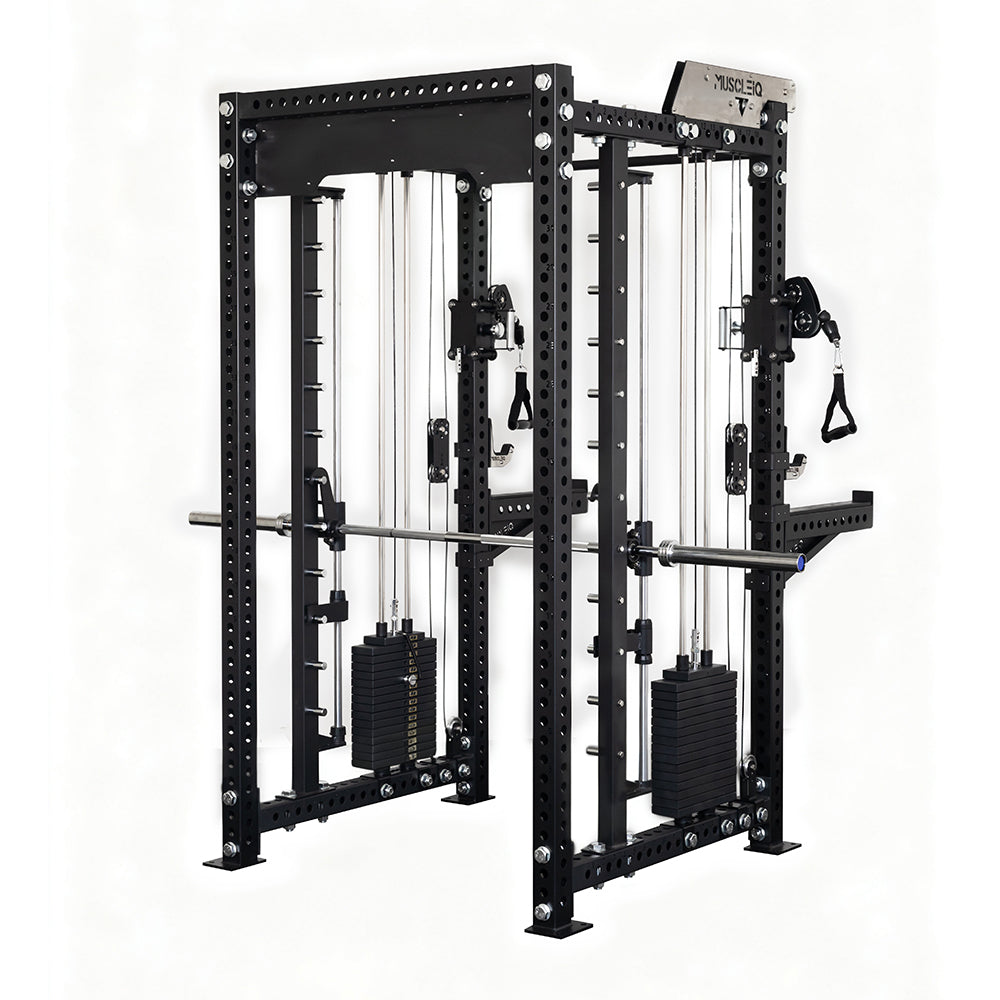

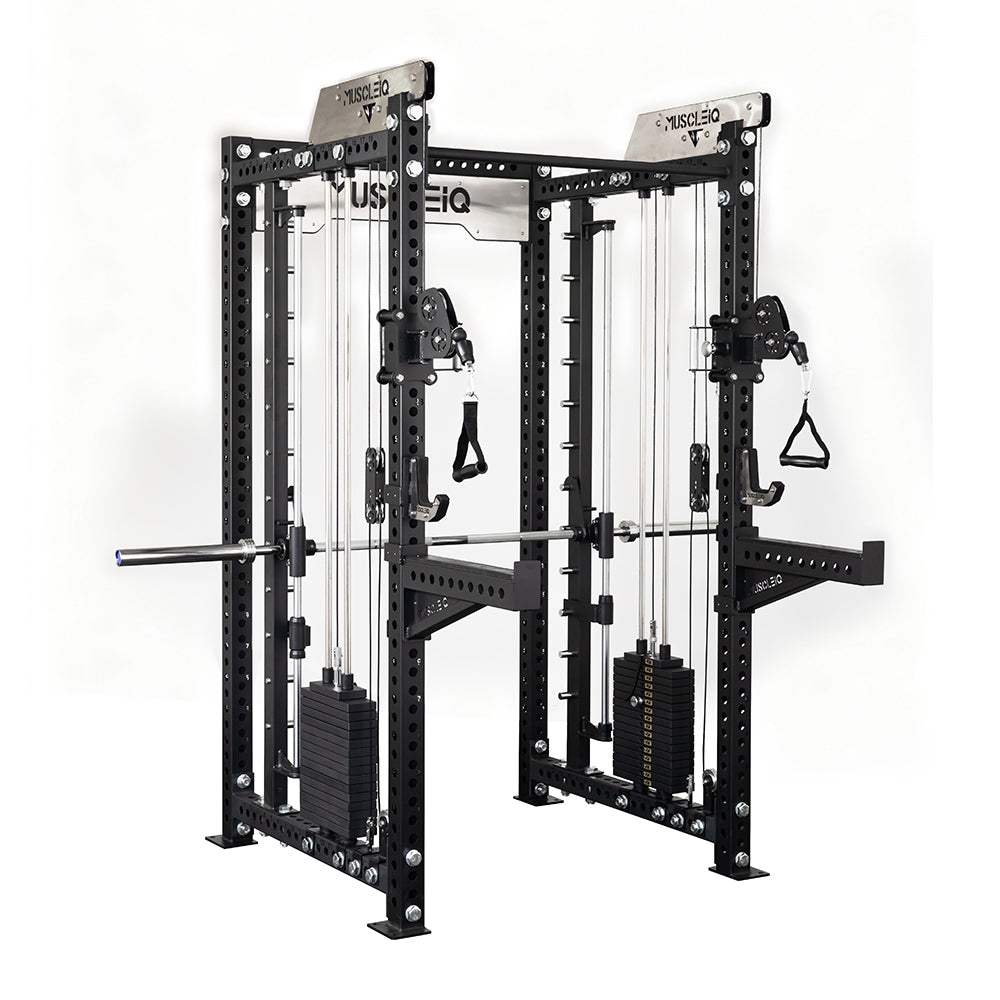

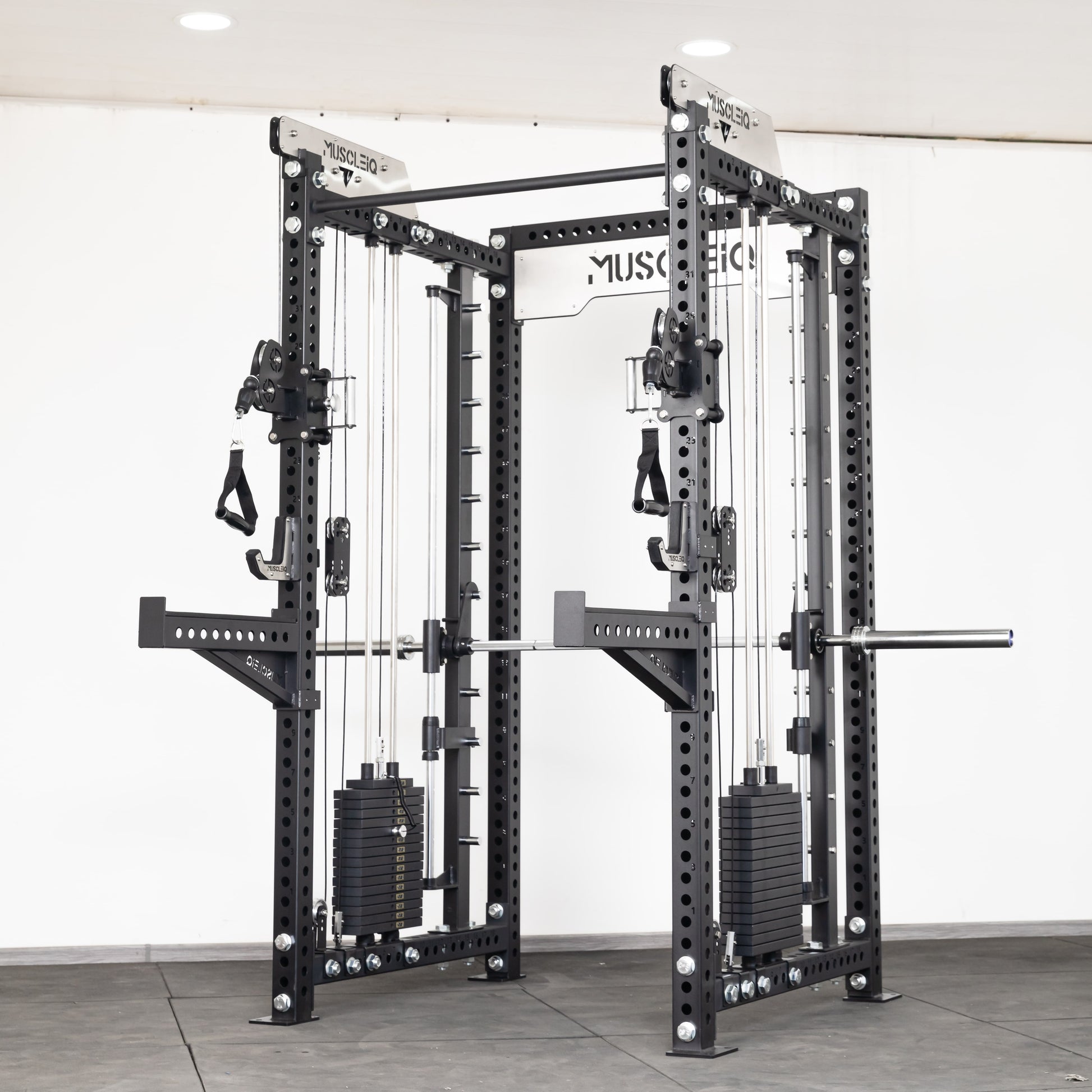

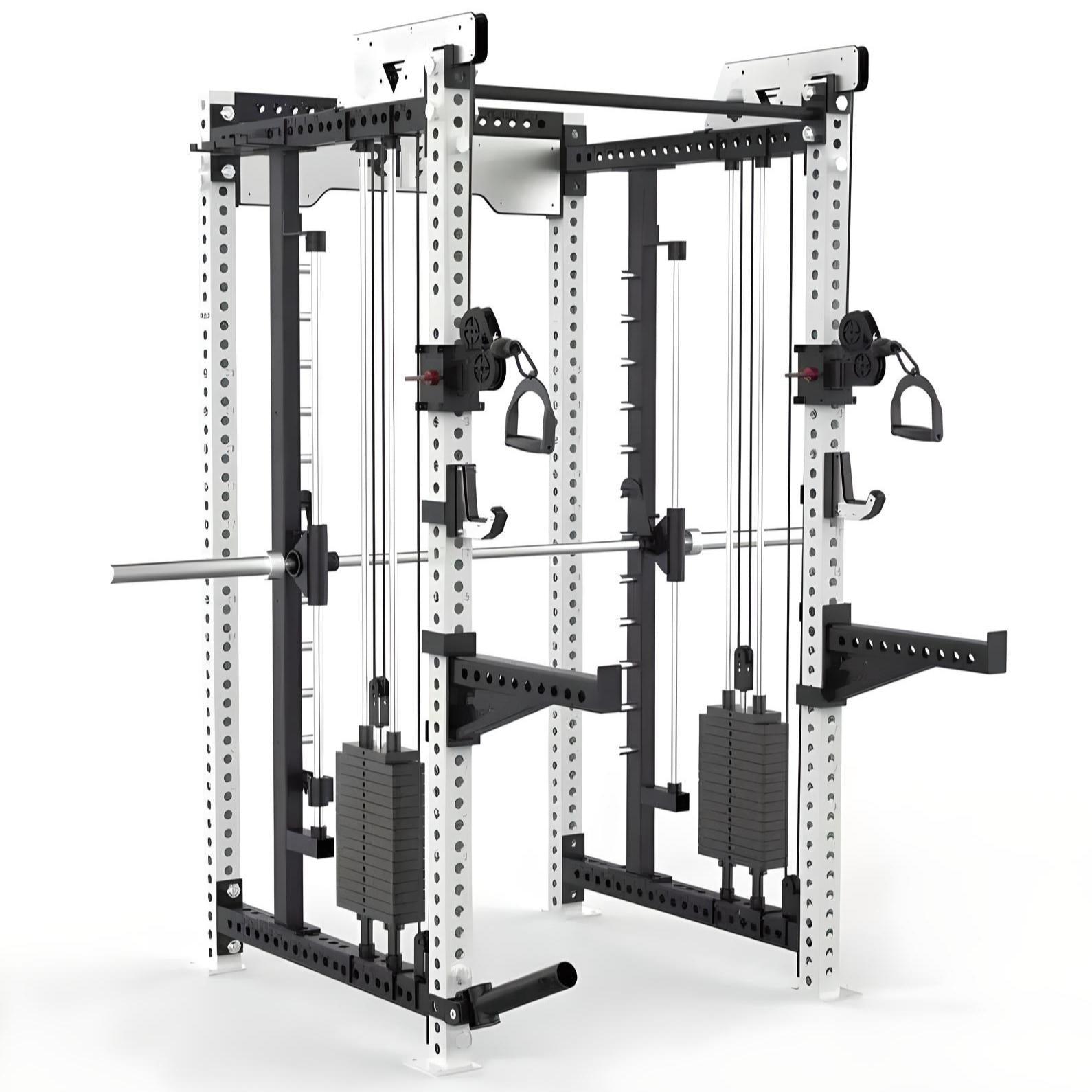

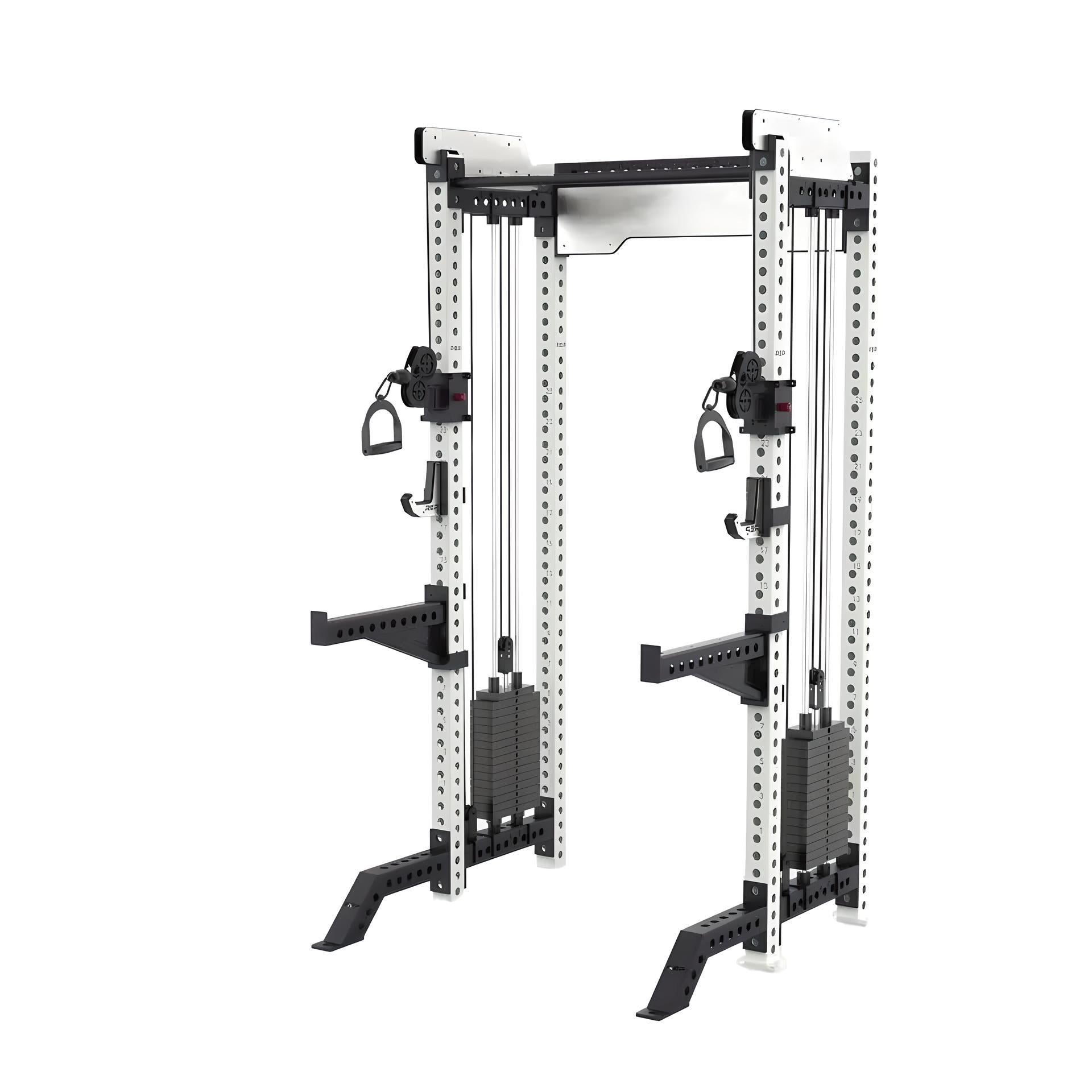

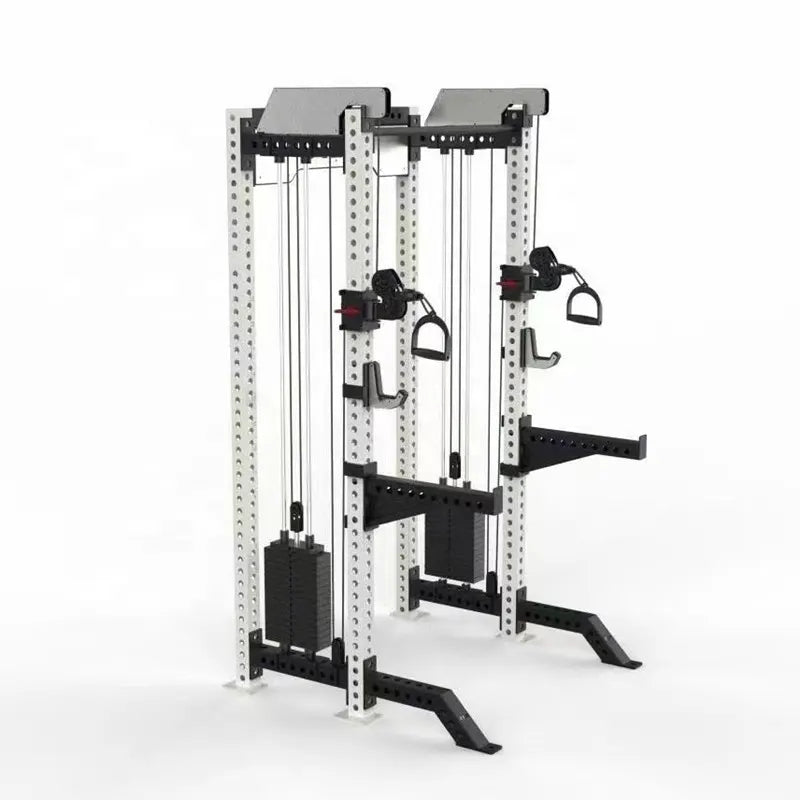

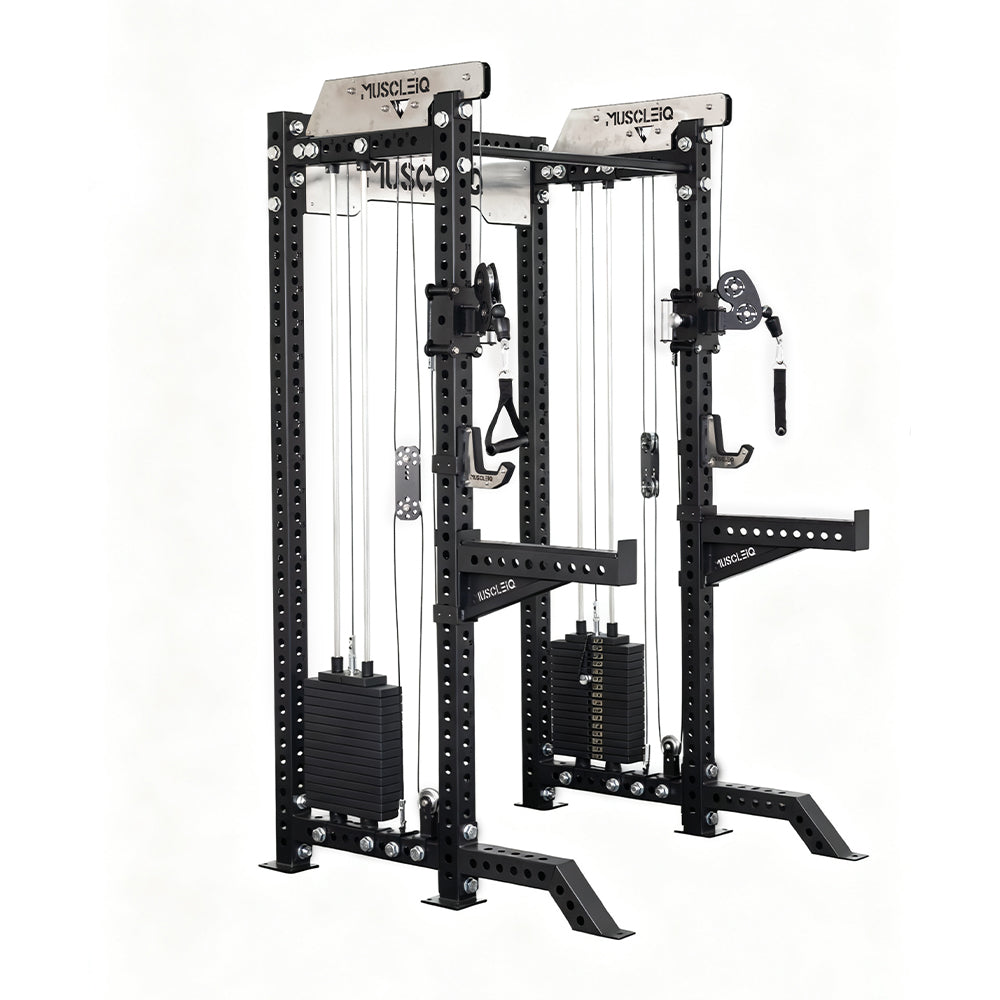

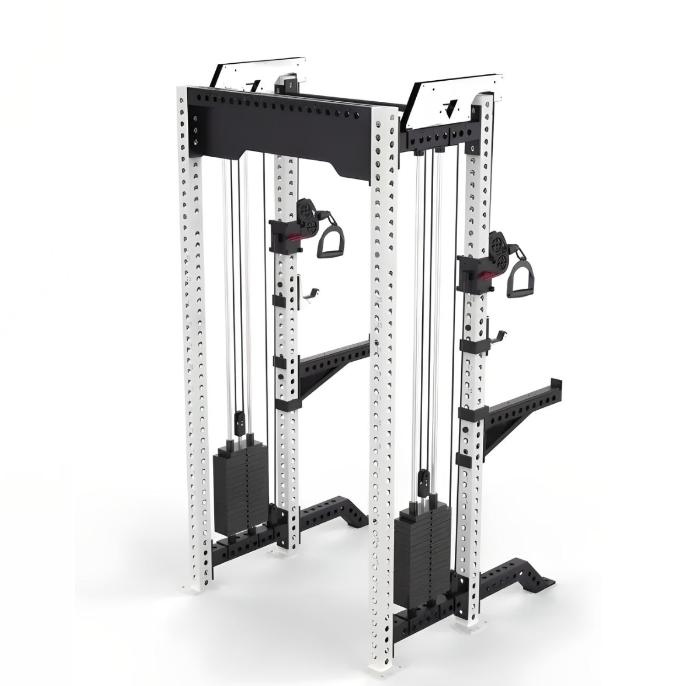

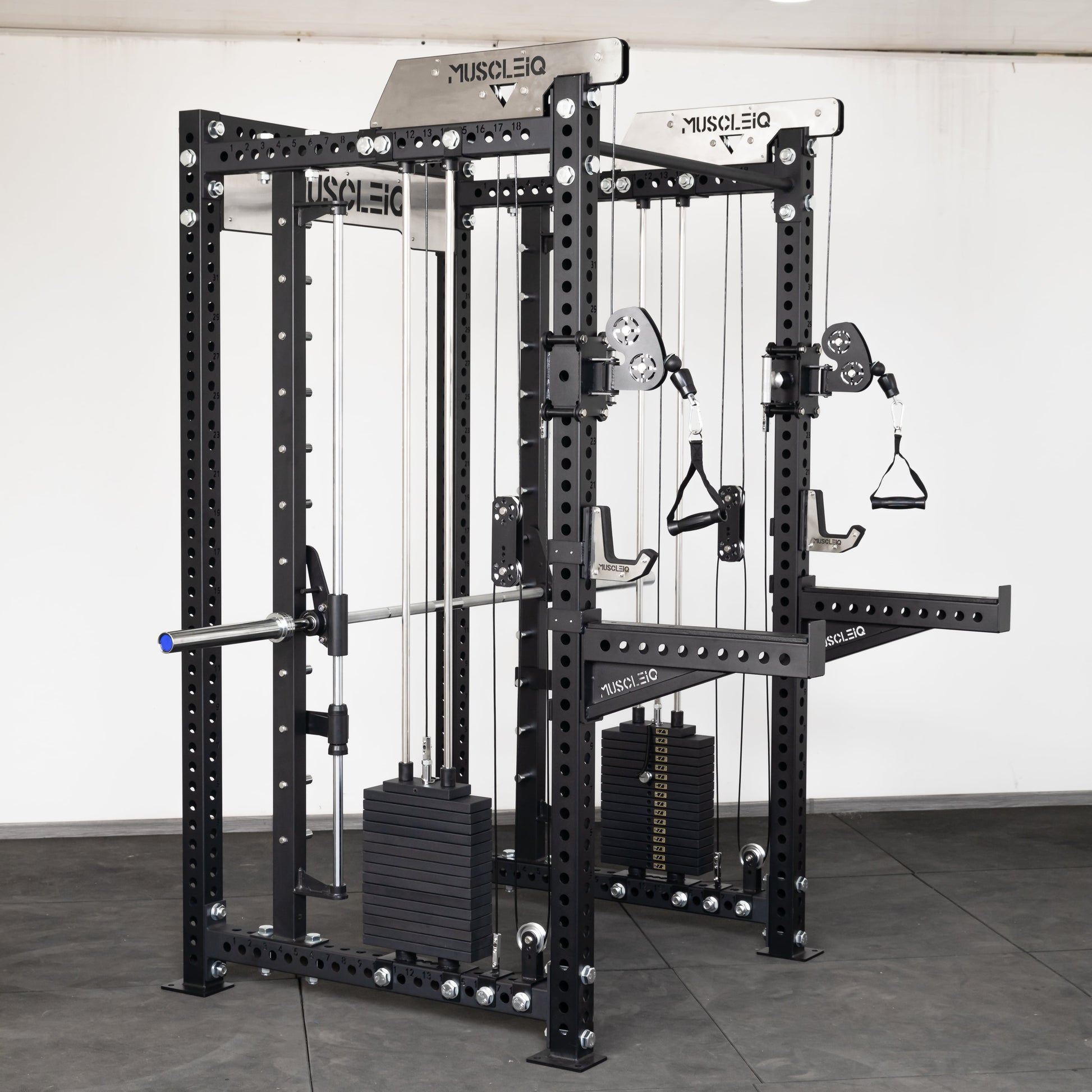

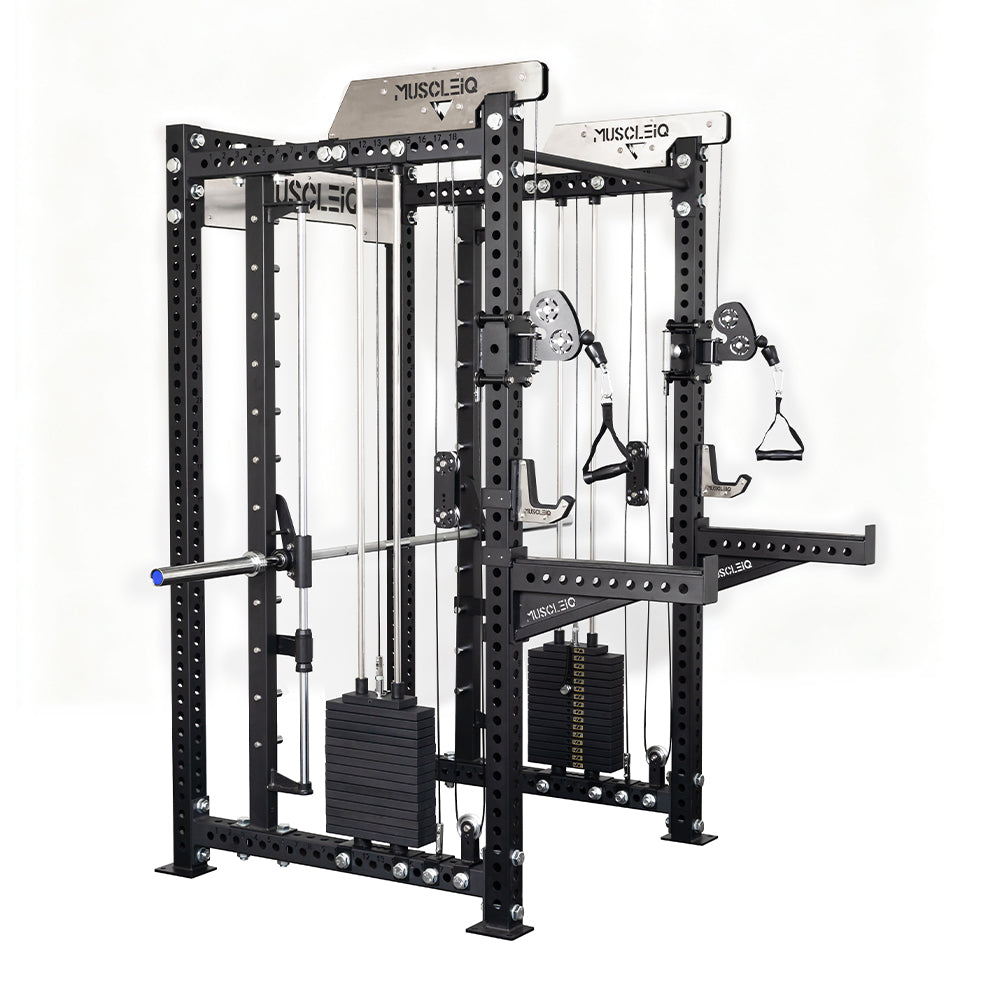

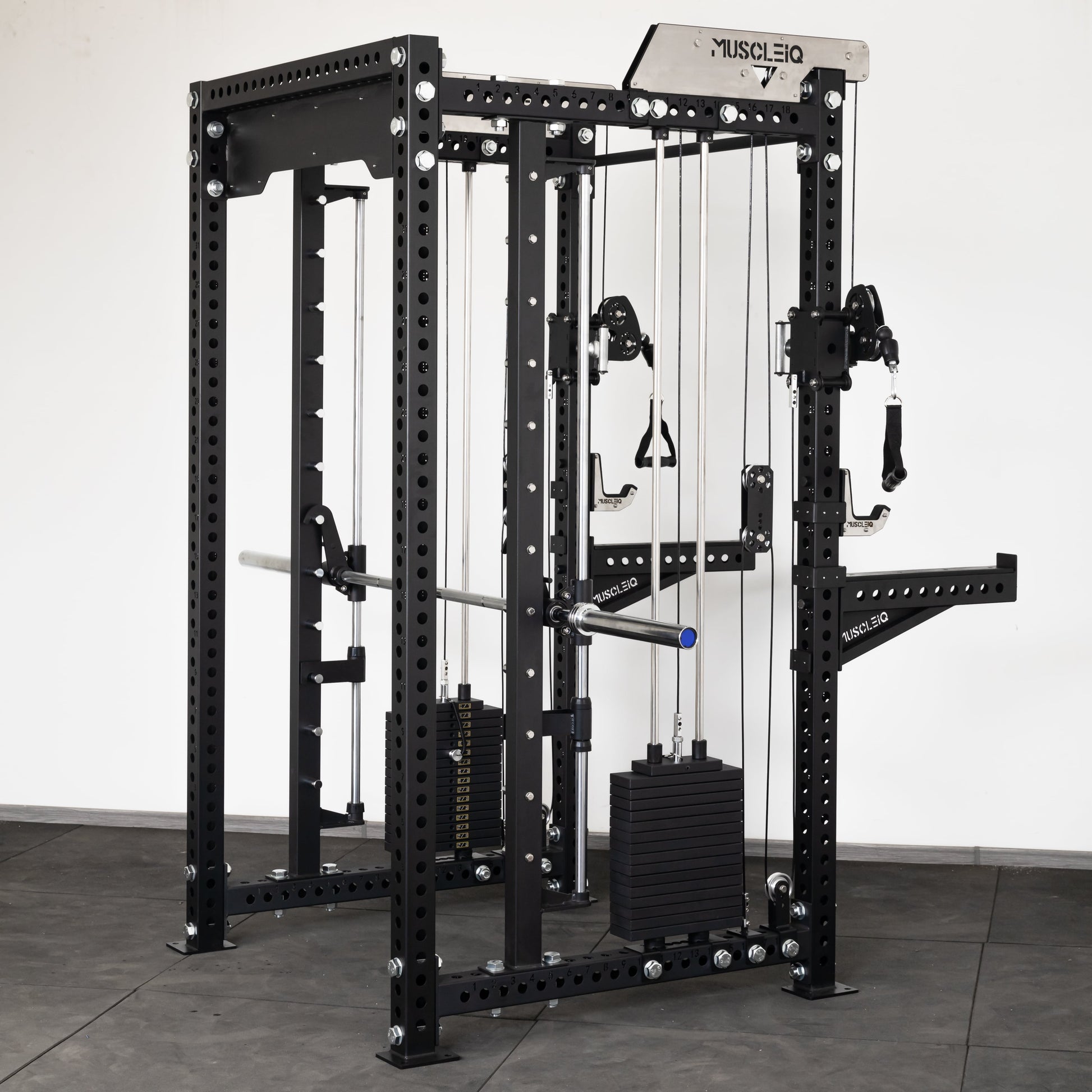

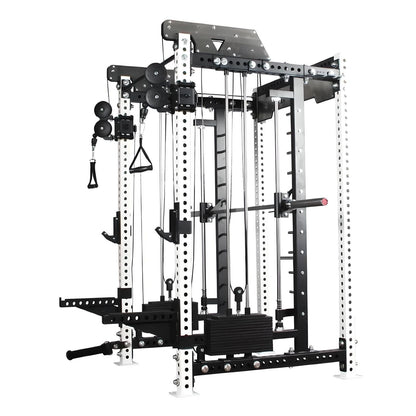

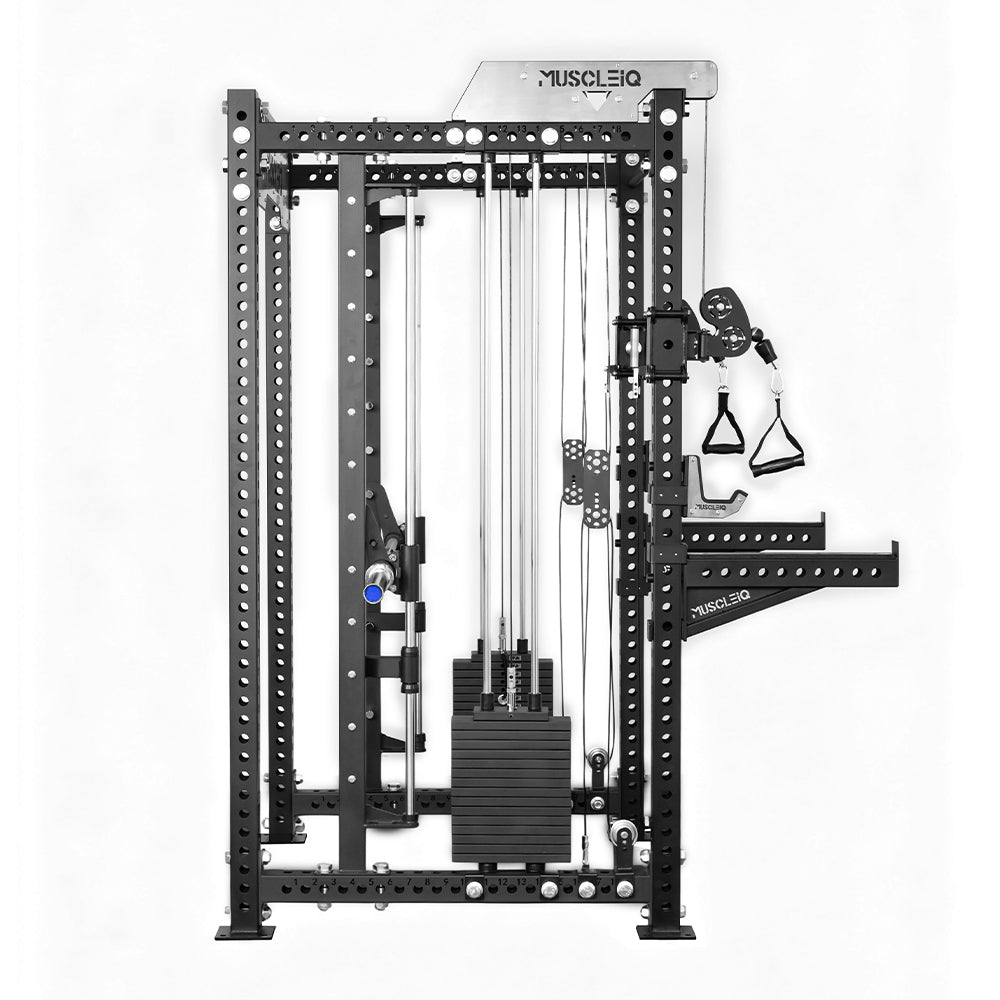

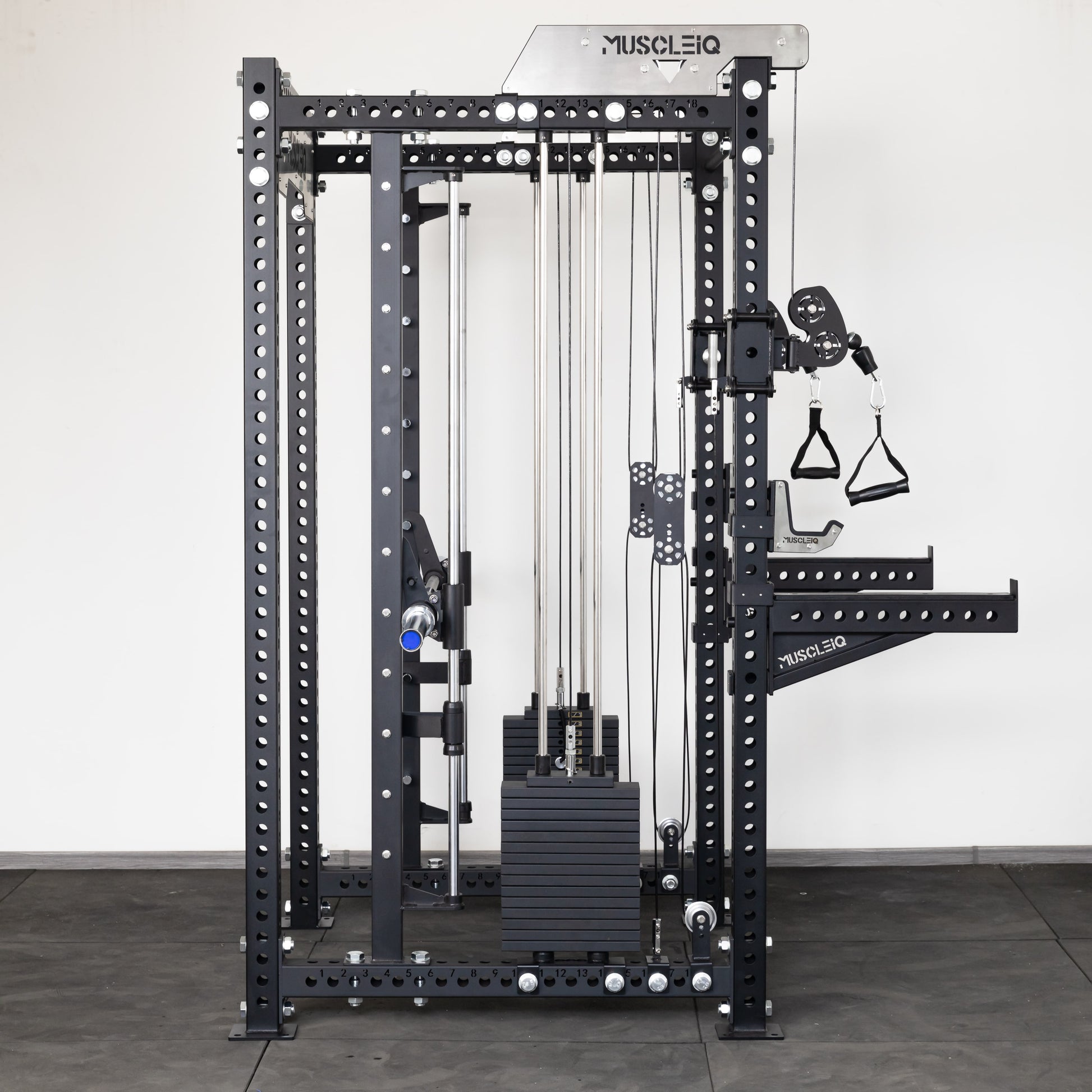

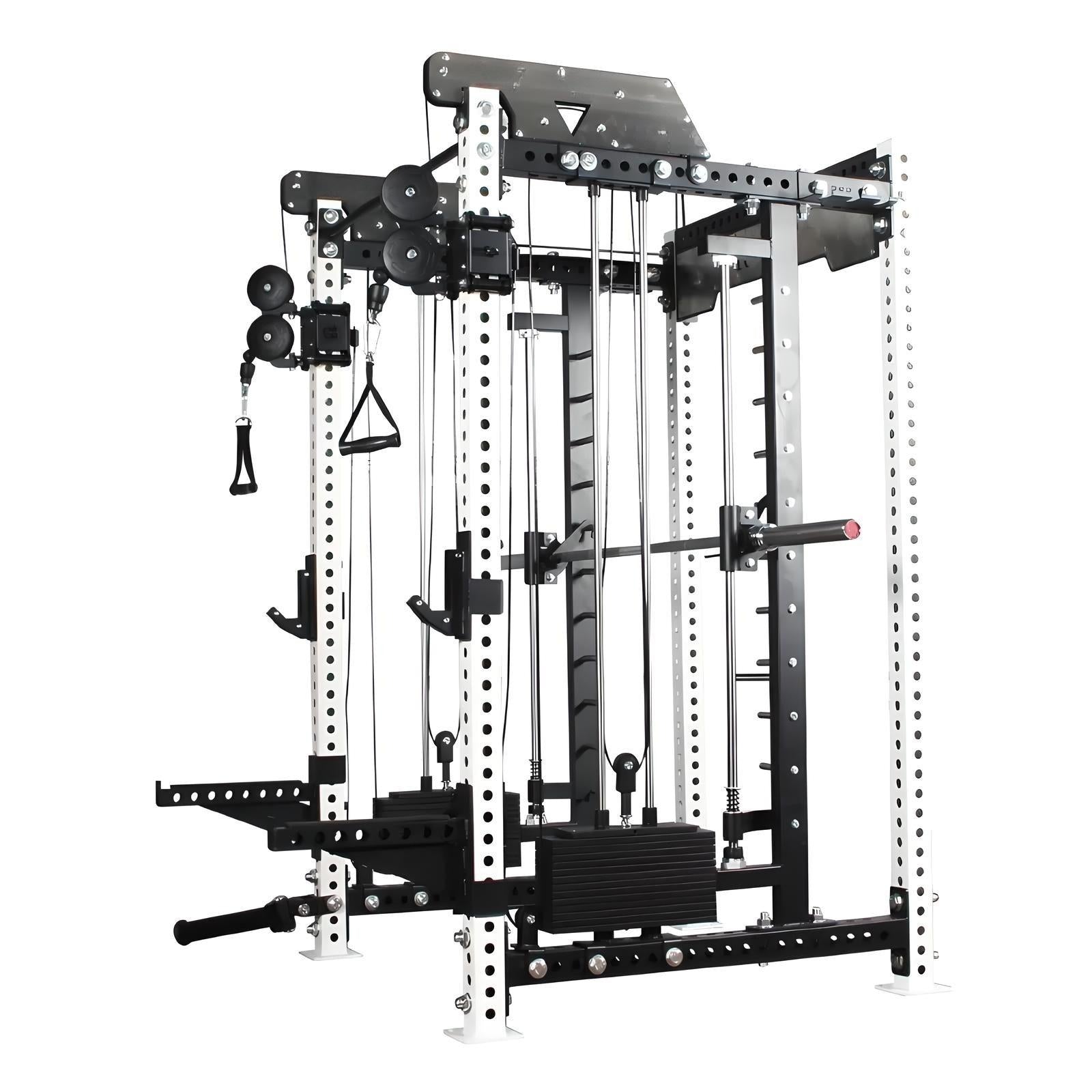

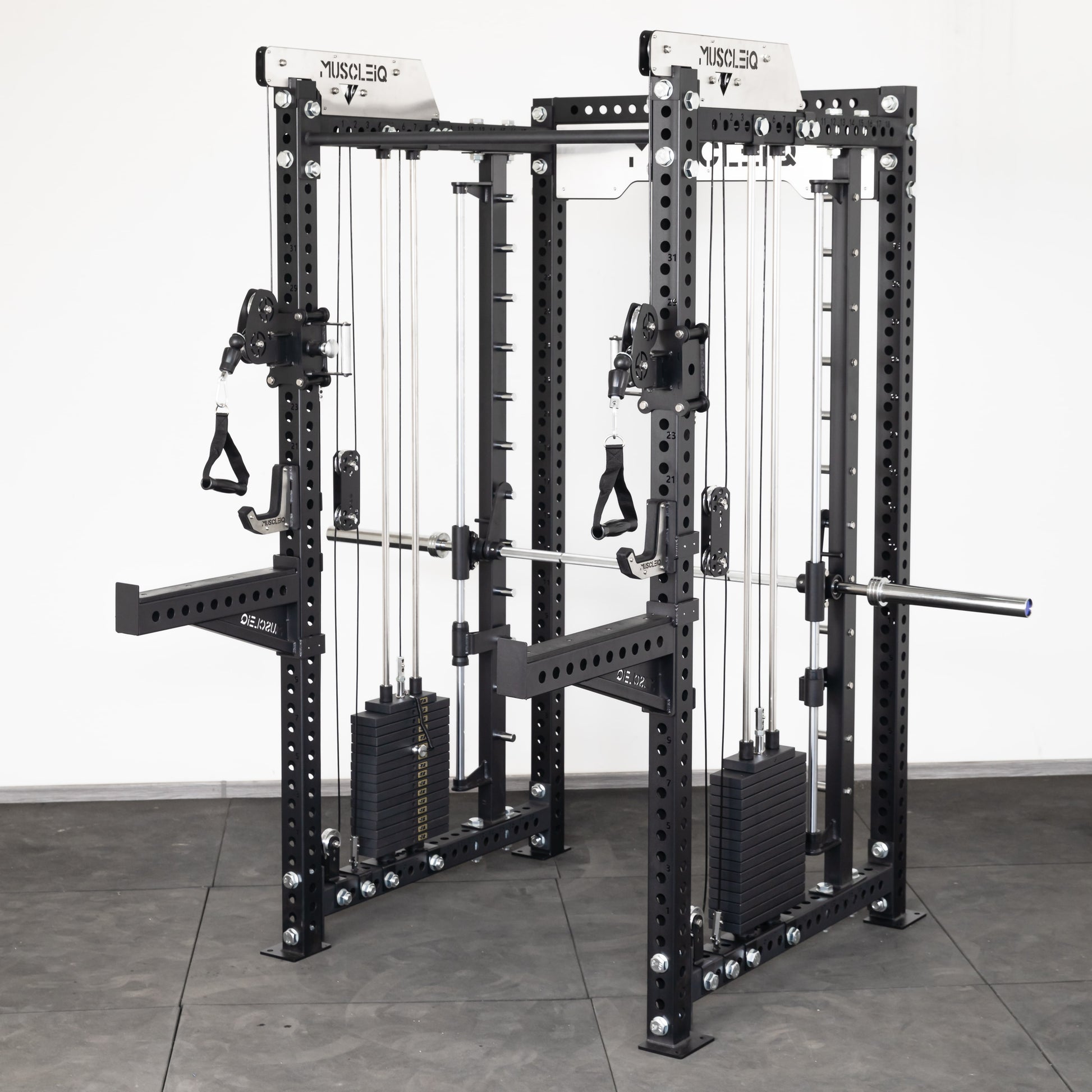

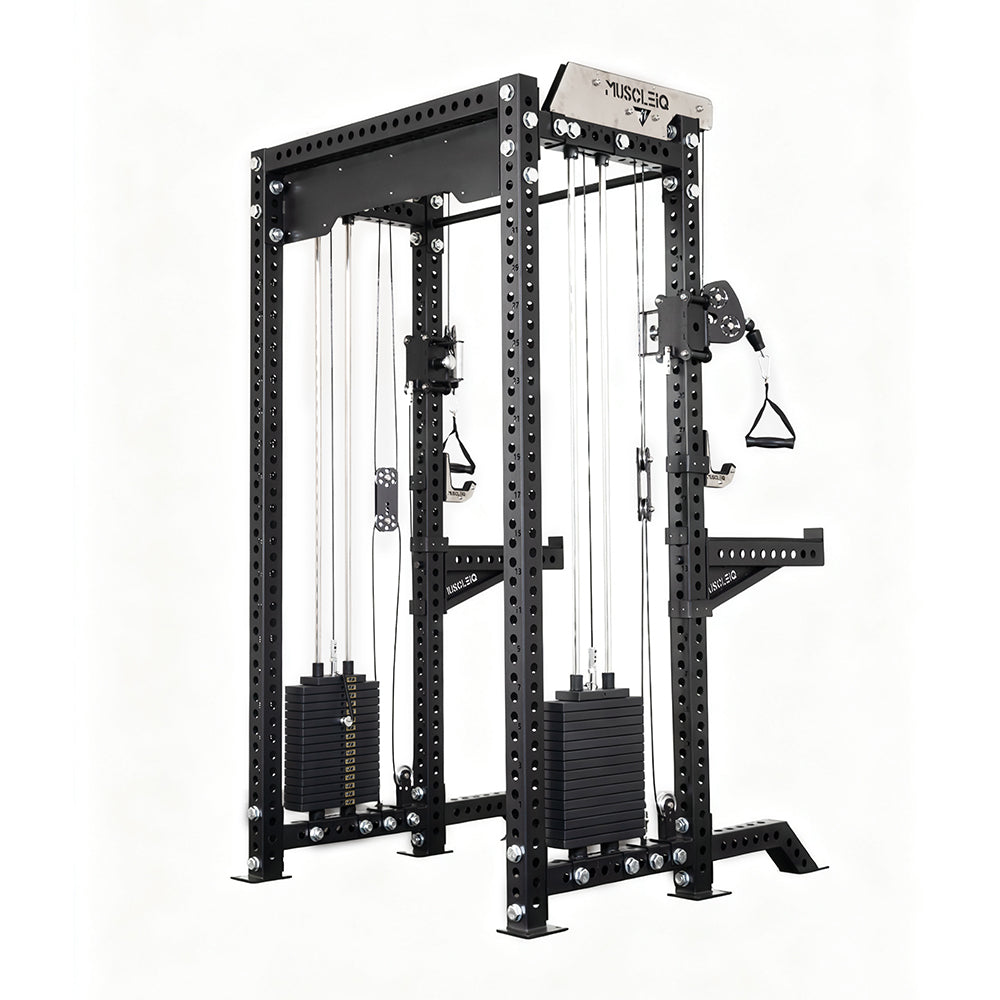

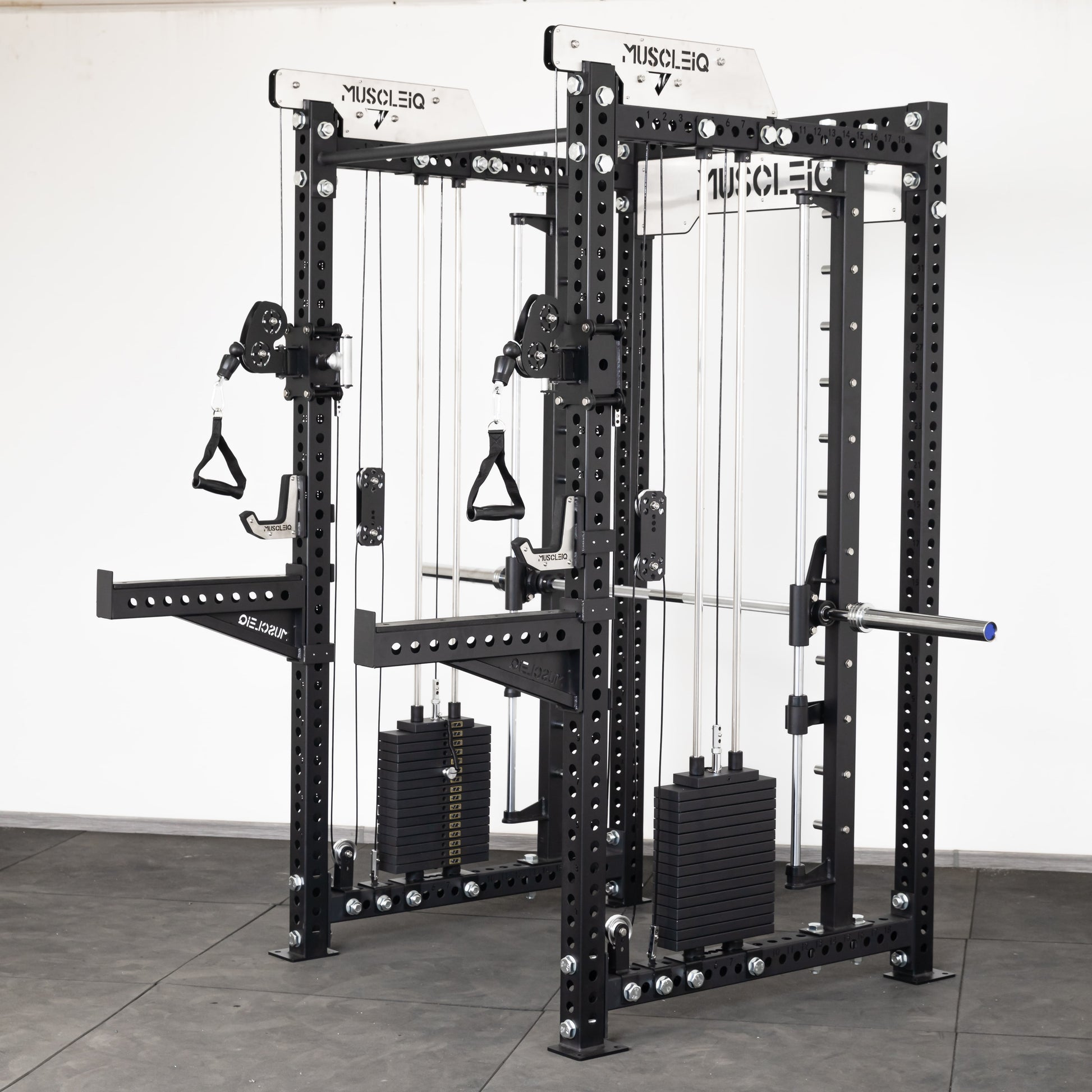

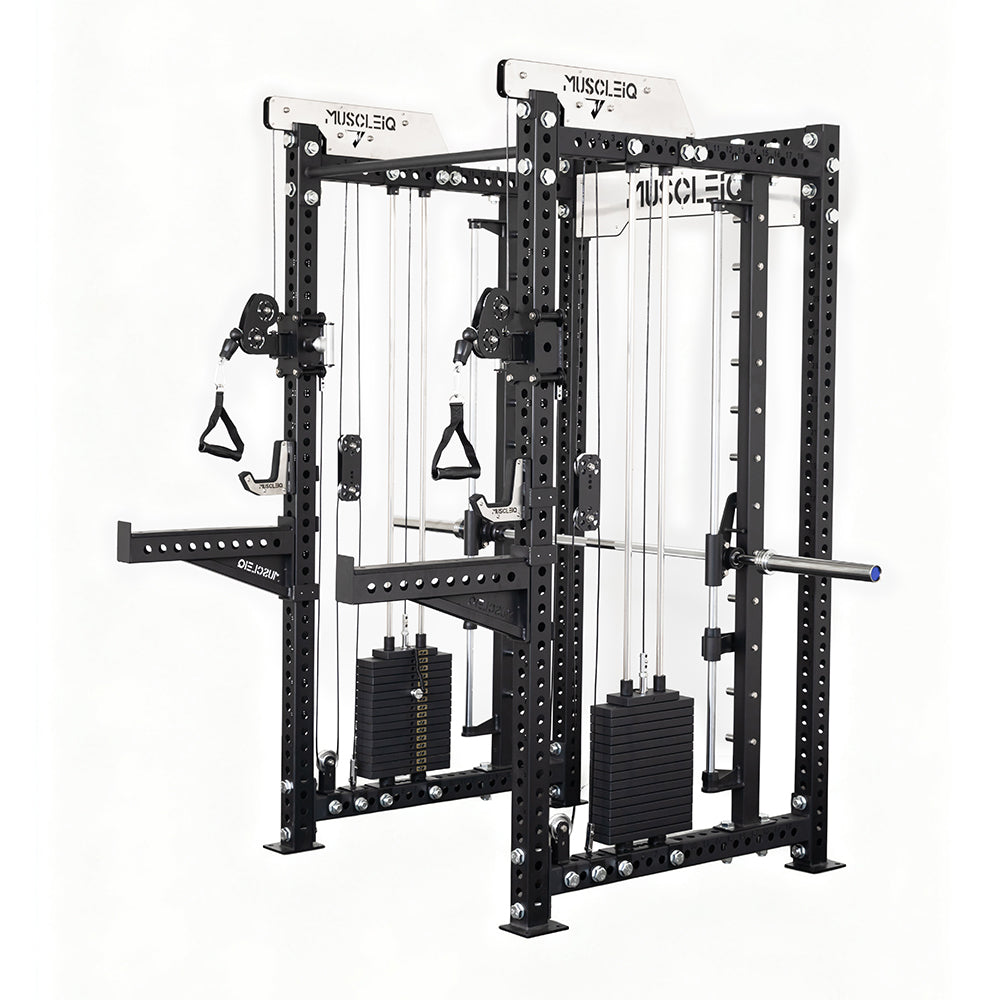

Commercial Fitness Multi-Functional Power Rack Smith Machine with Cables & Weight Stacks
Build your ultimate home or commercial training station with this all-in-one rack. Fully customisable in size and setup, designed for serious strength athletes and home gym enthusiasts.
The Commercial Fitness Multi-Functional Power Rack combines the benefits of a power rack, Smith machine, and cable system into one robust training hub. Built with heavy-duty 75mm x 75mm (3" x 3") steel tubing and 3mm thick, this rack is engineered for stability and performance even under the heaviest loads. Max load 500kg
Combines a power rack, Smith machine and dual adjustable pulley system in one compact training station.
Built with 75mm × 75mm steel tubing and 3mm thick 11-gauge steel for maximum strength and stability, with a maximum load capacity of 500kg.

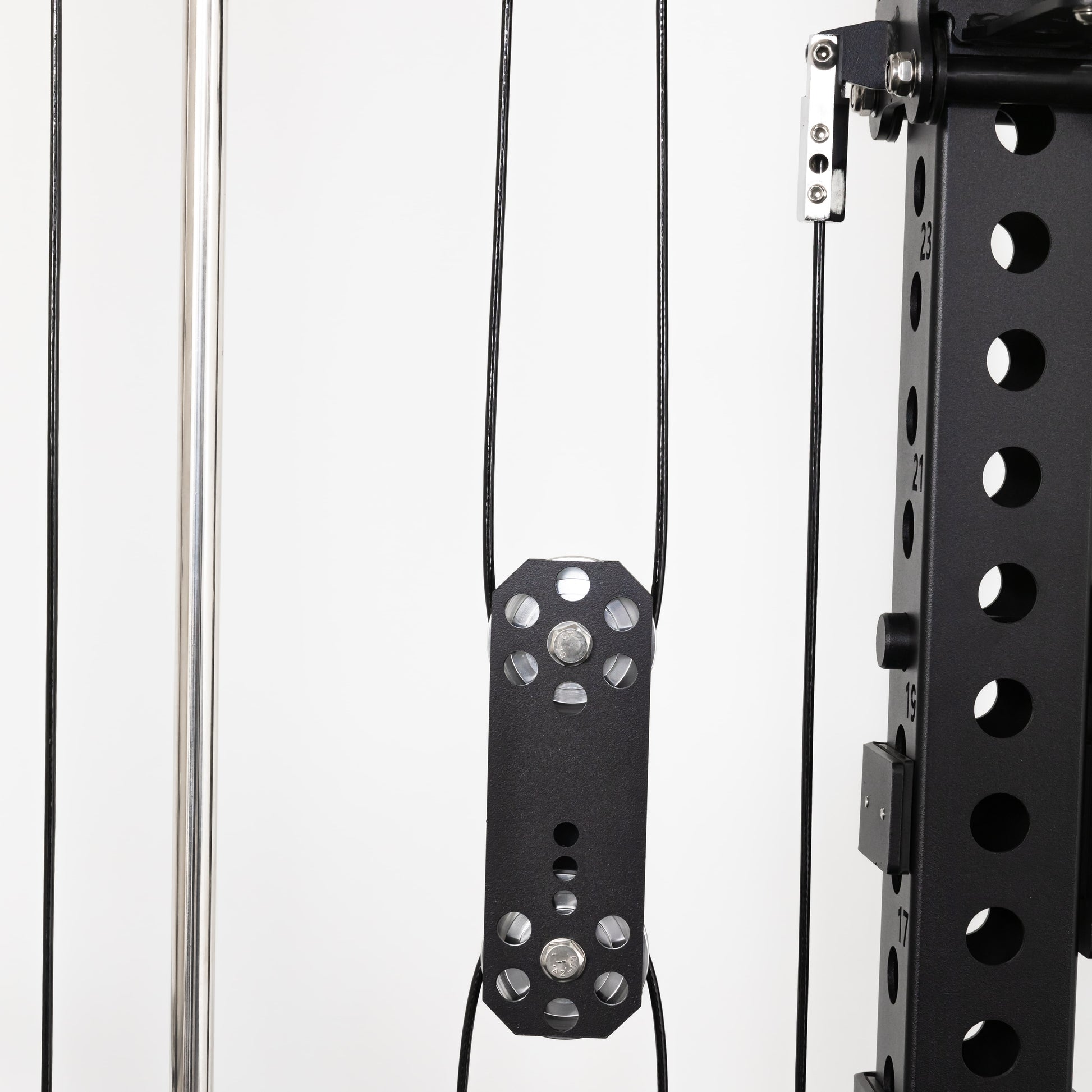

Choose a 1:1 ratio for full-load strength work or a 2:1 ratio for smoother repetitions, higher volume and a more controlled tempo.
The guided 20kg bar and built-in safety stoppers provide stable, repeatable movement—ideal when training alone or pushing sets closer to failure.
Ratios
1:1 Ratio
A 1:1 ratio means you are lifting the full selected load, so 20 kg feels like 20 kg. This makes it ideal for heavy pulling, strength work and direct resistance.
2:1 Ratio
A 2:1 ratio reduces the felt resistance by half, so 20 kg feels like 10 kg. This allows you to train with smoother repetitions, higher volume and a more controlled tempo without sacrificing range of motion.
Example
Simple example: if you set the stack to 60 kg, a 1:1 setup feels like 60 kg in hand, while a 2:1 setup feels like 30 kg. This is helpful for isolation work, such as triceps pushdowns or cable lateral raises, and for longer sets.
This system adapts to any training need, from compound lifts and isolated movements to full-body sessions, delivering elite versatility in a compact footprint.

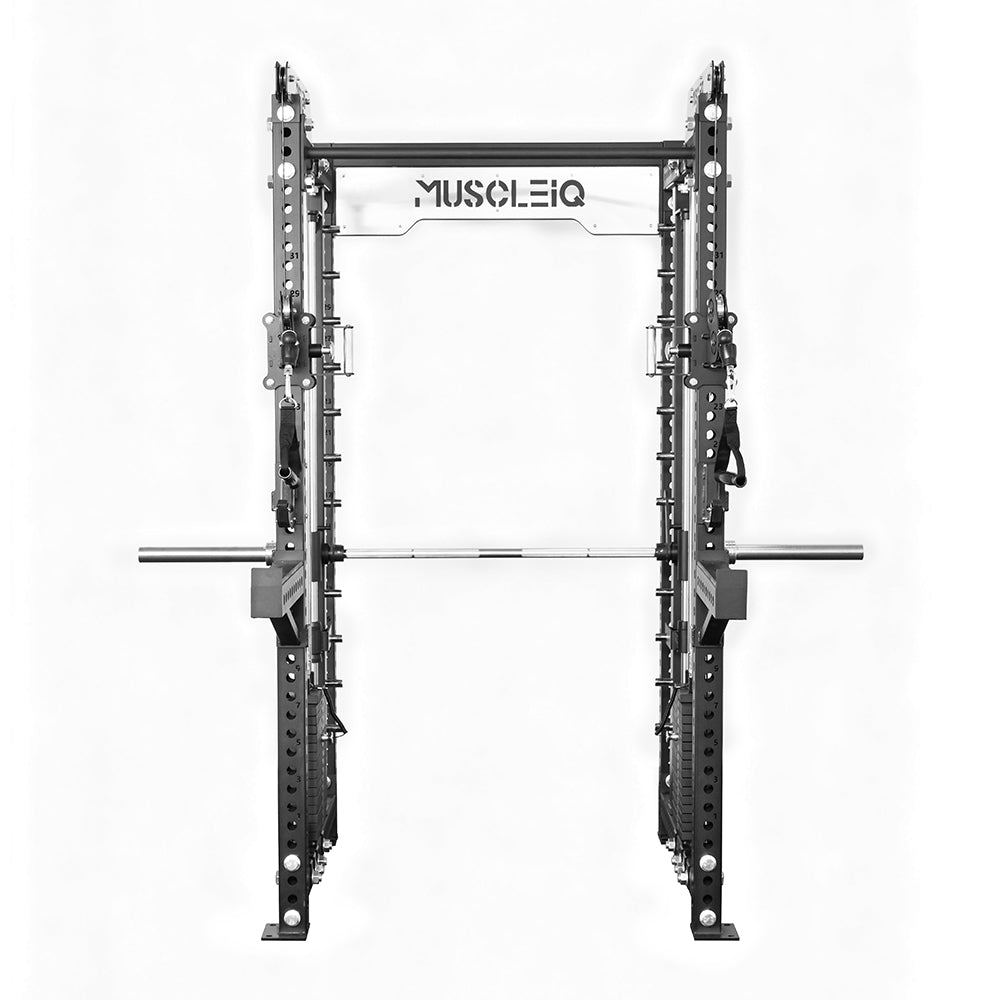

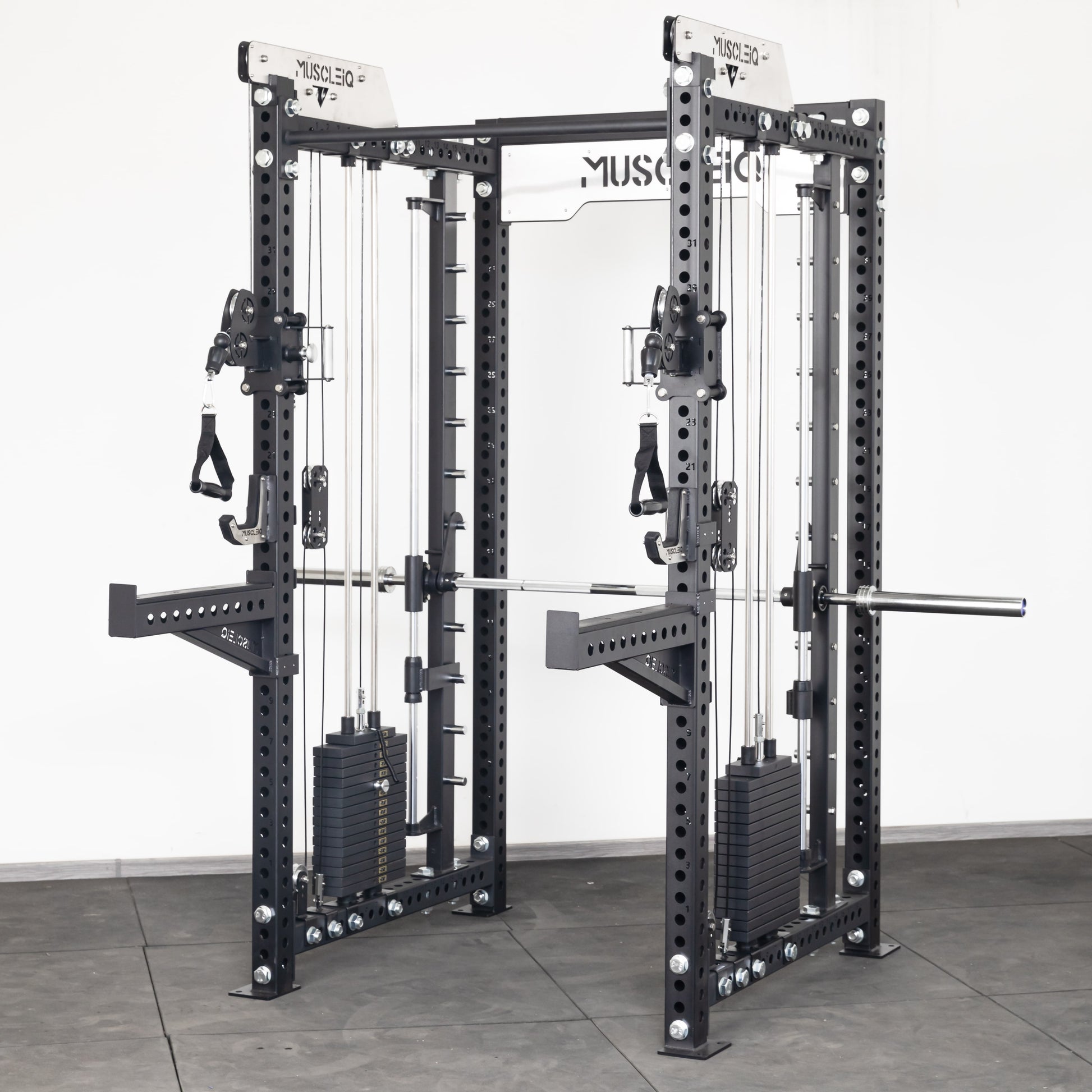

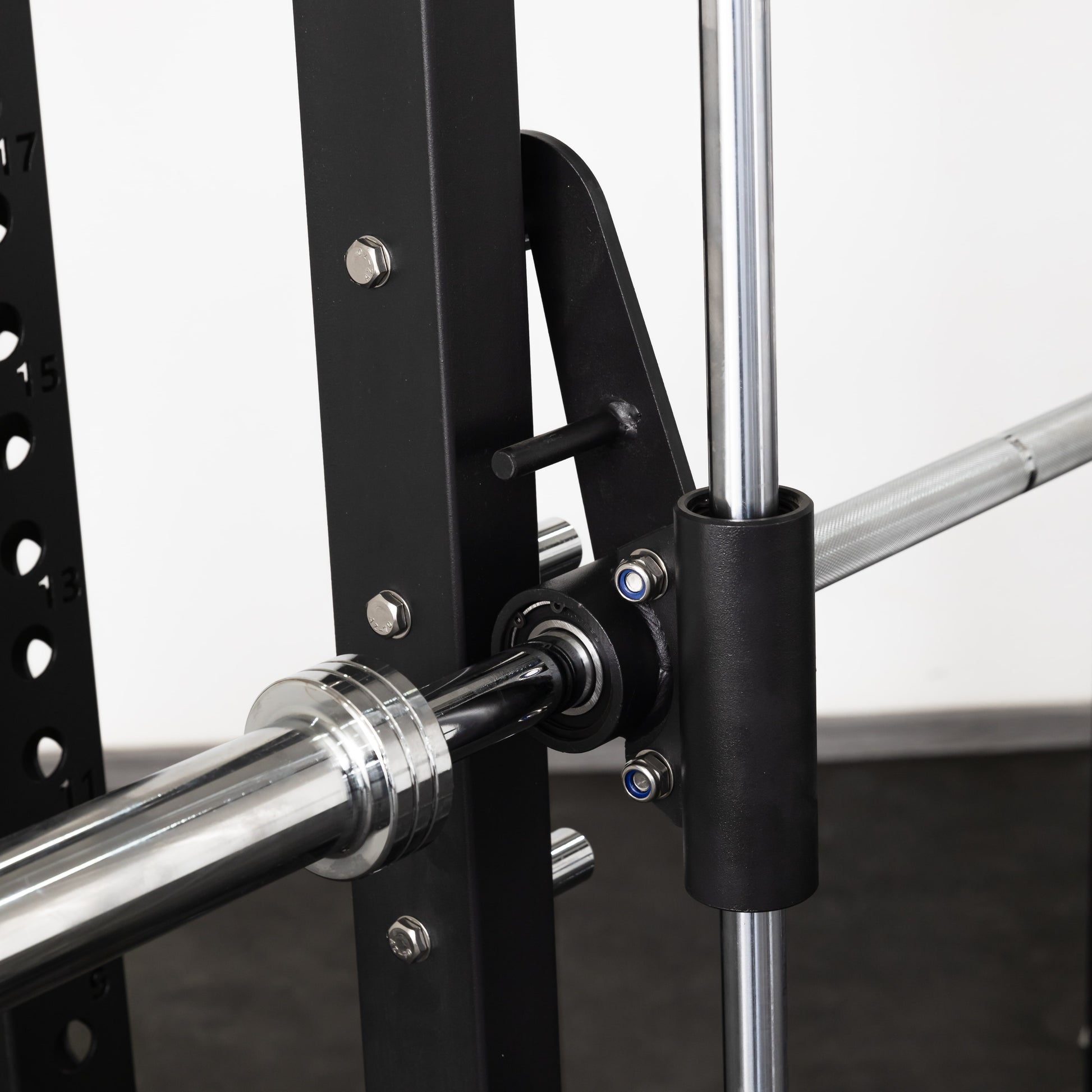

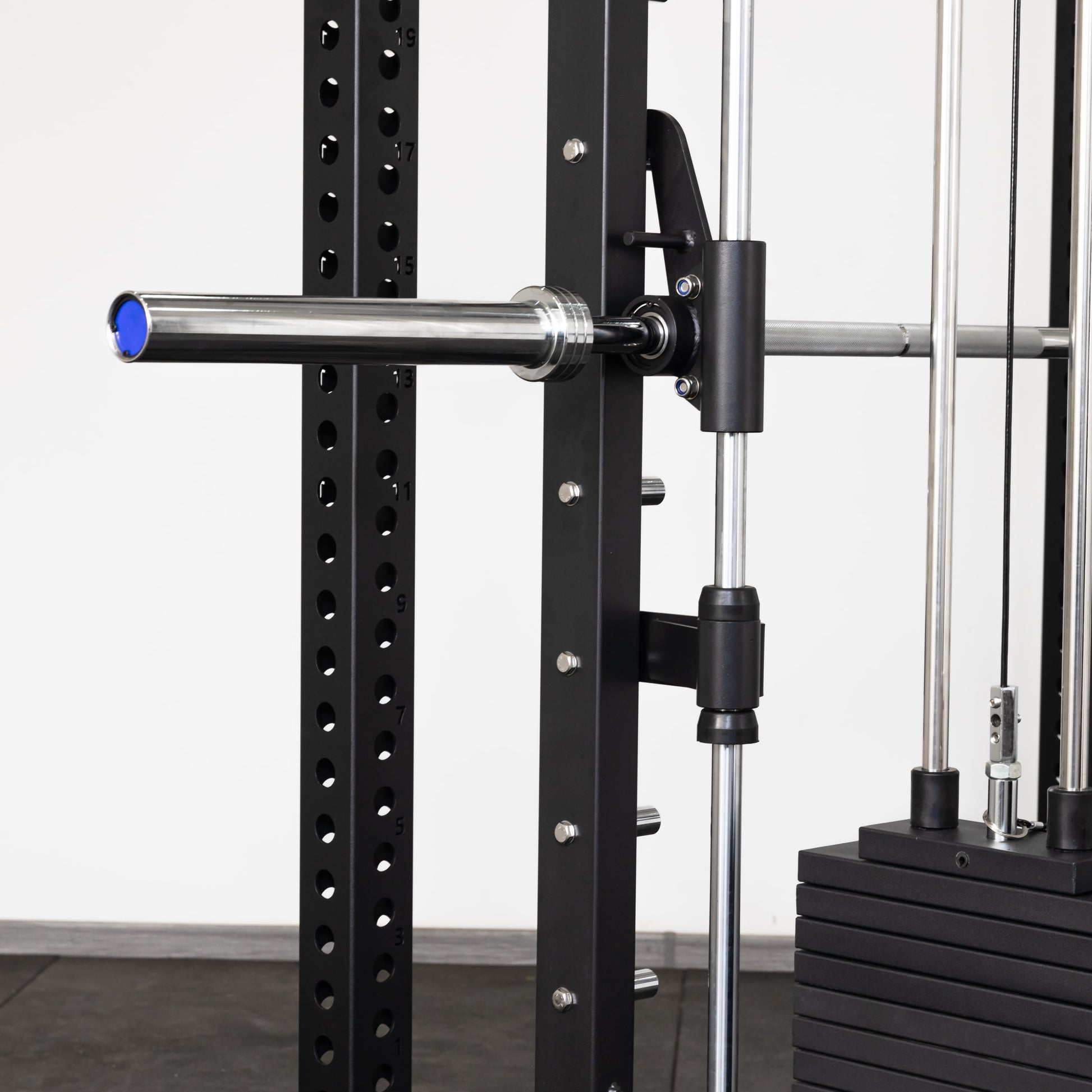

Smith Machine
Designed for safe, stable, and repeatable strength training, the Smith Machine uses a guided bar path to keep your lifts controlled—ideal when training alone or when you want consistent technique across every rep.
- More confidence under load: Built-in guidance supports controlled squats, presses, rows, and accessory lifts.
- Cleaner progress tracking: A fixed movement path helps keep range of motion consistent session to session.
- Great for hypertrophy work: Easier to push sets closer to failure with less setup and less need for a spotter.

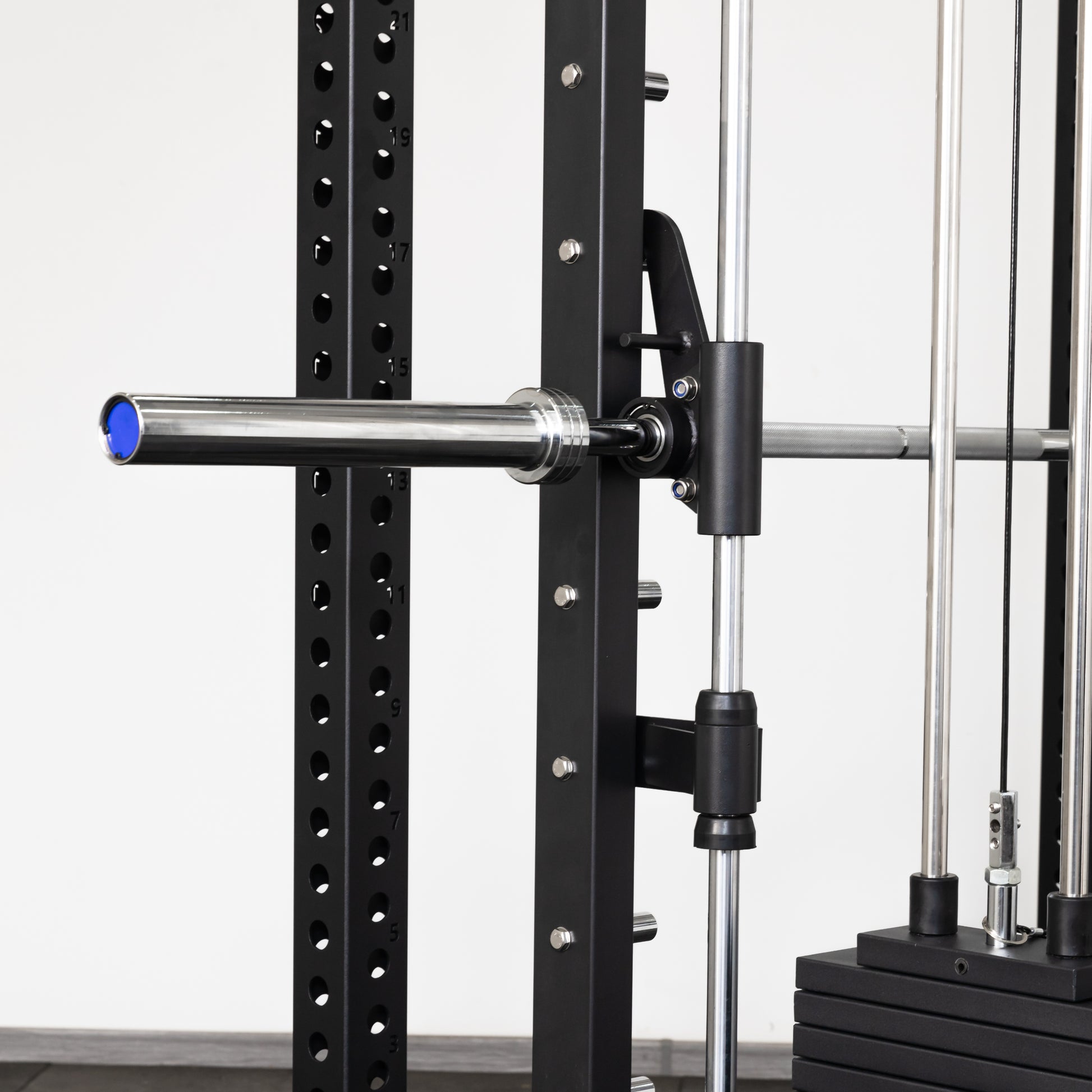

Bar details
7ft bar, 20kg, compatible with standard Olympic plates; smooth guided travel for predictable feel on every rep.
Training
How to use
Train every major muscle group with this all-in-one power rack system:

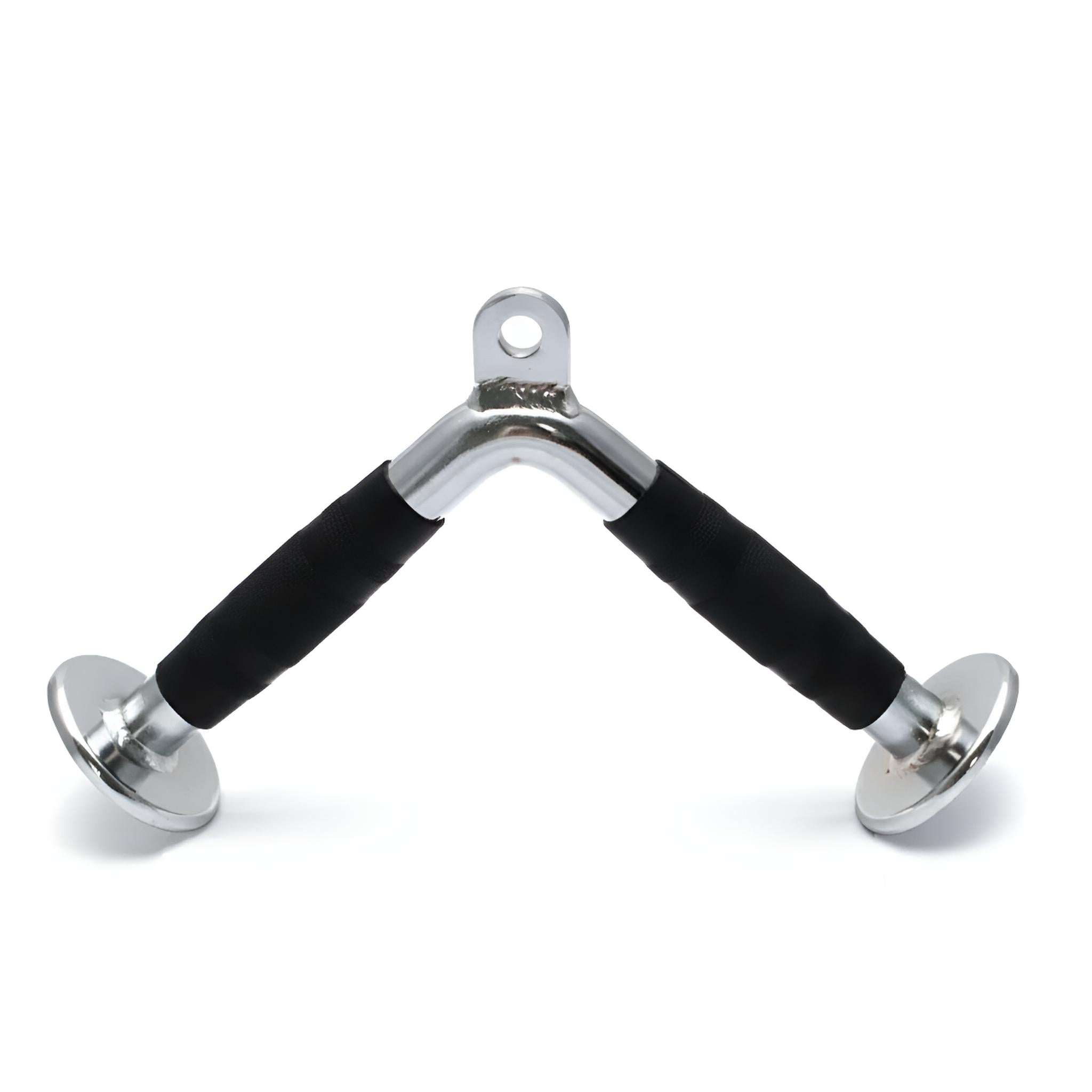

- Chest & Triceps: Bench presses, Smith machine presses and tricep pushdowns to build upper-body strength and pressing power.
- Back & Posture: Lat pulldowns, low rows and pull-ups to strengthen your back, improve posture and build a solid upper frame.
- Legs & Glutes: Squats, deadlifts and accessory lower-body work to develop strength, power and muscle through the legs and glutes.
- Arms & Shoulders: Cable curls, accessory raises and pressing variations to build arm size and well-rounded shoulder strength.
- Core & Functional Strength: Use free-weight and cable movements for stability, control and full-body conditioning.
Included
What's in the box
- 2 × Front Stabilisers (Power Rack Only): Provide extra stability and support for the rack during heavy lifts.

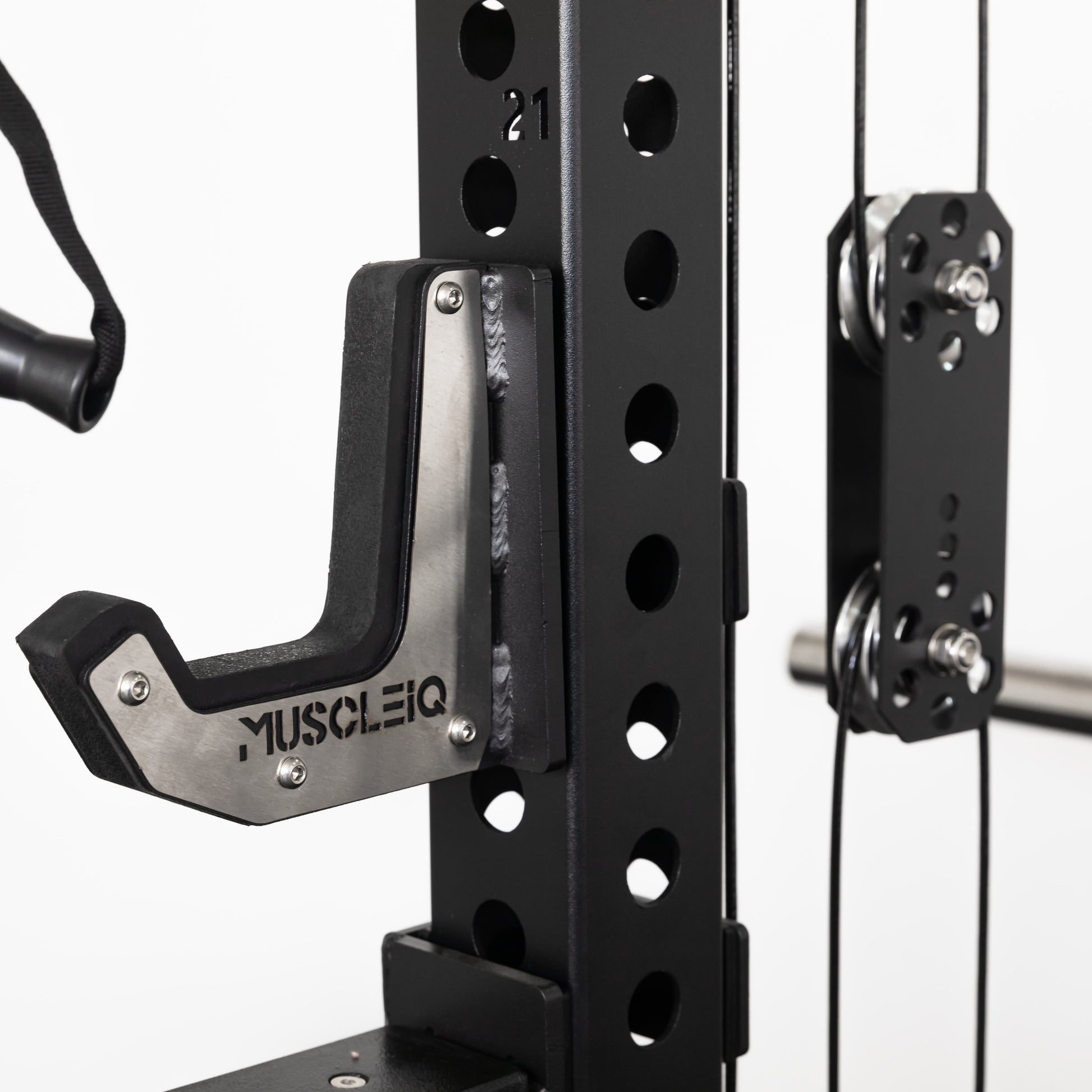

- 2 × Sandwich J-Cups: Securely hold your barbell while protecting the knurling from damage.

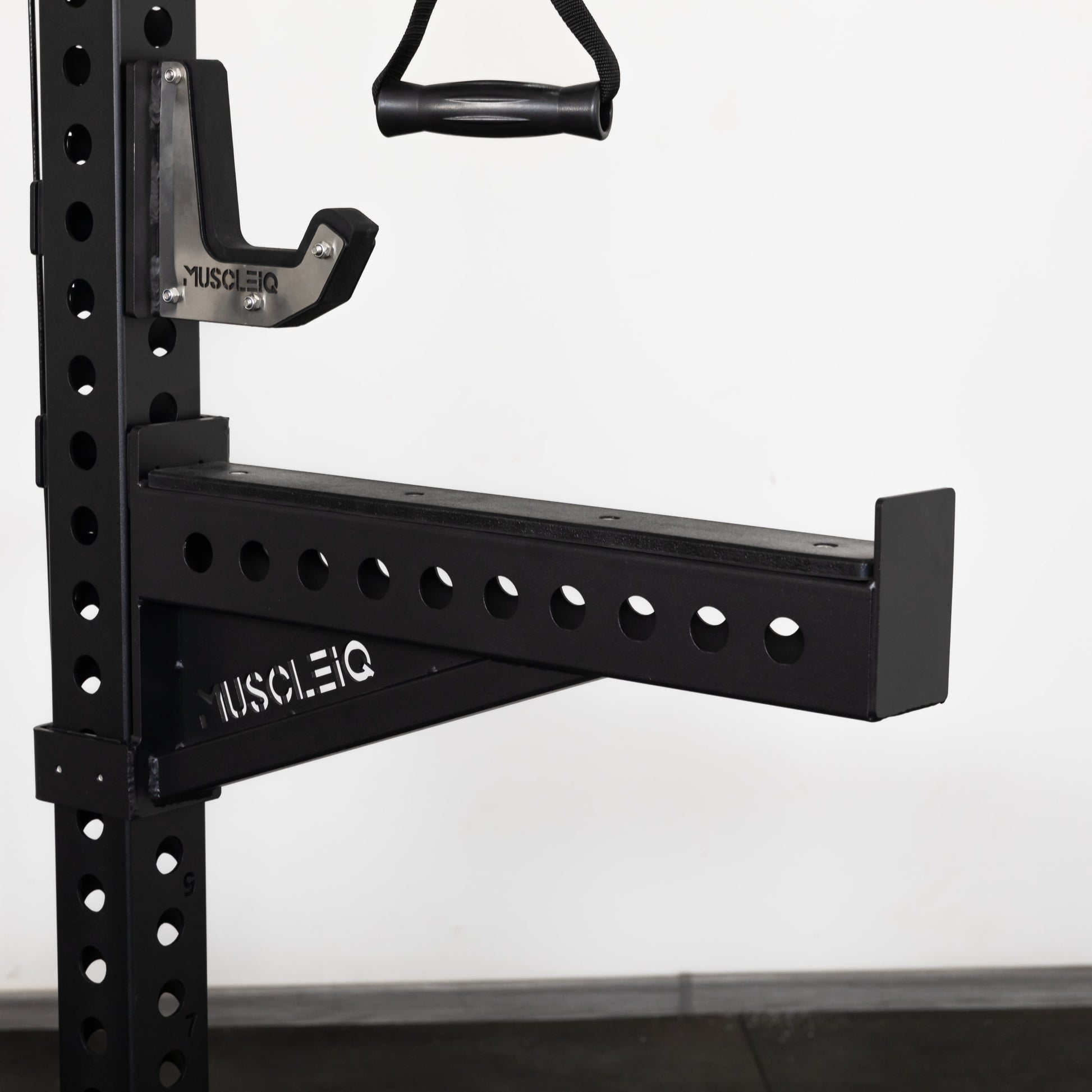

- 2 × Spotter Arms: Add an extra layer of safety when lifting without a training partner.
- 2 × Rubber D-Handles: Durable cable attachments ideal for rows, curls, and pushdowns.

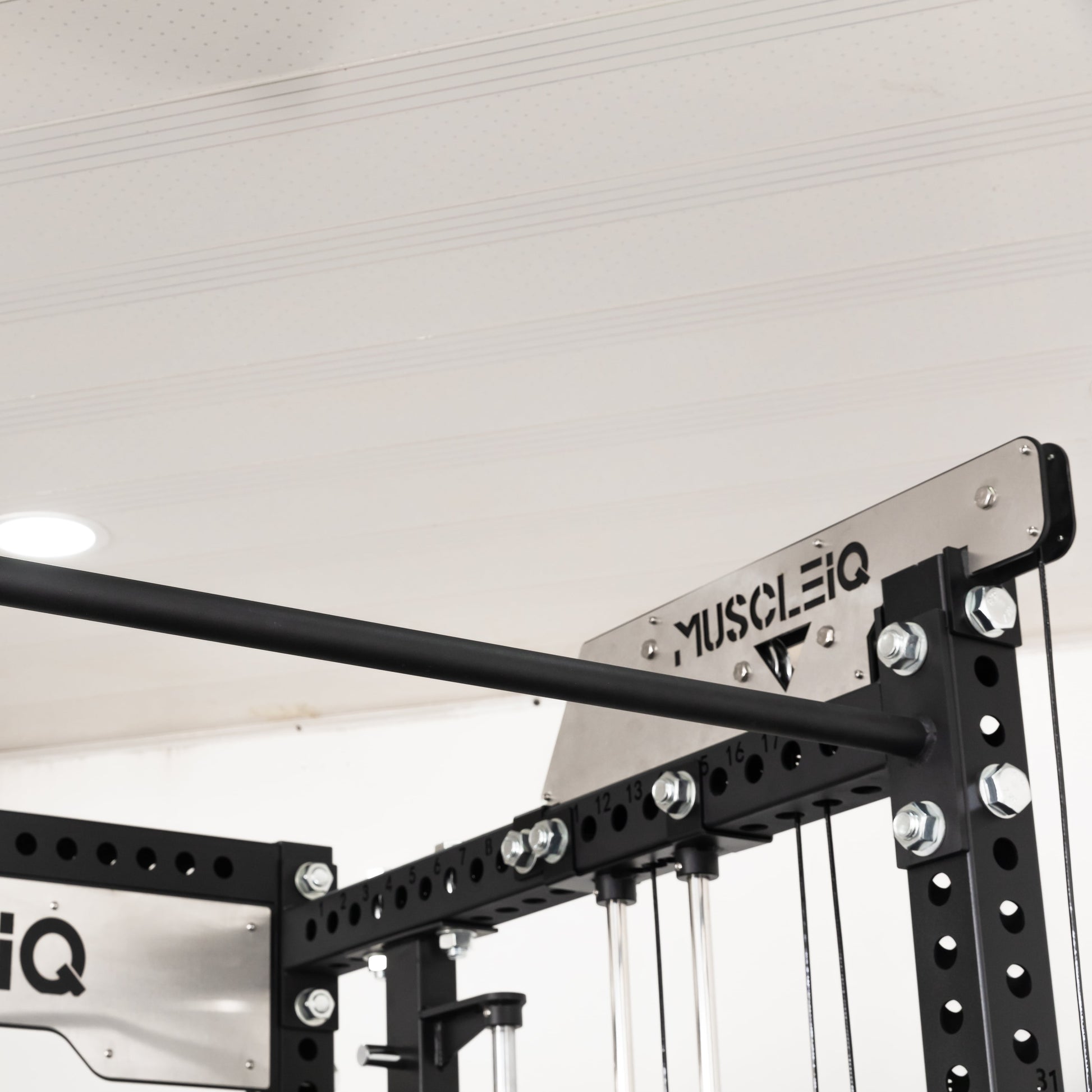

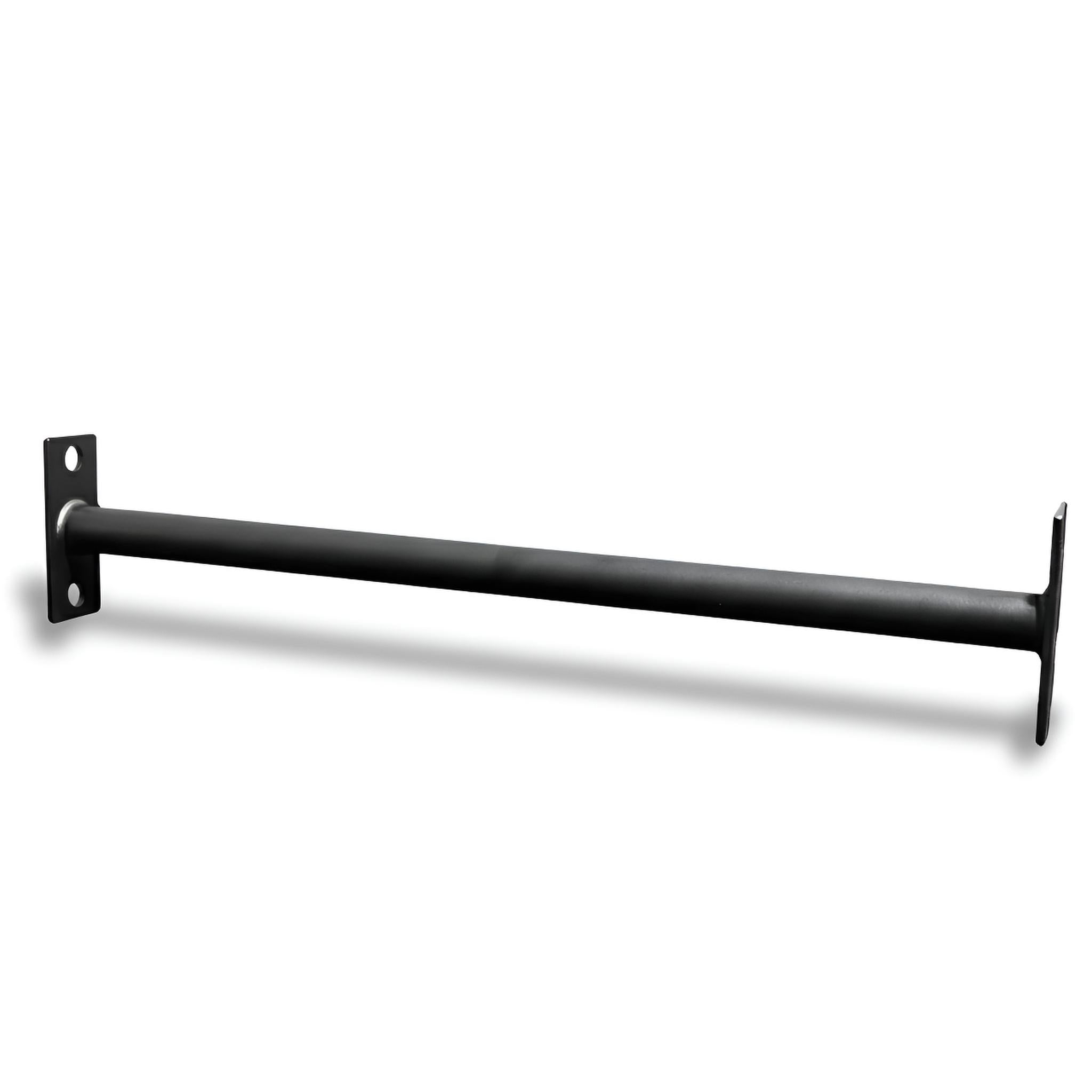

- 1 × Standard Pull-Up Bar: Perfect for pull-ups, chin-ups, and upper body bodyweight training.

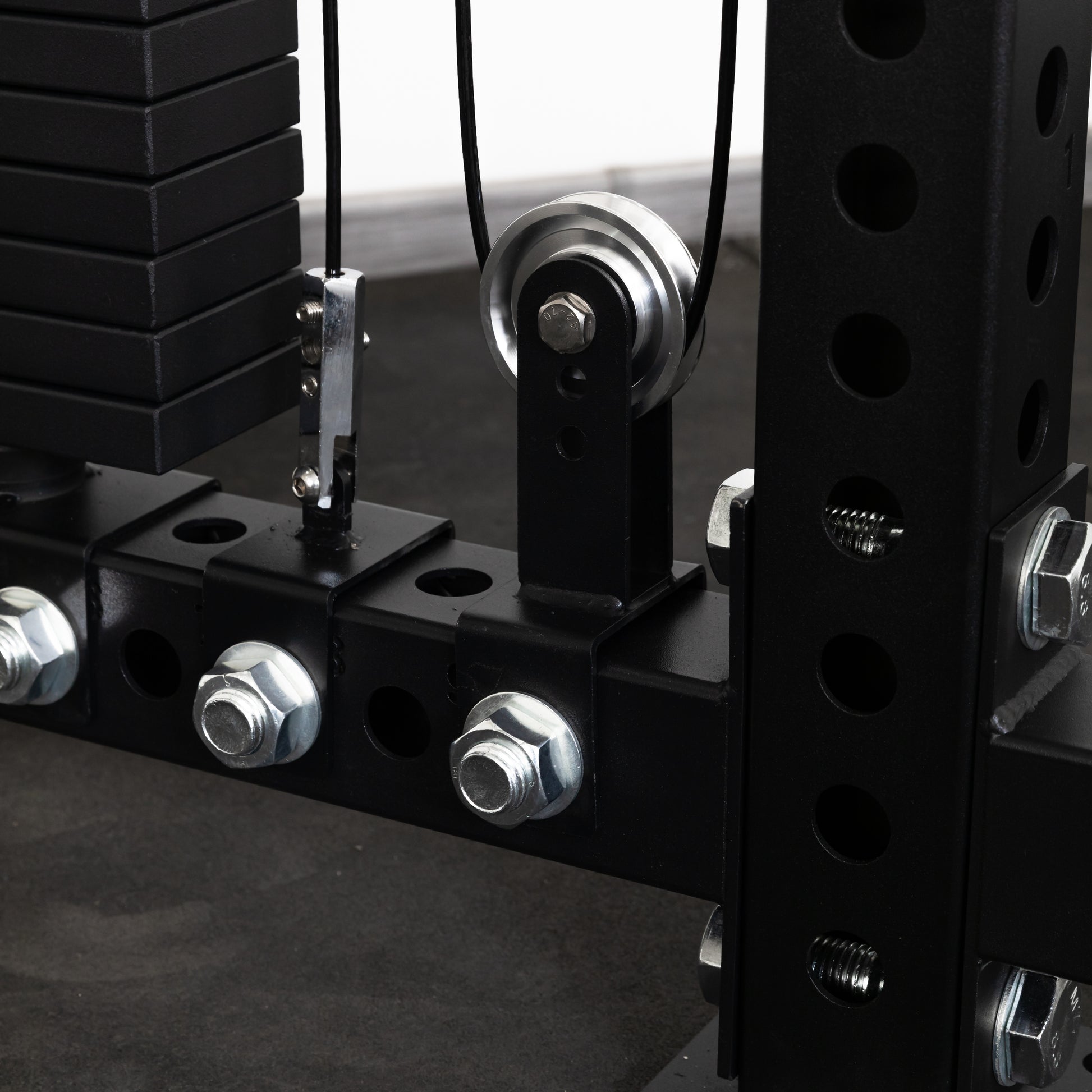

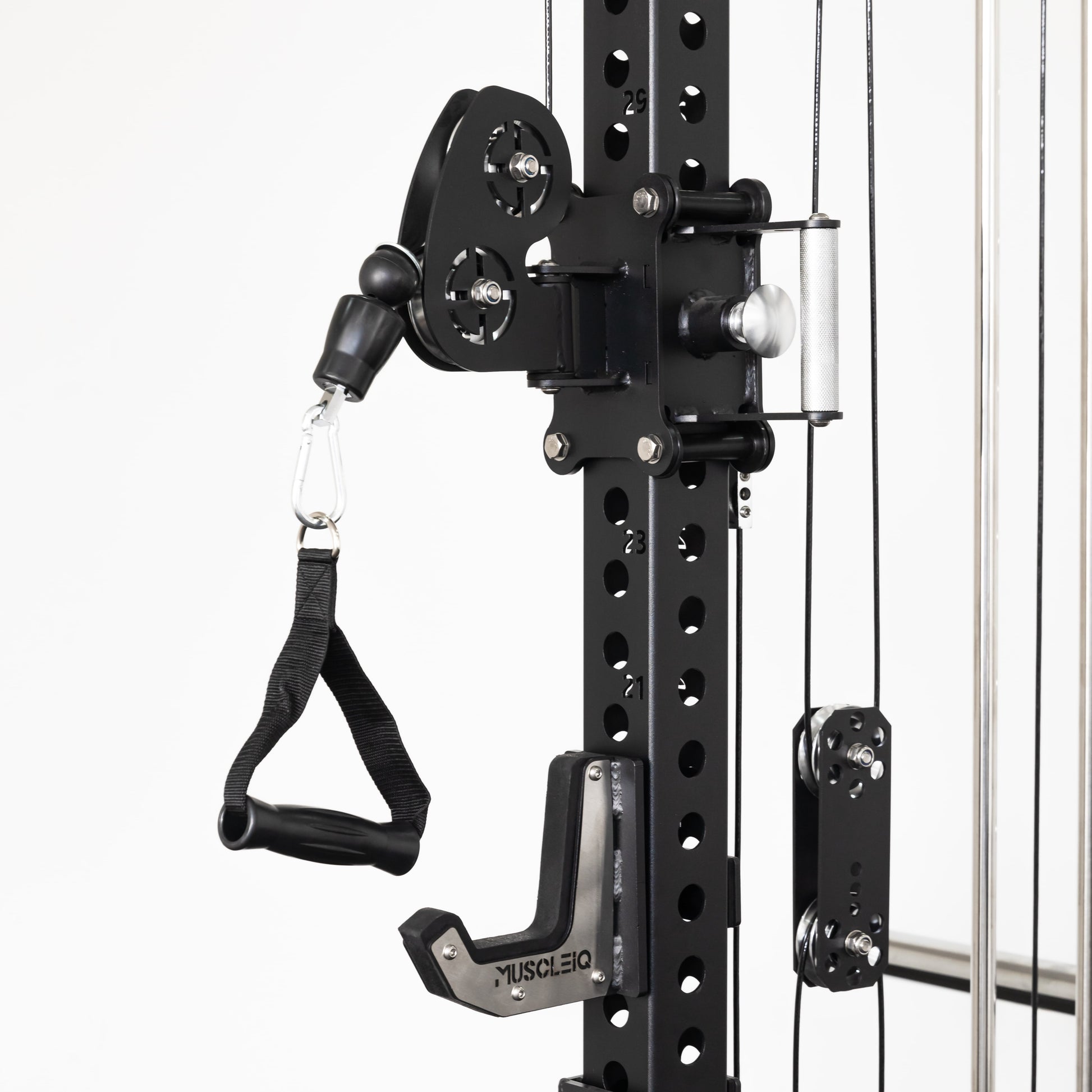

- Aluminium Pulley Upgrade: Smoother cable movement with reduced friction compared to plastic pulleys.

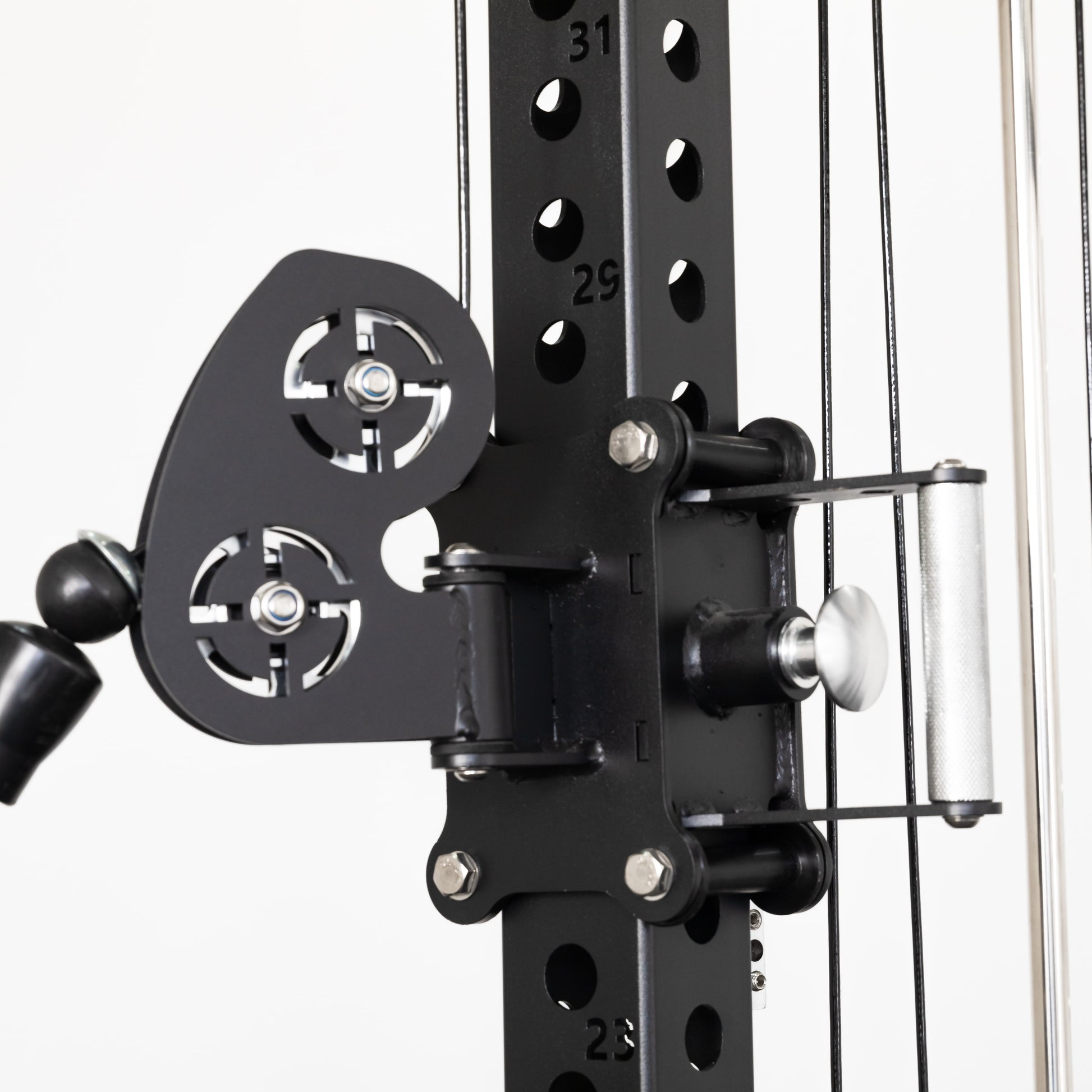

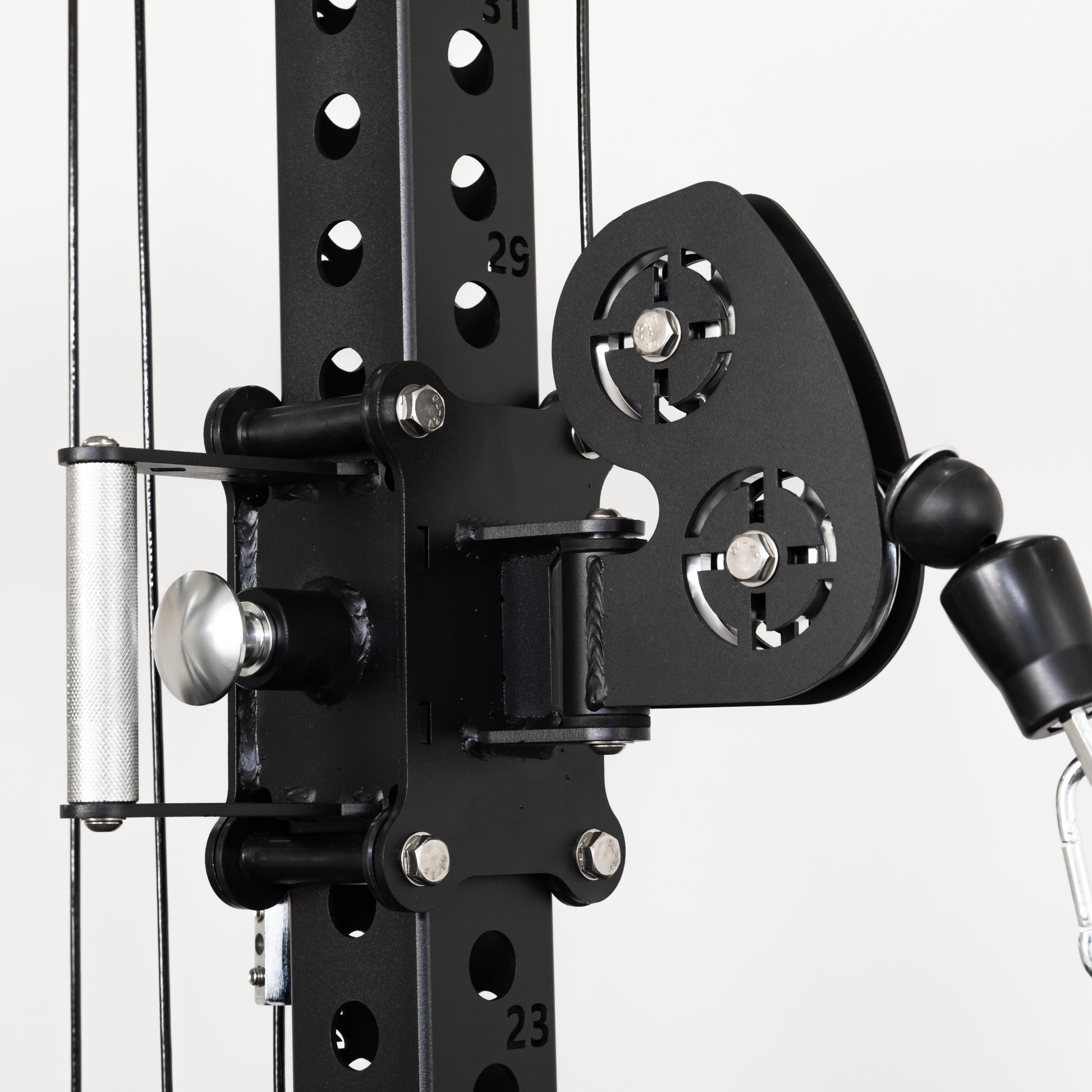

- Adjustable Trolley Gliders: Knurled grip handles with quick-release adjustment for fast, secure positioning.
| Frame Size | 75mm × 75mm uprights (3" × 3") heavy-duty steel construction |
|---|---|
| Steel Specification | 3mm thick 11-gauge steel for maximum strength and stability |
| Overall Height Options | 183cm, 193cm, 203cm, 213cm, 223cm or 233cm |
| Total Width | 2200mm including Smith machine, 1200mm rack only |
| Inside Rack Width | 1050mm between uprights |
| Rack Depth | 750mm (rack only), 1200mm with Smith machine |
| Hole Spacing | 1" holes spaced at 50mm intervals for attachment compatibility |
| Smith Machine | Integrated system with safety stoppers and 20kg barbell |

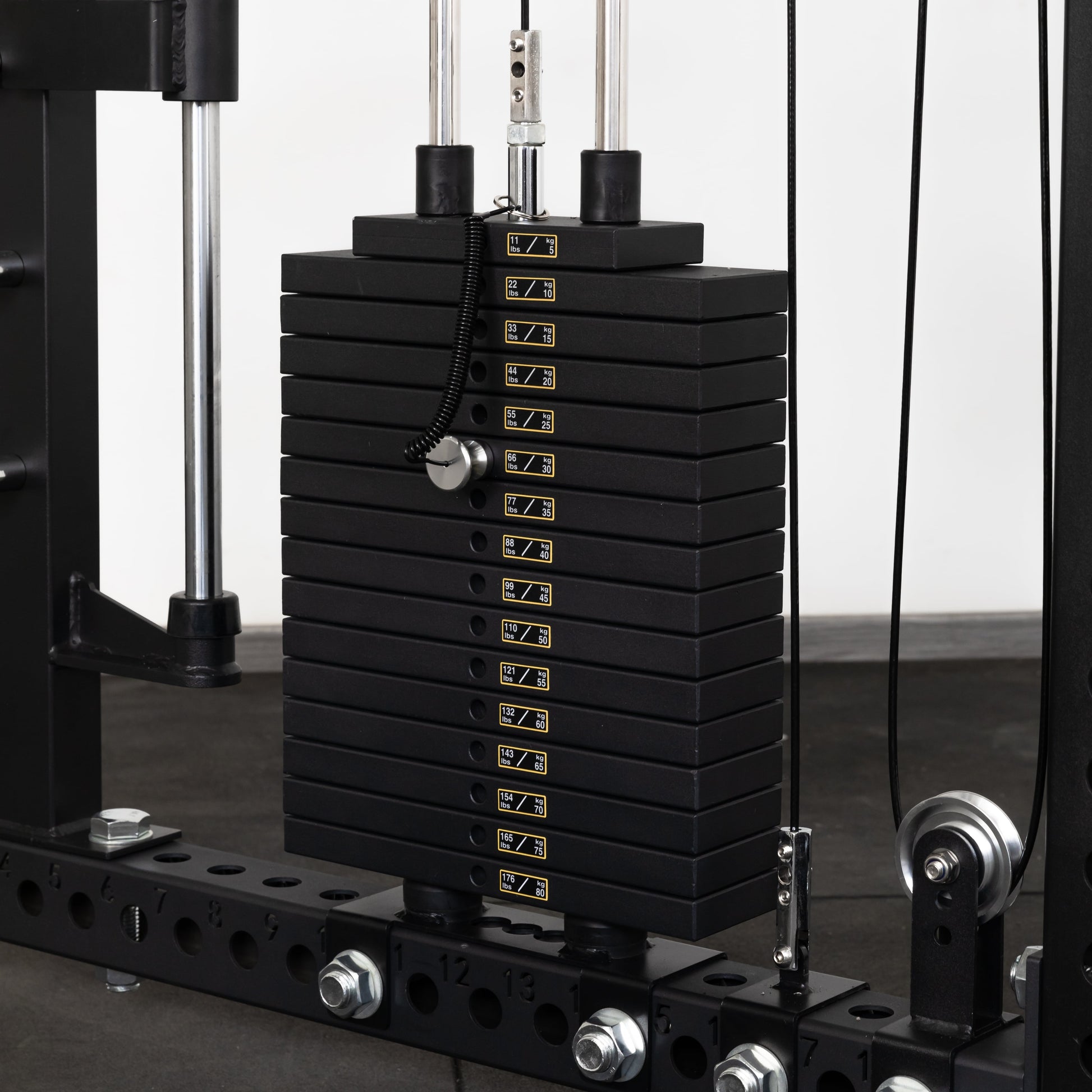

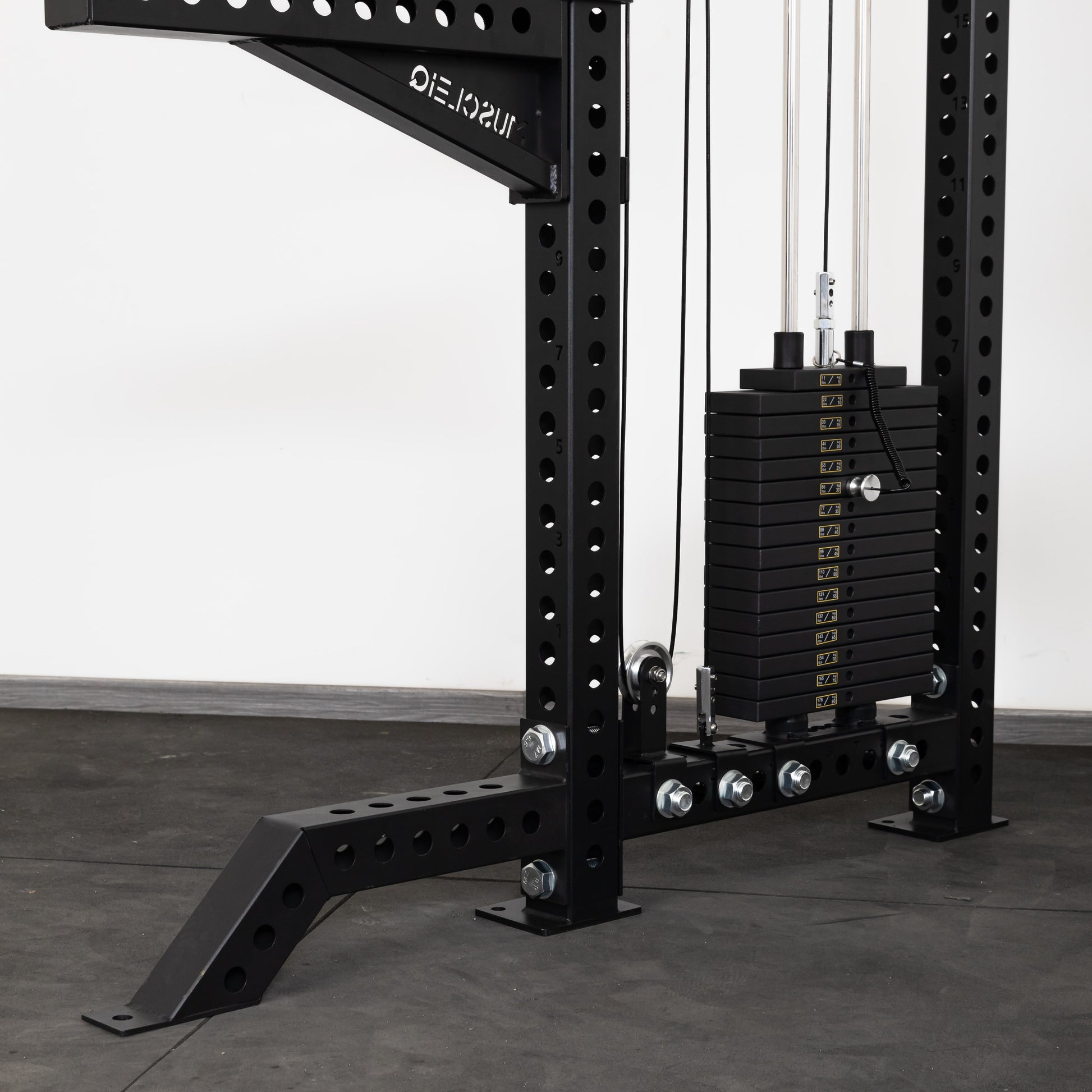

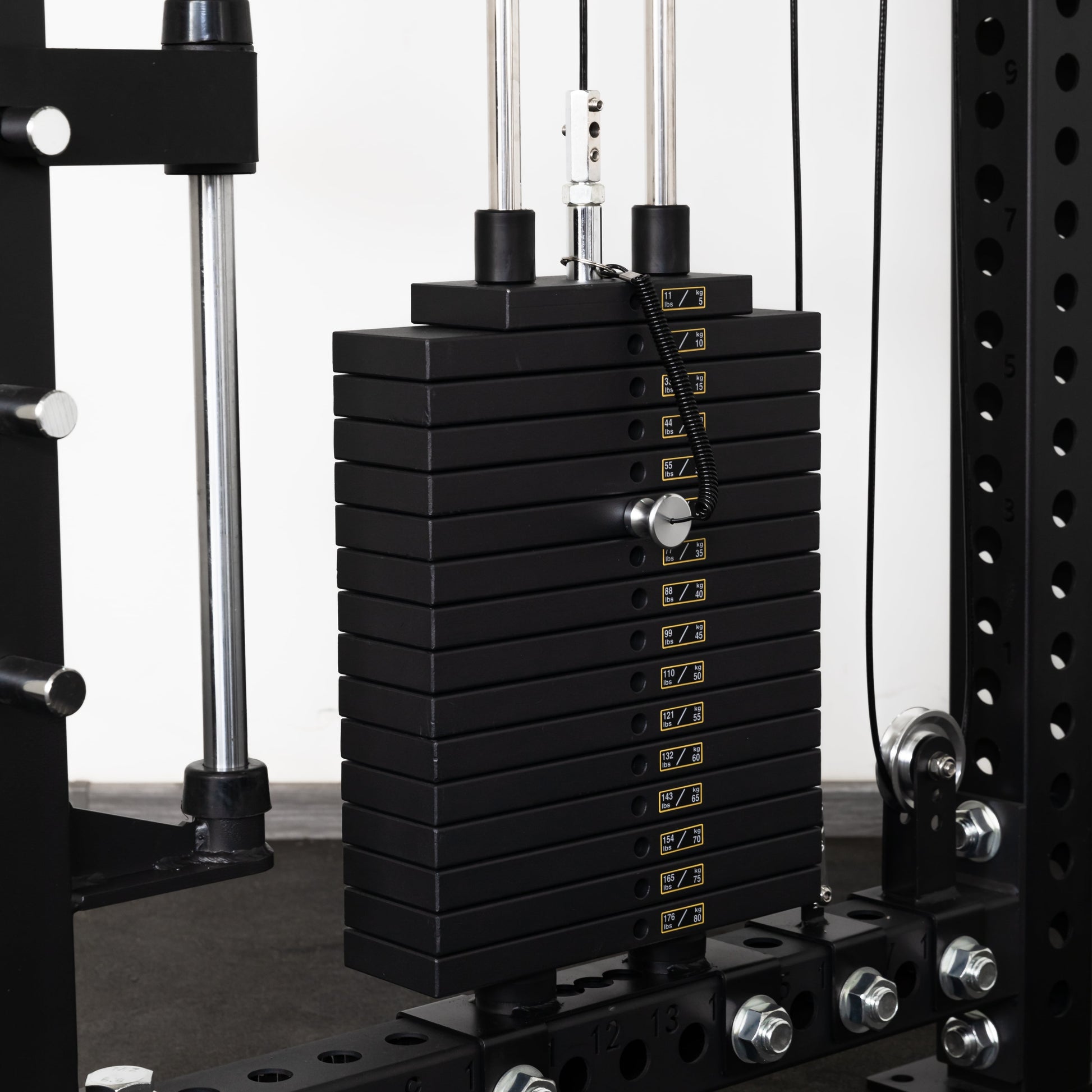

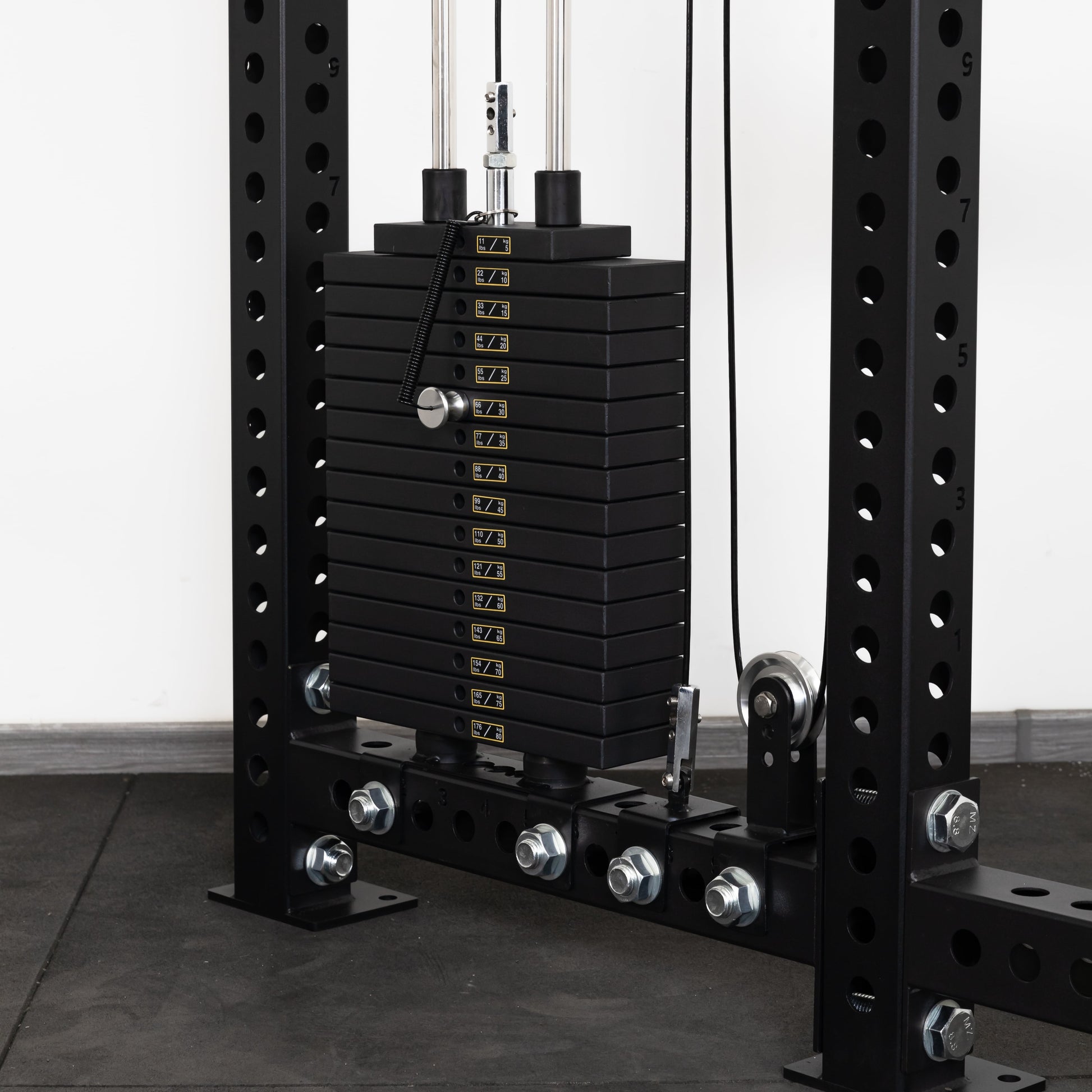

| Cable System | Dual adjustable pulley system with selectable weight stacks |
| Weight Stack Options | 80–120kg per side (maximum combined 240kg) |
| Max Load Capacity | Rated to handle up to 500kg |
| Floor Mounting | Rack can be bolted down; depth reduces to 650mm without front legs |
| Warranty – Frame | 5-year warranty on the power rack frame |
| Warranty – Cables & Accessories | 12-month warranty on cables, pulleys, and attachments |
Sizes

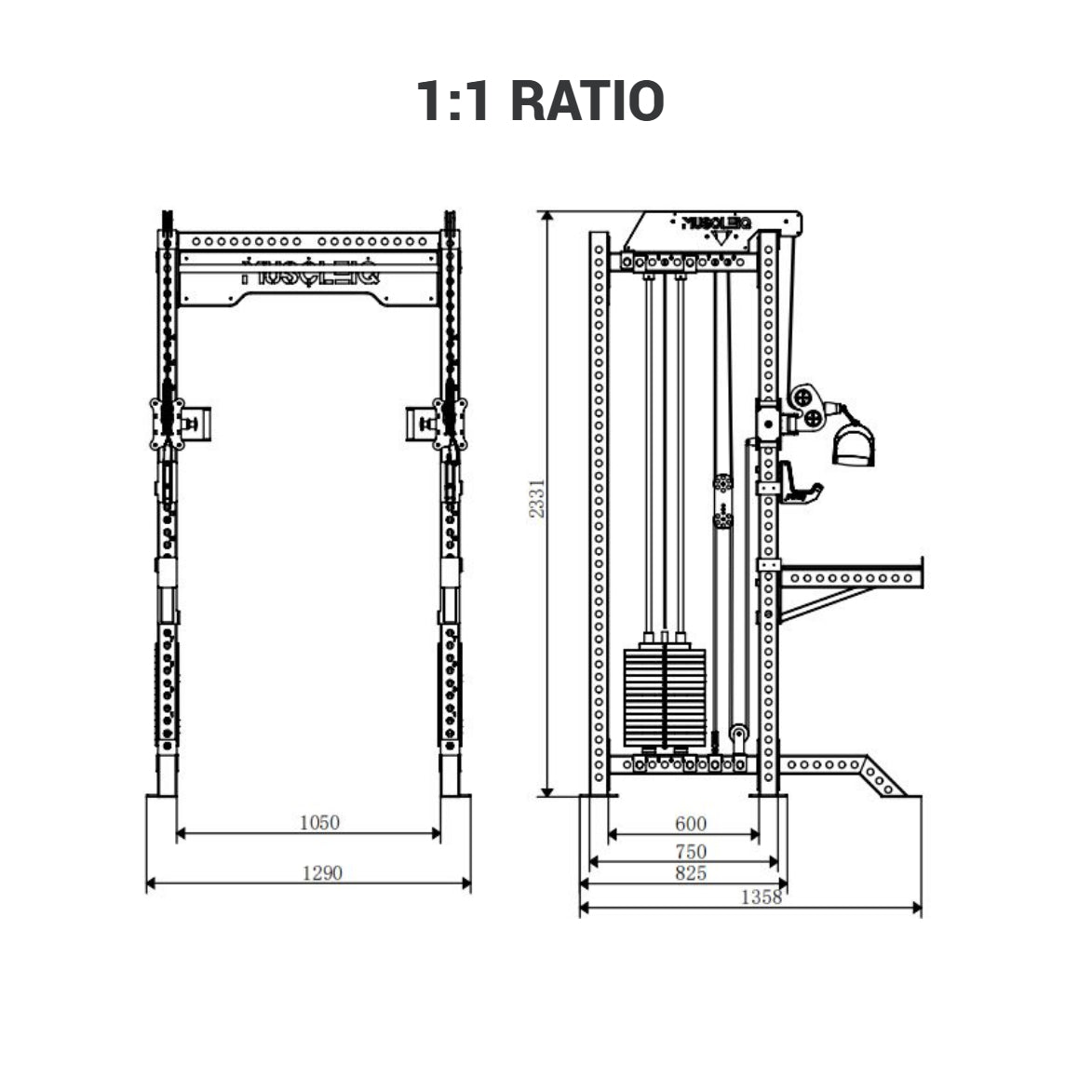

Dimensions
-

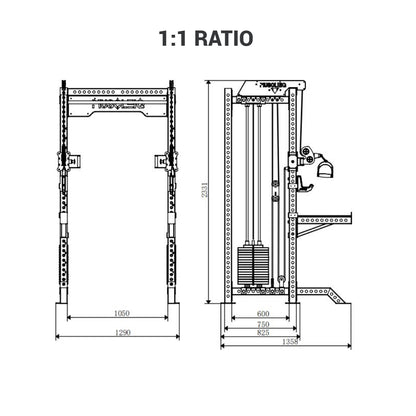

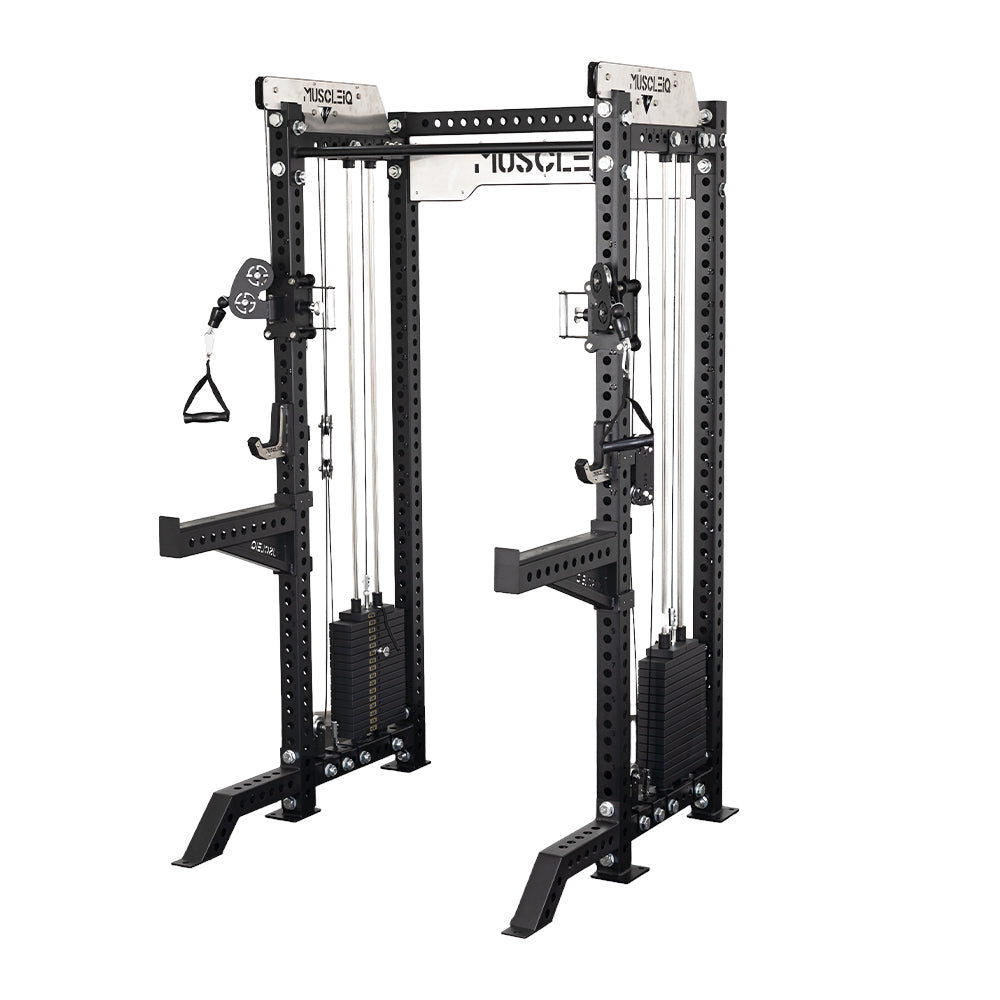

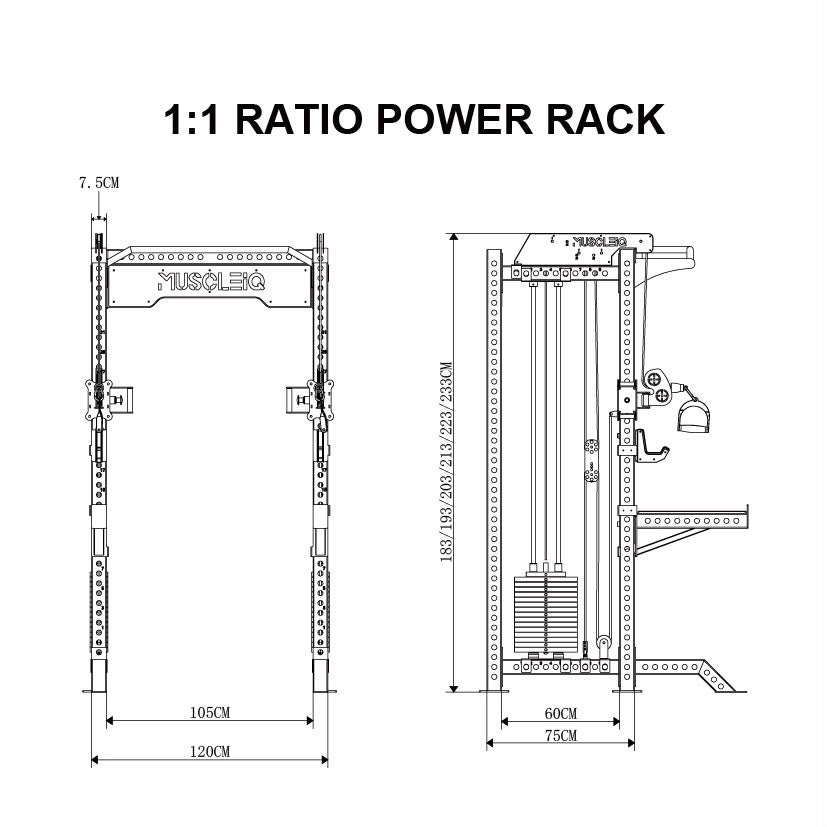

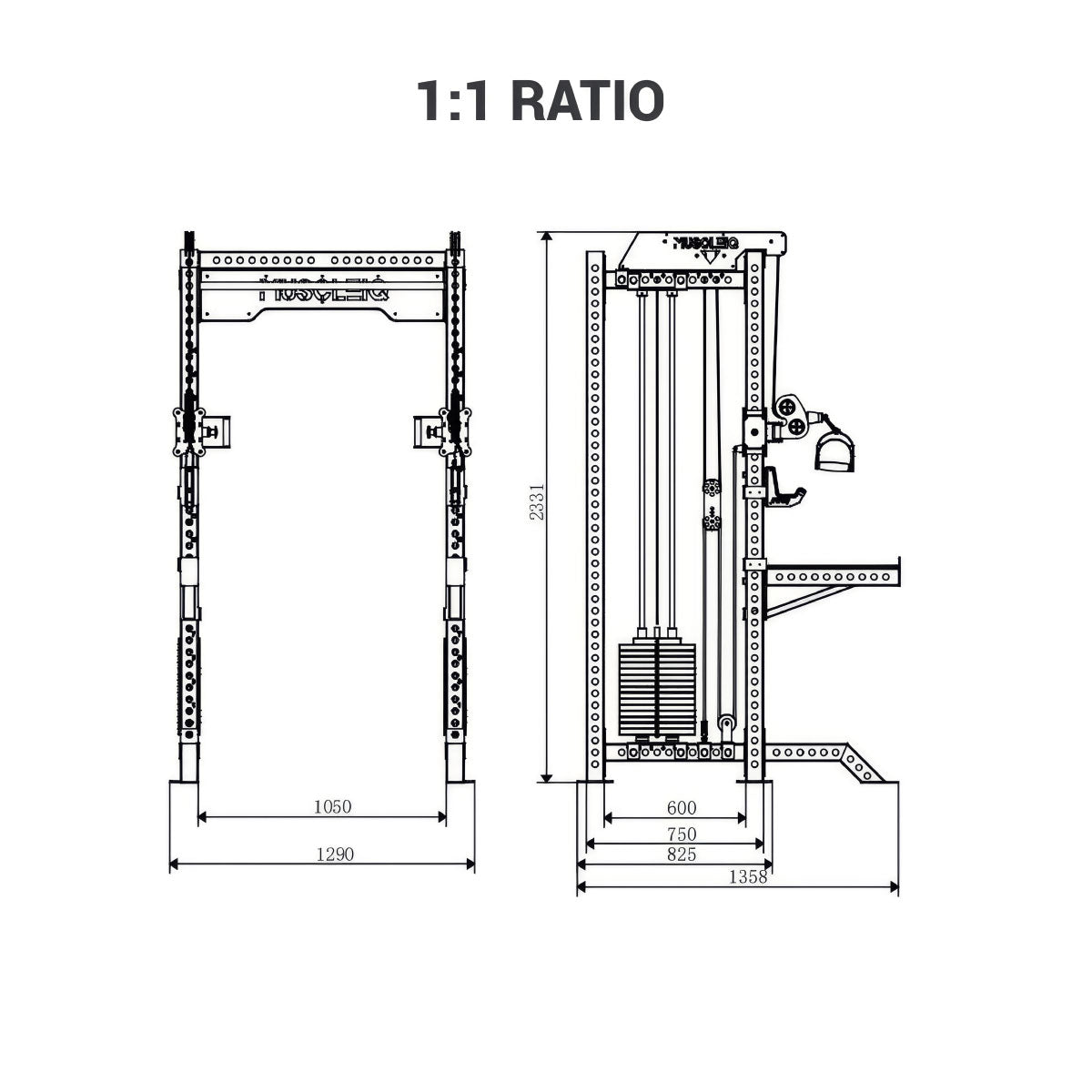

Multi Functional Power Rack 1:1 -

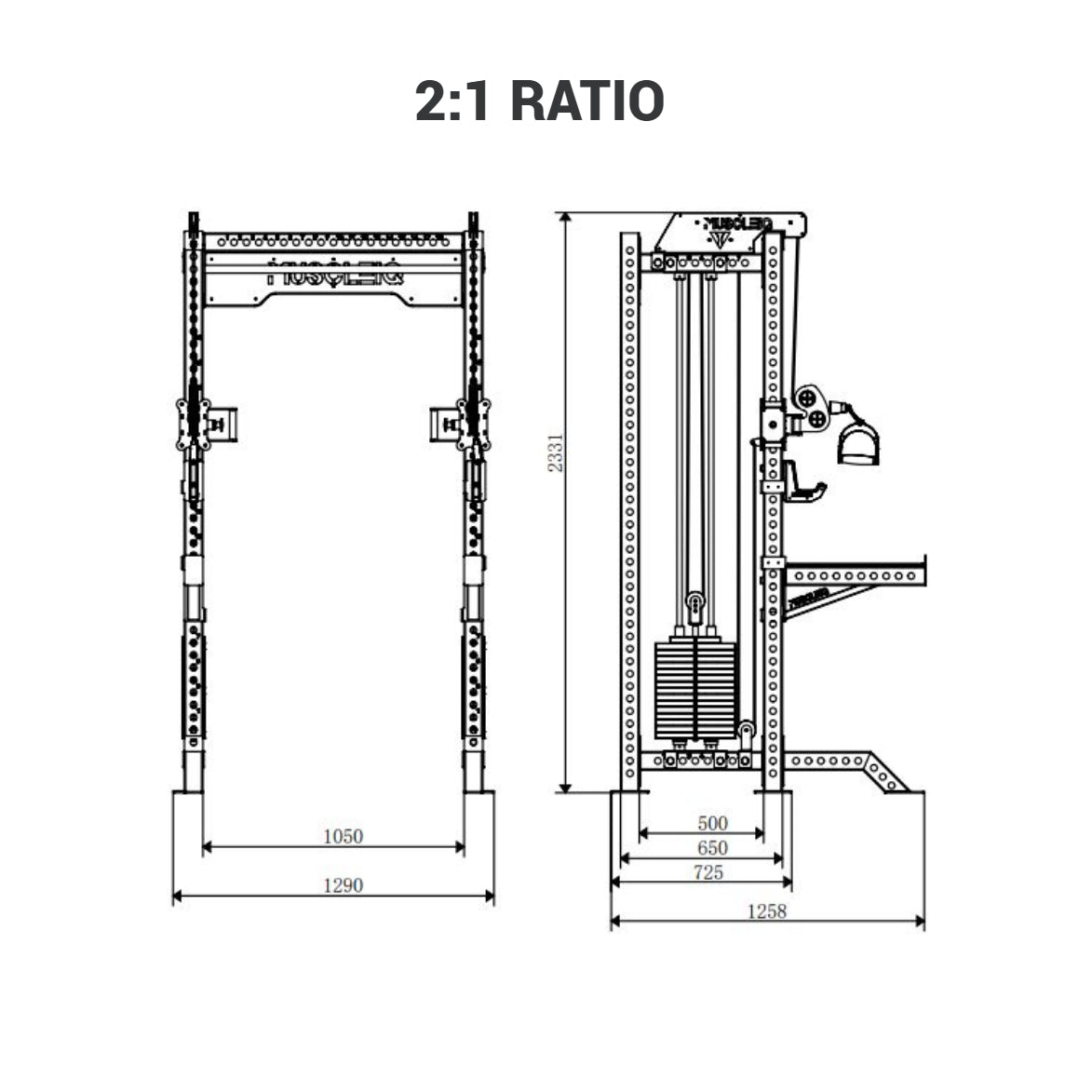

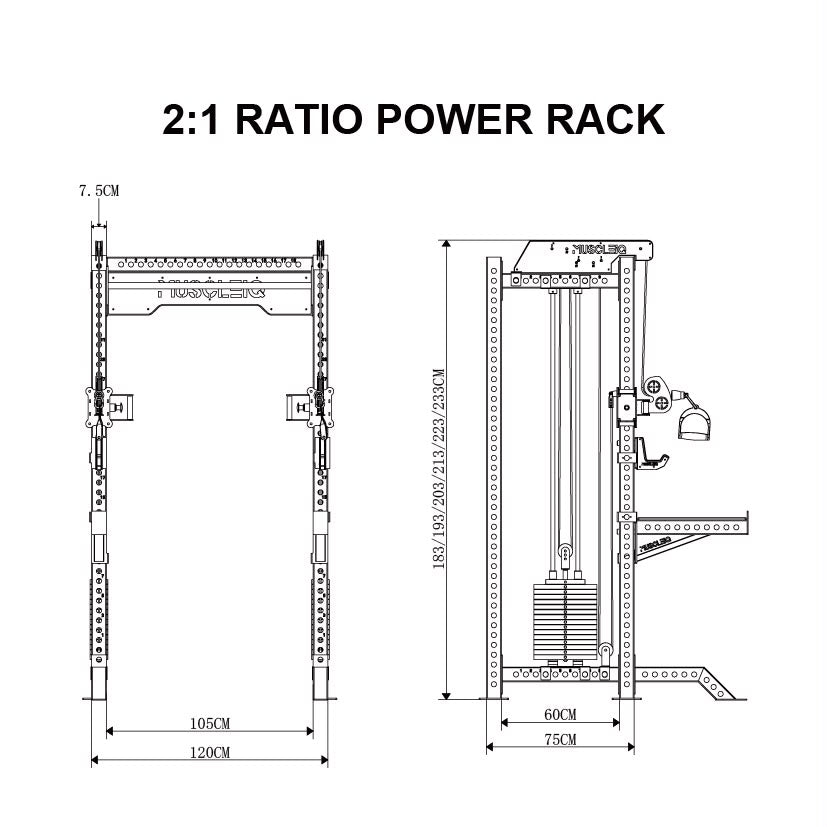

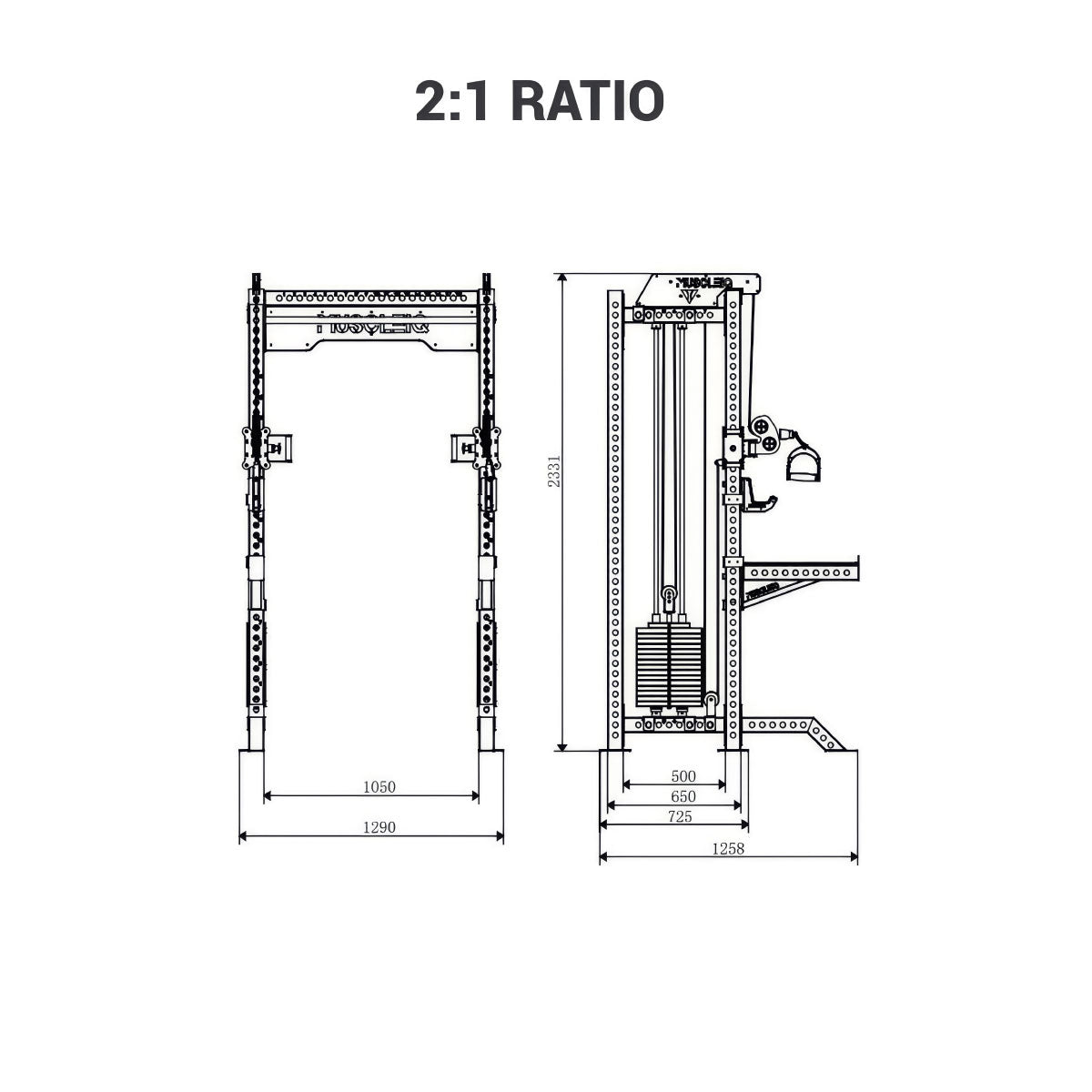

Multi Functional Power Rack 2:1
| Configuration | Front view width (mm) | Internal / usable width (mm) | Height (mm) | Depth / footprint (mm) |
|---|---|---|---|---|
| 1:1 Ratio (Power Rack) | 1200 | 1050 | 1830 - 2330 (Your Choice) | 750 |
| 2:1 Ratio (Power Rack) | 1200 | 1050 | 1830 - 2330 (Your Choice) | 750 |
-

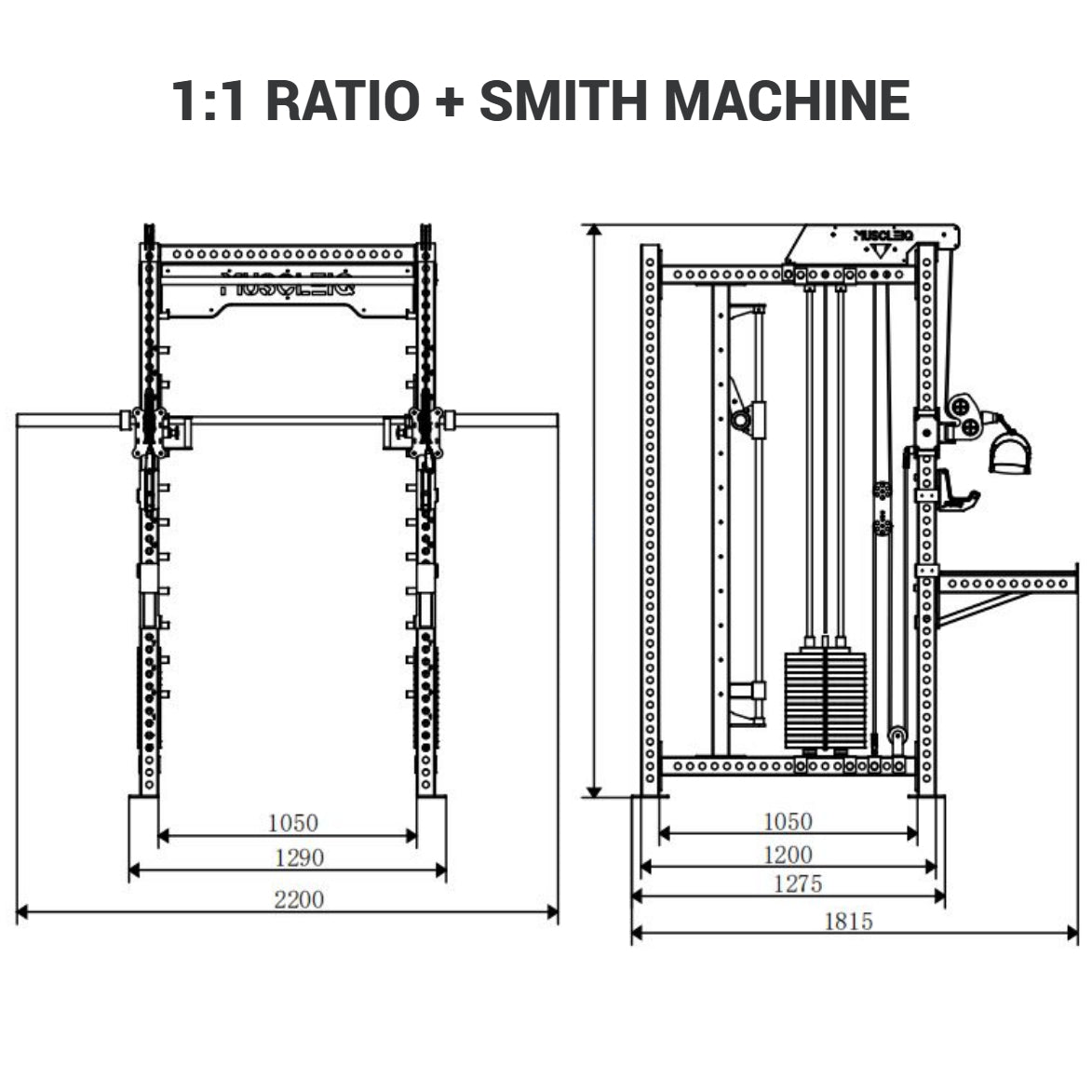

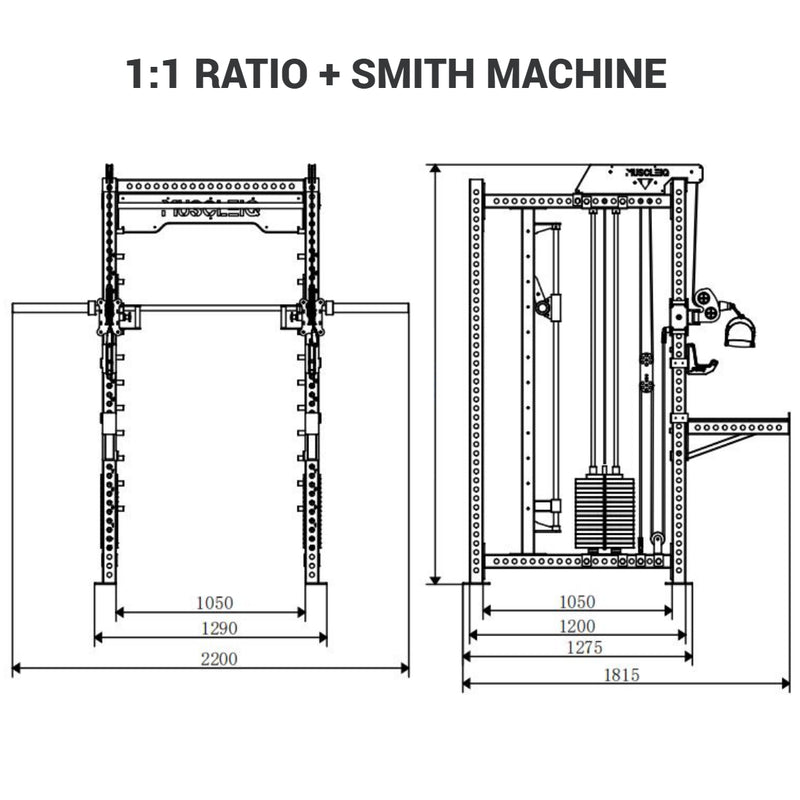

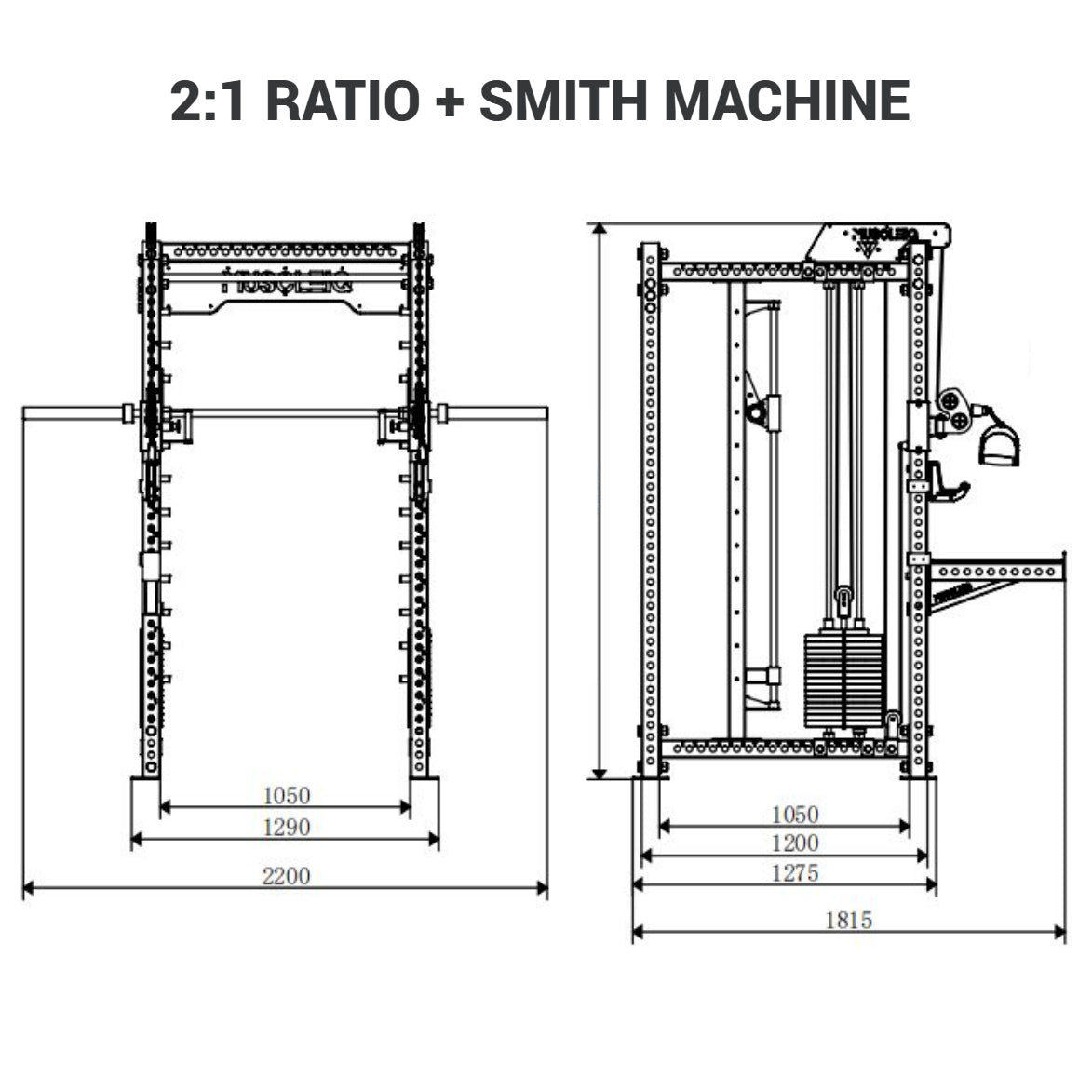

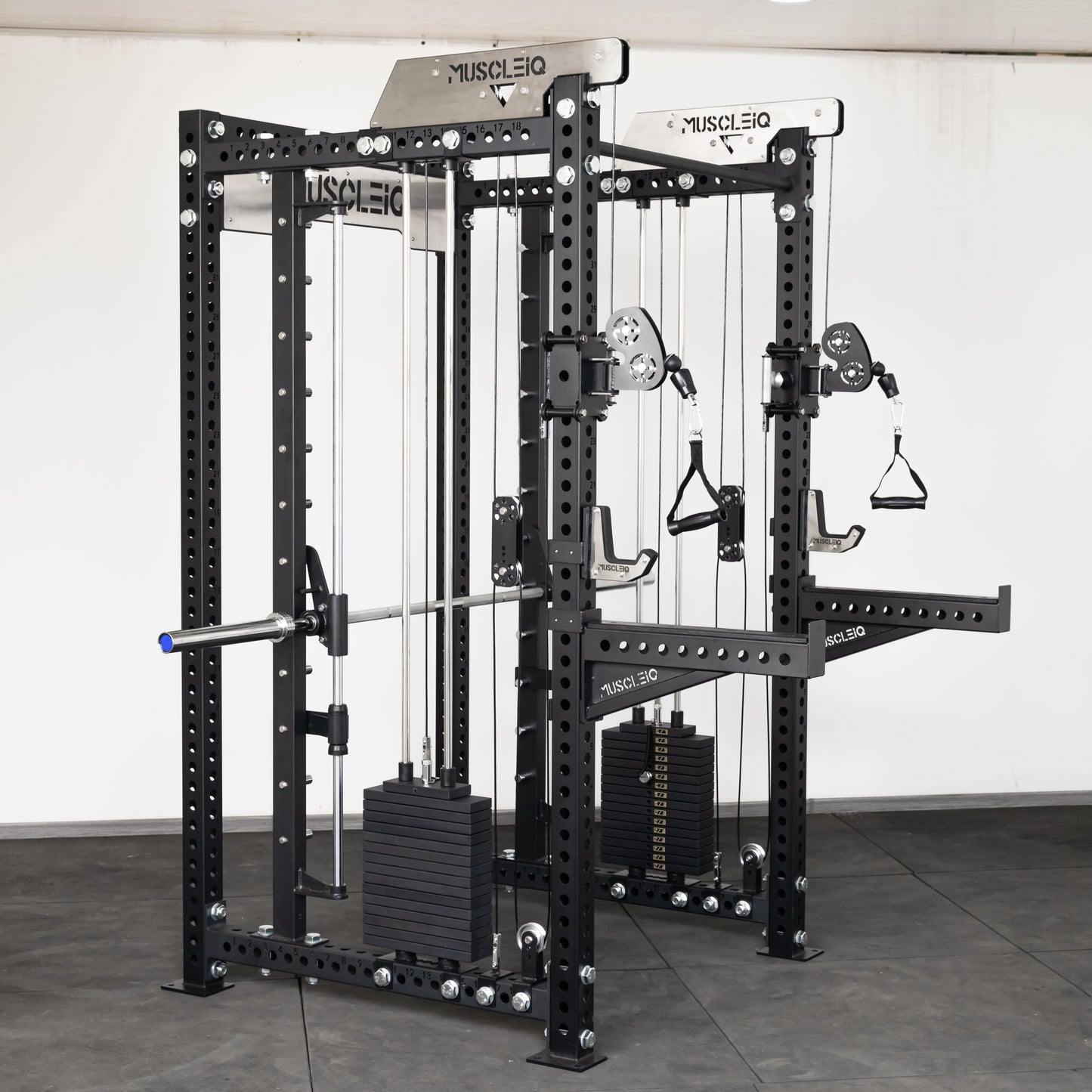

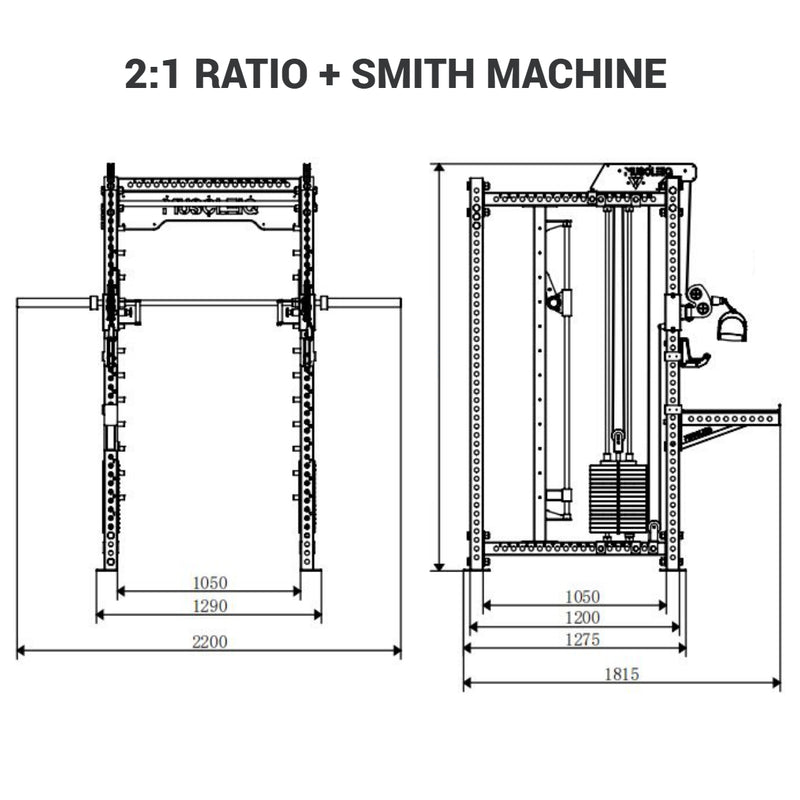

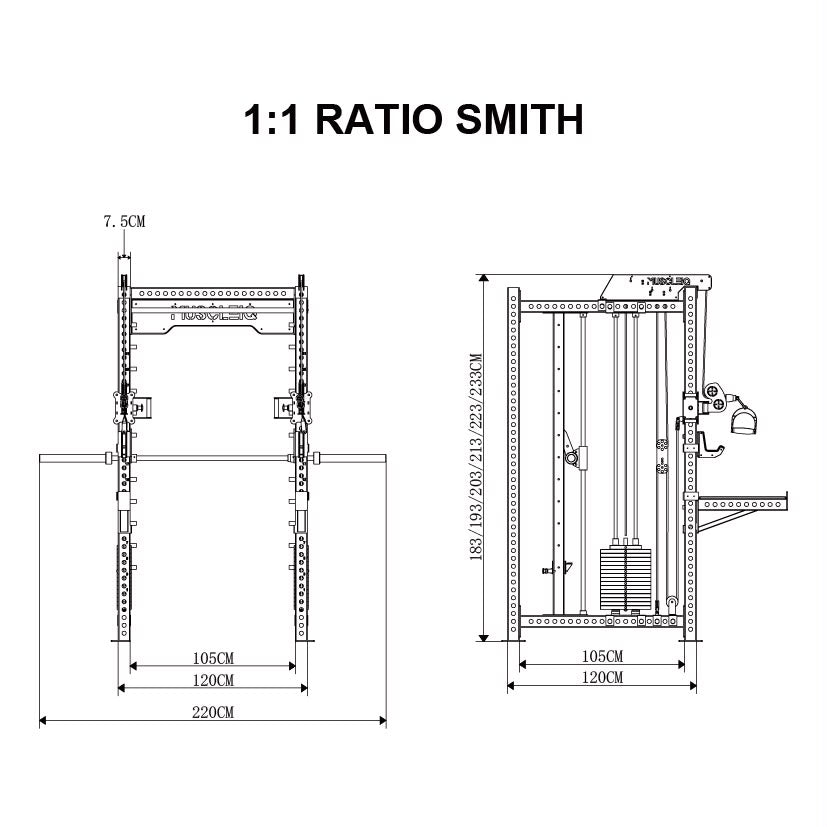

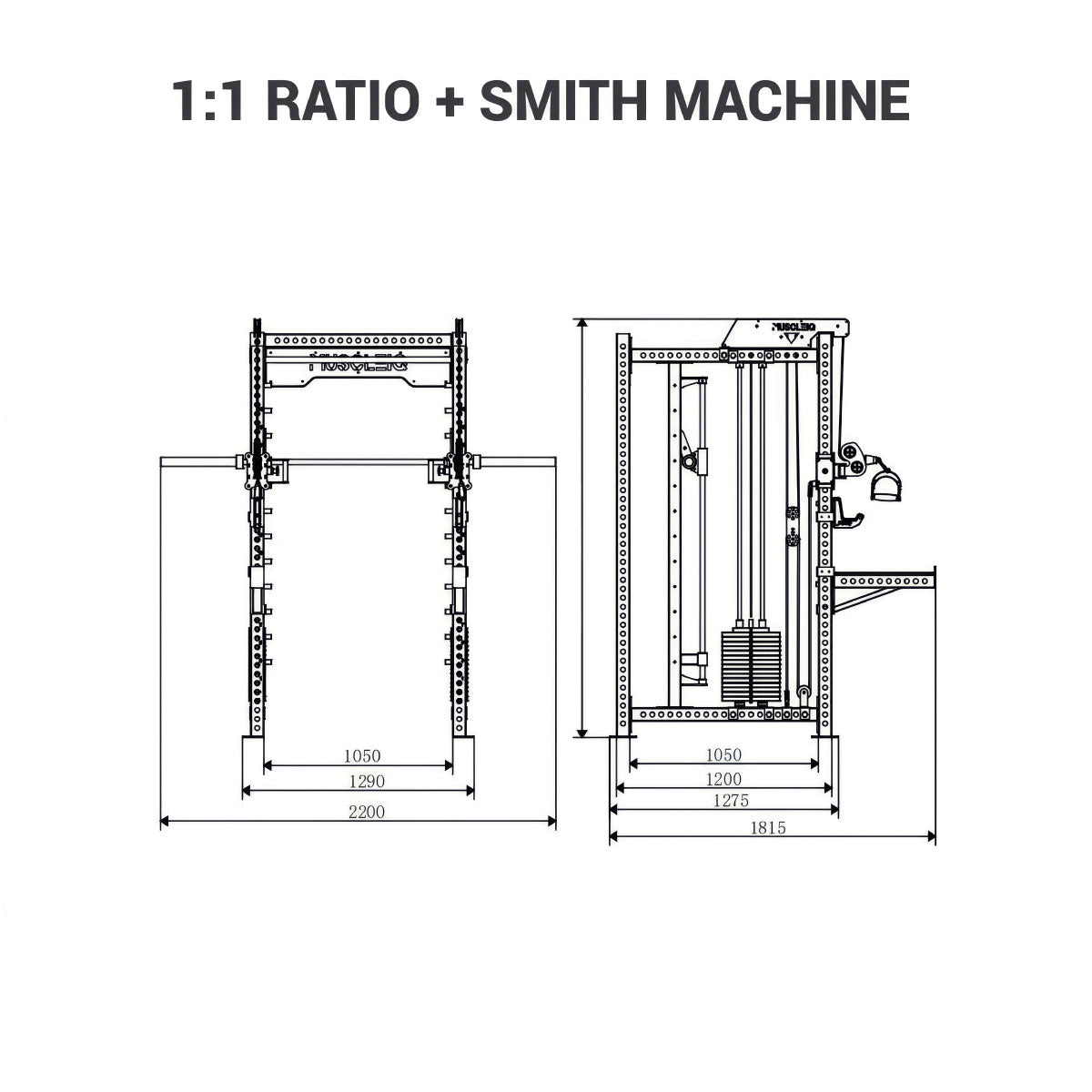

Multi Functional Power Rack with Smith Machine 1:1 -

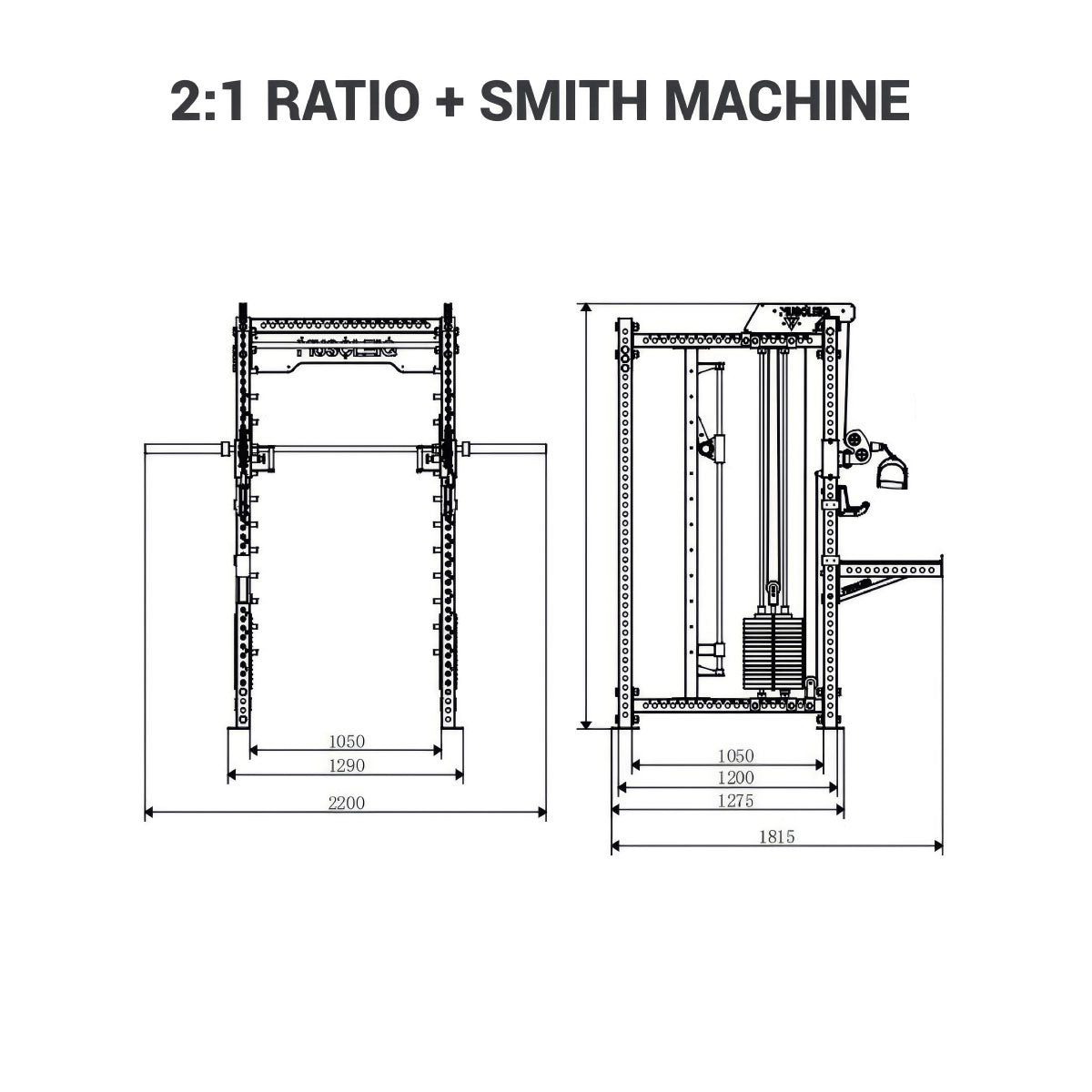

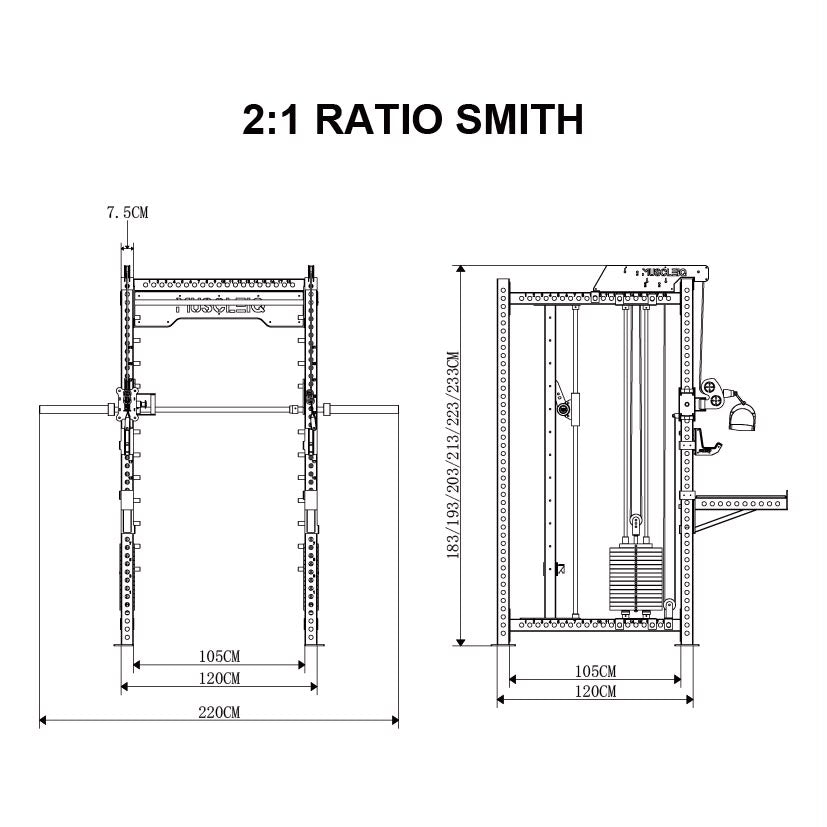

Multi Functional Power Rack with Smith Machine 2:1
| Configuration | Front view width (mm) | Internal / usable width (mm) | Height (mm) | Depth / footprint (mm) |
|---|---|---|---|---|
| 1:1 Ratio (Smith Machine) | 2200 | 1050 | 1830 - 2330 (Your Choice) | 1200 |
| 2:1 Ratio (Smith Machine) | 2200 | 1050 | 1830 - 2330 (Your Choice) | 1200 |
Who it's for
Ideal for
- Home Gyms
- Commercial Gyms
- Strength Athletes
- Training Alone
- Strength Training
- Hypertrophy Work
- Full-Body Training
- Functional Training
Benefits
Why choose this product?
The Commercial Fitness Multi-Functional Power Rack combines the benefits of a power rack, Smith machine, and cable system into one robust training hub. Fully customisable in size and setup, it delivers elite versatility for compound lifts, isolated movements and full-body sessions.
11-gauge 75mm x 75mm (3x3) steel frame (3mm thick), 1 hole spacing (50mm intervals), and 500kg max load capacity.

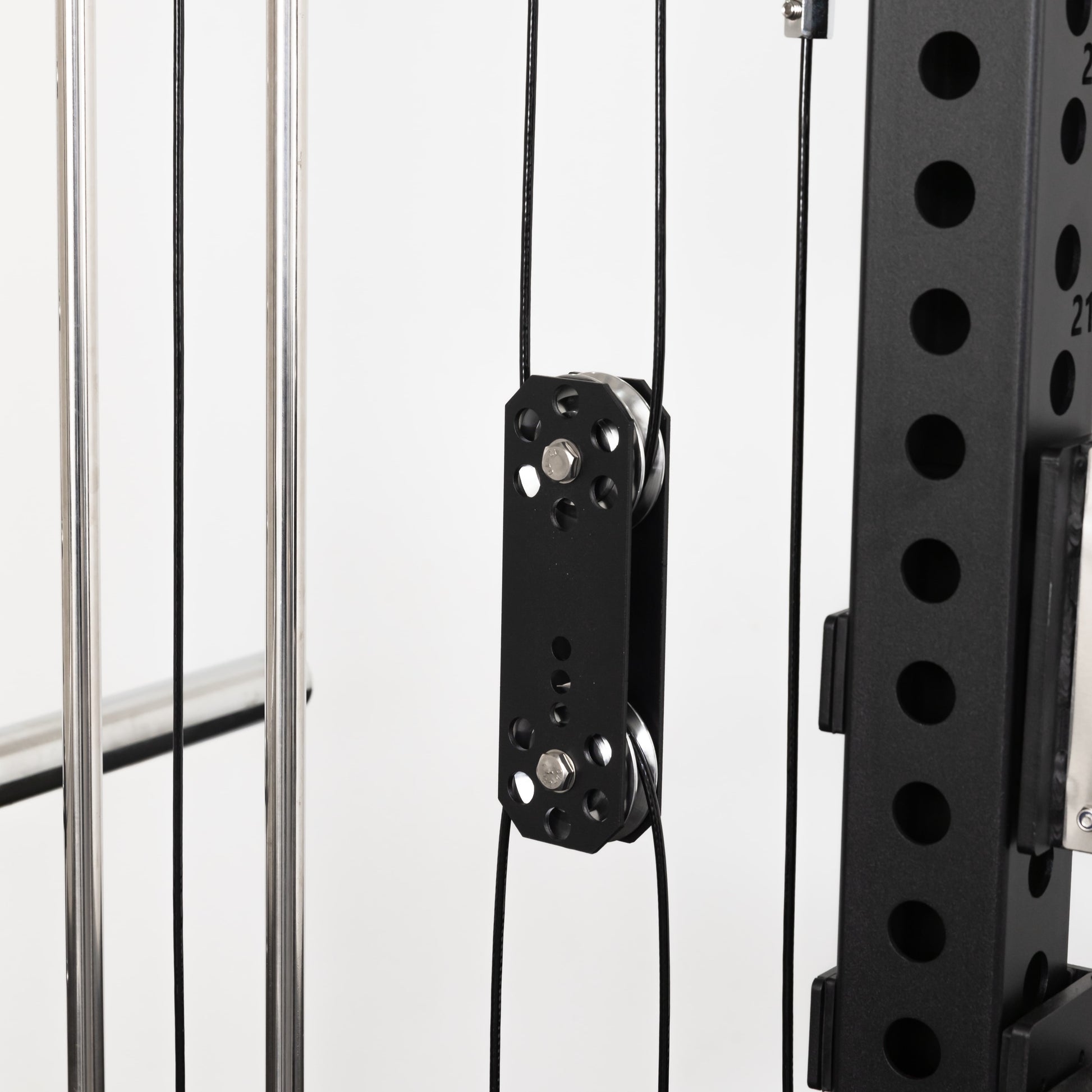

Premium aluminium pulleys, pulley 2:1 ratio on lat pulldown and seated row for consistent feel.
Independent side cables 120kg per side, up to 240kg combined stack weight. Weight stack options 80/90/100/110/120kg.
Built-in Smith machine with 20kg bar and safety stoppers, plus height options of 183/193/203/213/223/233 cm.
1:1 vs 2:1: which ratio?
You lift the full selected load. Ideal for heavy pulling, strength work and direct resistance.
Reviews
Reviews
5.0

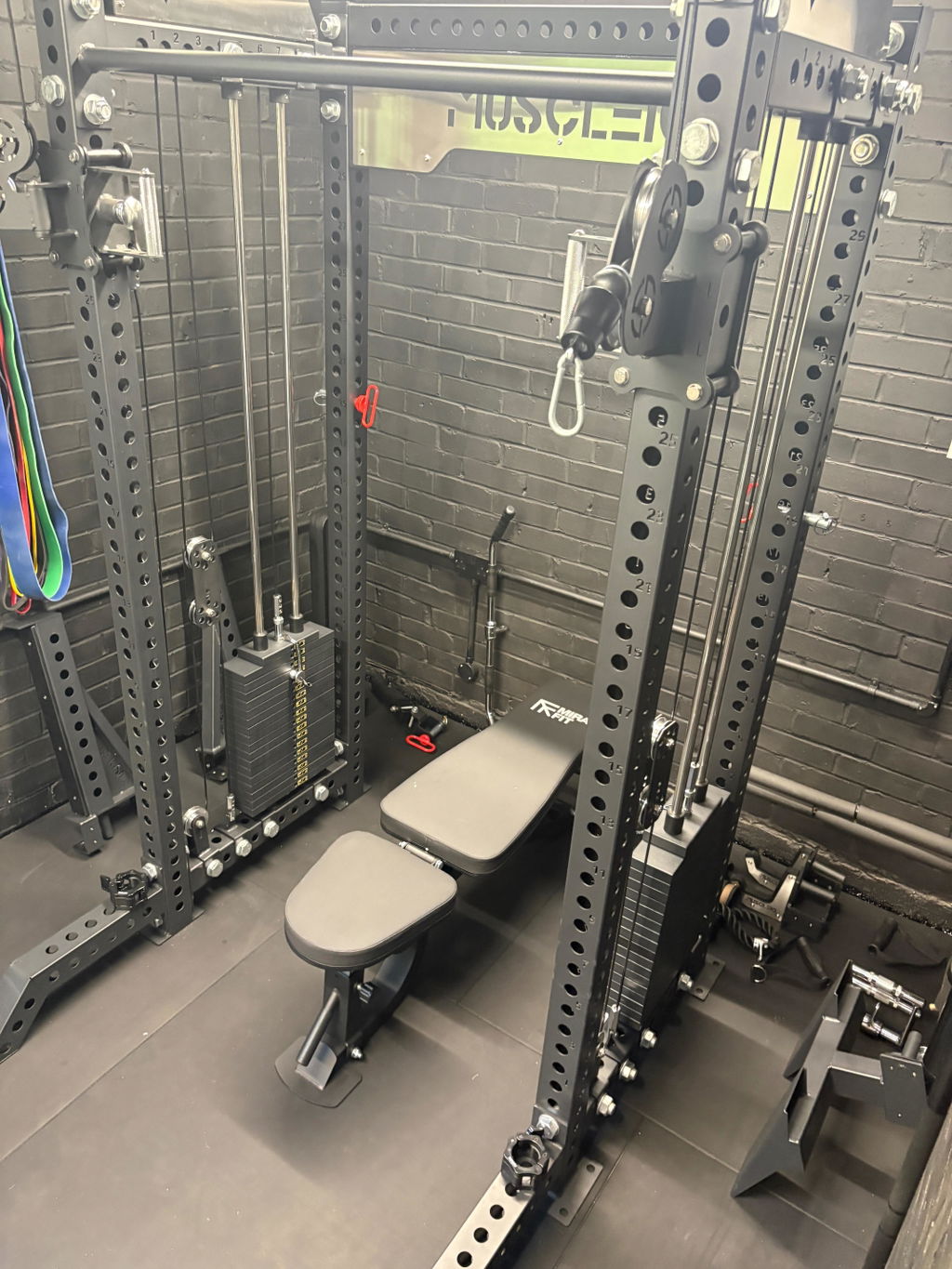

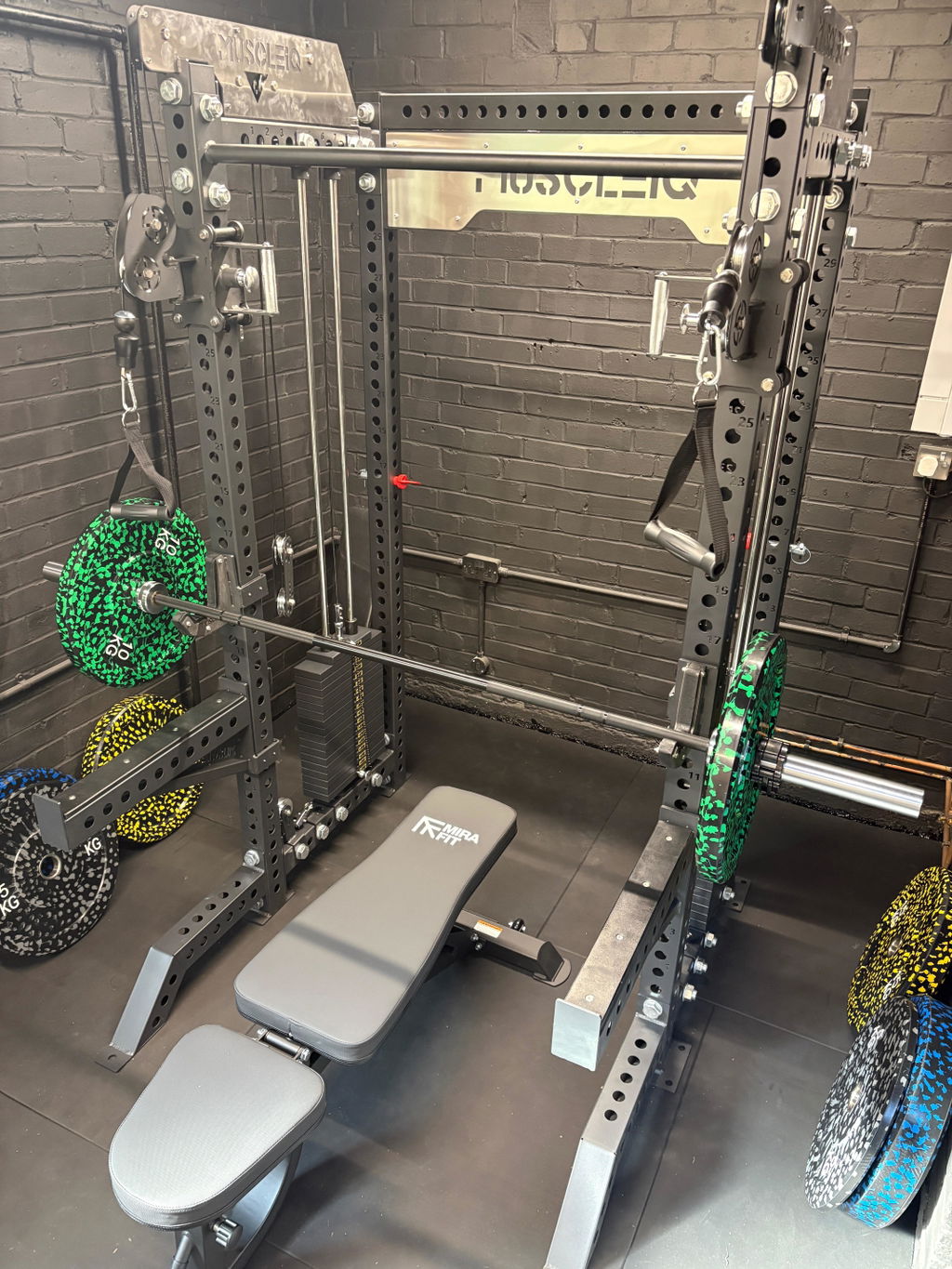

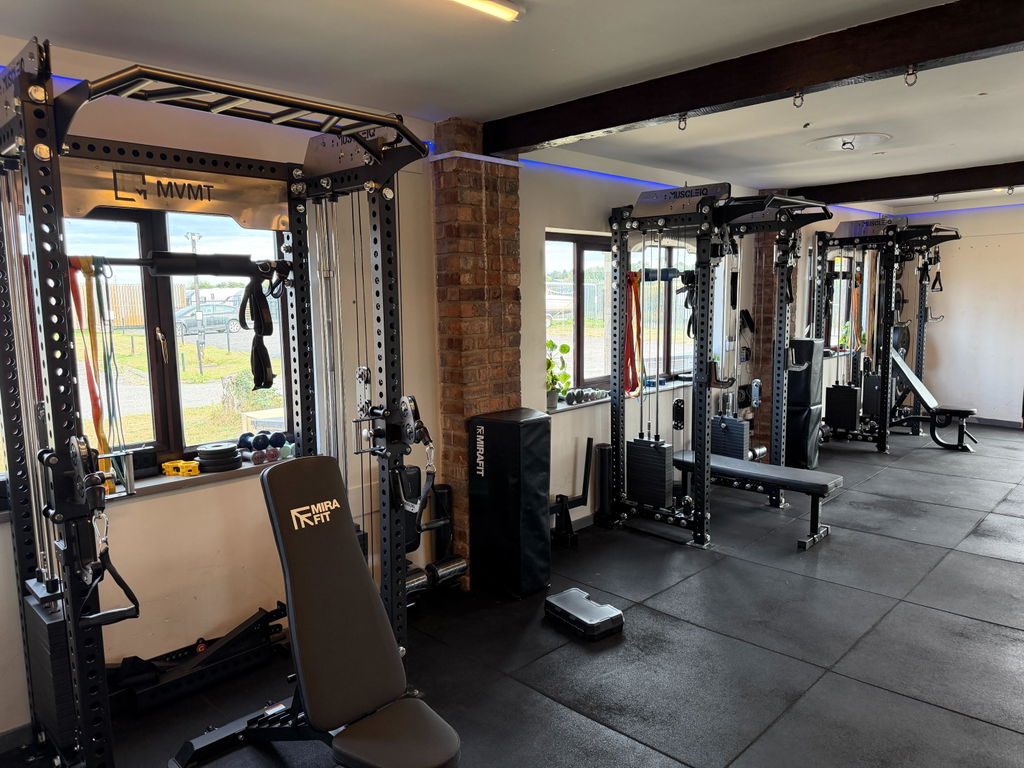

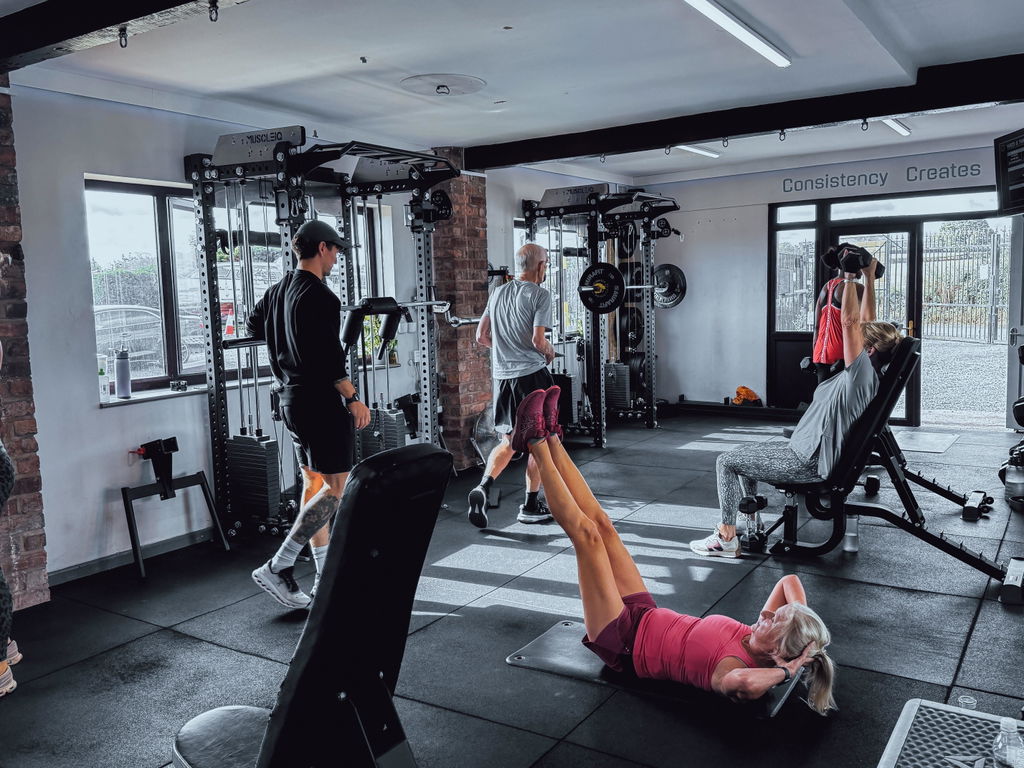

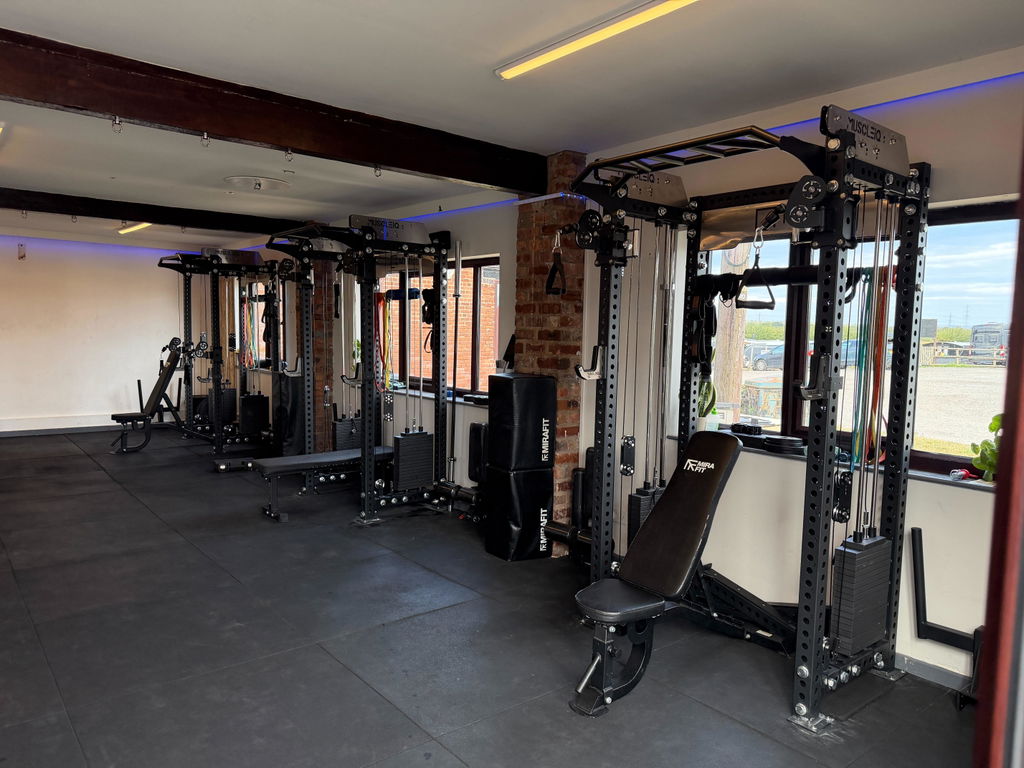

We run a small group PT gym and have 3 of these racks. Easy to set up and are well built. The cables run really smooth and the various attachment options are great. For each we've got the dip bars, pulldown seats, split squat pads and multi grip pull up bars
We first looked at the usual industry bands when refitting out the studio. But I can not tell you how glad I am we went with Muscle IQ
I've already mentioned about the build quality, never mind their customer service throughout it all. Very helpful and more important to me, clear as well
When we open up our second location, I'll be fitting it out fully with Muscle IQ again. Every bit of kit that I can will be through them
Our small business thrives on reviews, so I wanted to say my bit here
I don’t usually write reviews, but we are so impressed with the quality of this rack. We looked at other, more well-known brands and, to be honest, we were a little anxious about whether this was too good to be true for the price — but we needn’t have worried!

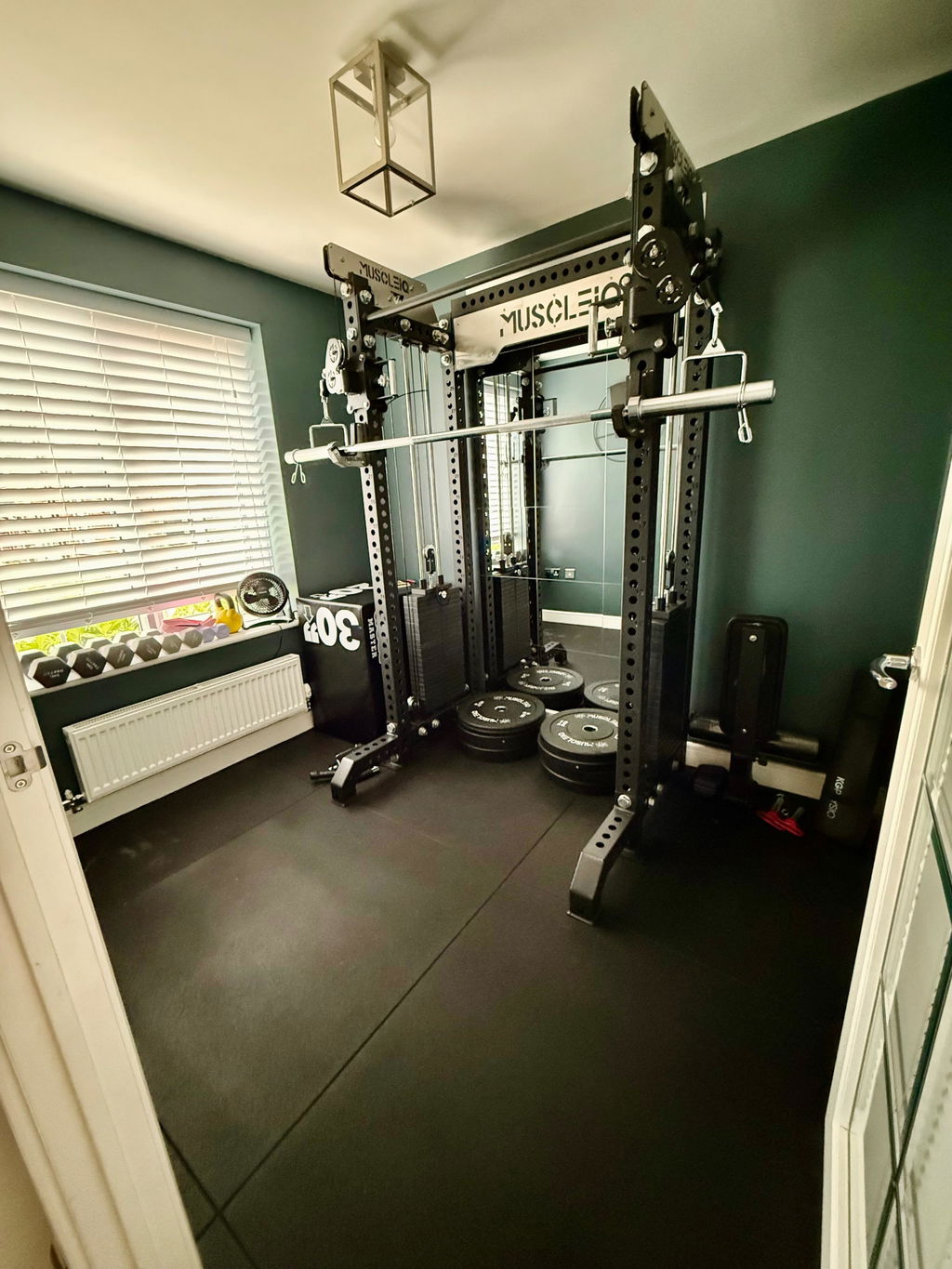

We bought the 213cm rack with the 120kg weight stack, 2:1 ratio, without the Smith machine. Our space is very limited at just 2.10m x 2.65m, and this compact setup is absolutely perfect for what we need.

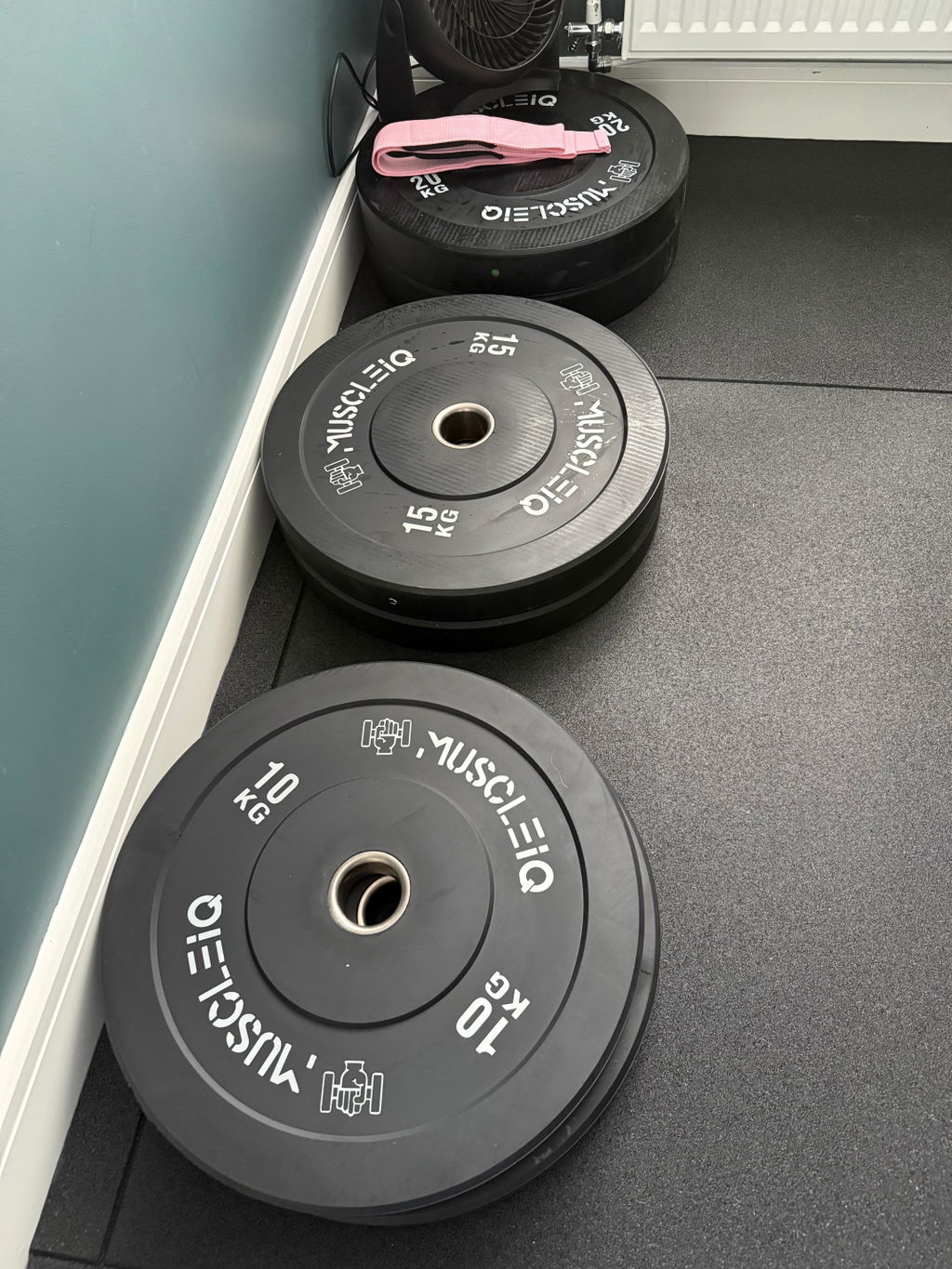

We also bought a barbell, 100kg of rubber plates, a bench, and various cable attachments, and everything is great quality.

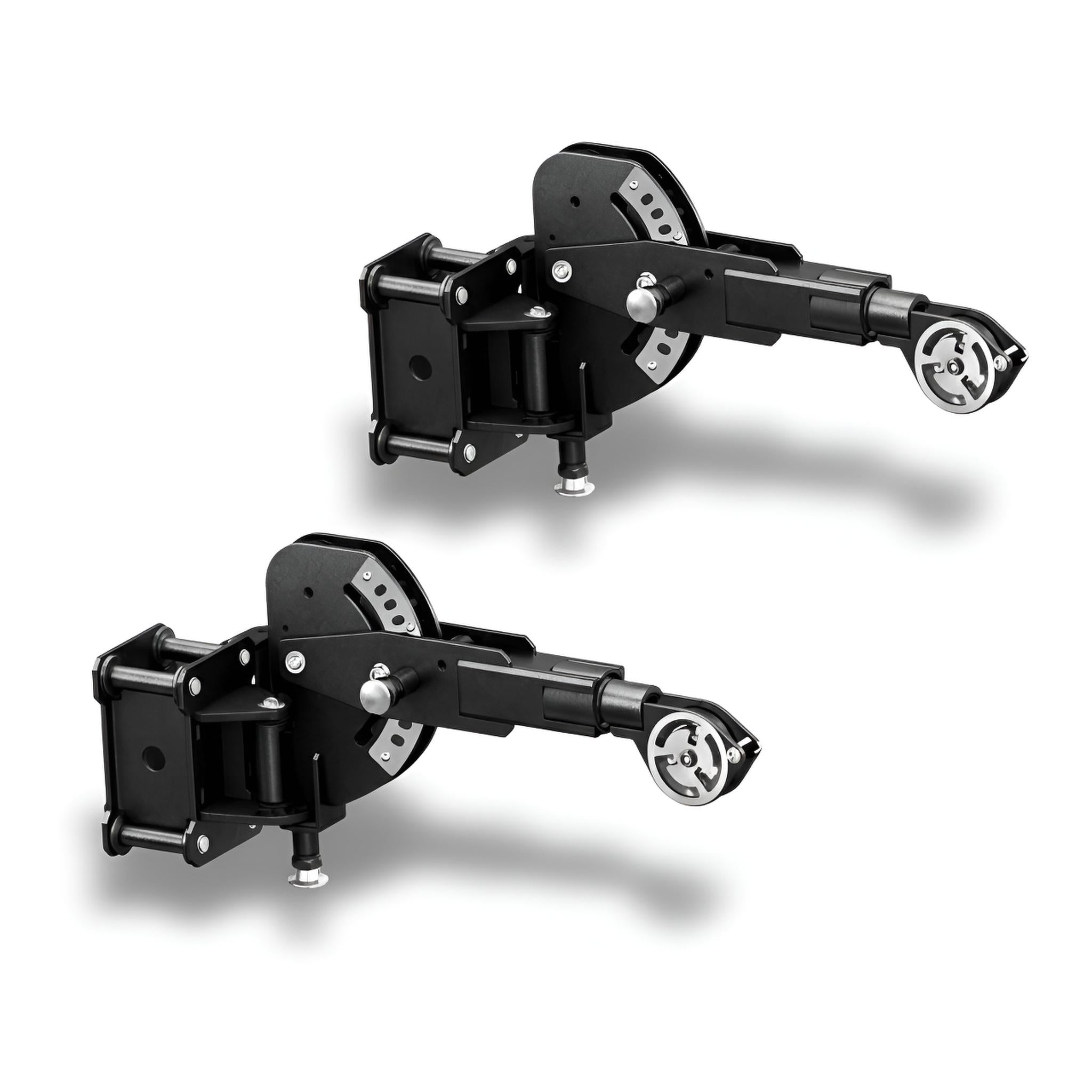

My only regret is not upgrading to the swivel arms. Due to the height of our setup, it would have been useful to be able to open the cables out a little more and gain some extra height.
The instructions are fairly basic, but it was straightforward to set up. My partner managed to put the whole thing together in one afternoon, with two small kids in the mix!
Overall, we’re really pleased with our purchase and would definitely recommend this product.
I have been massively impressed with the quality of the kit from Muscle IQ. Everything feels gym quality and looks awesome.
I bought a Multi Functional Power Rack with 1:1 90Kg Stacks. This is a serious piece of kit. The build quality is excellent. Absolutely zero movement when the rack is complete and the cable pulleys are super smooth.

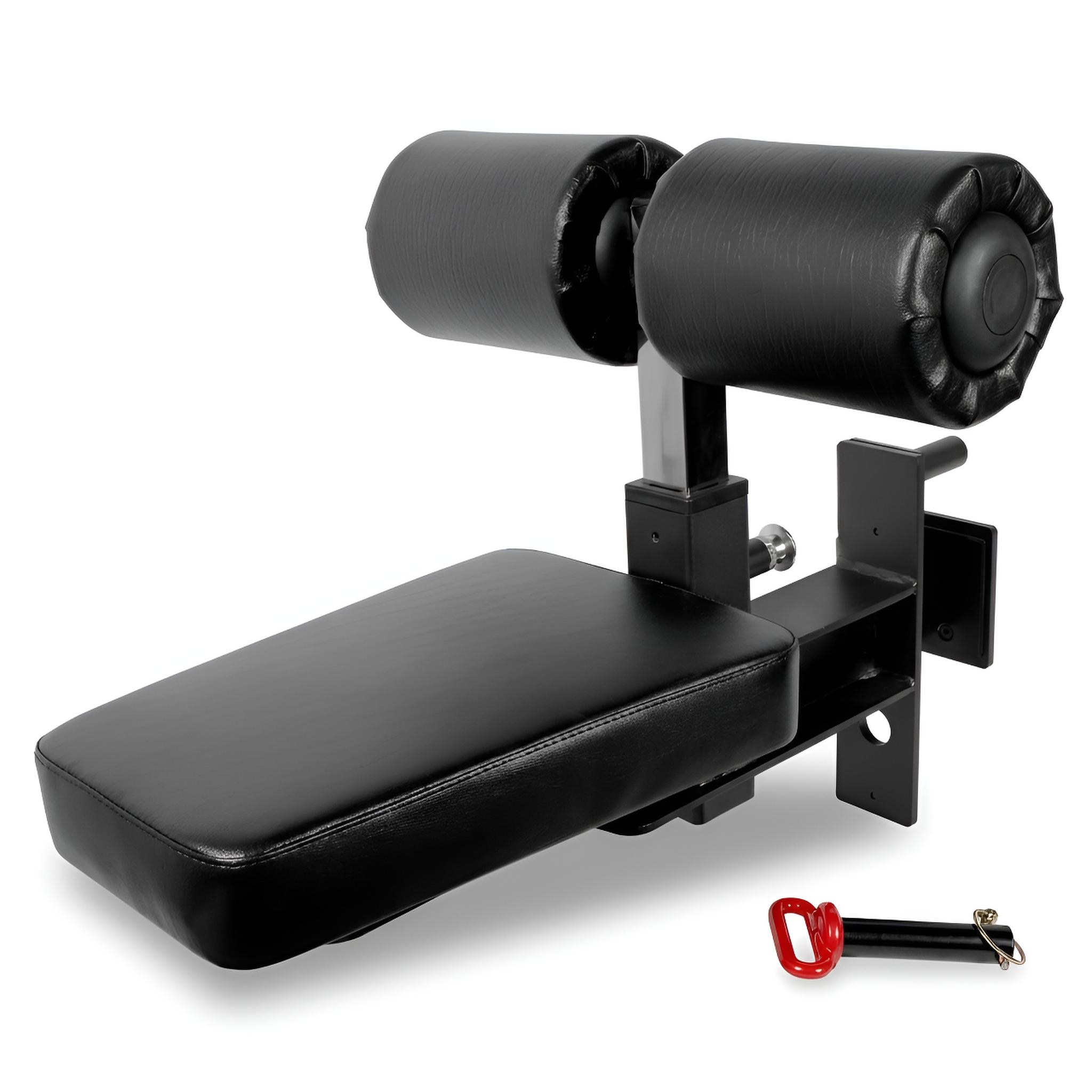

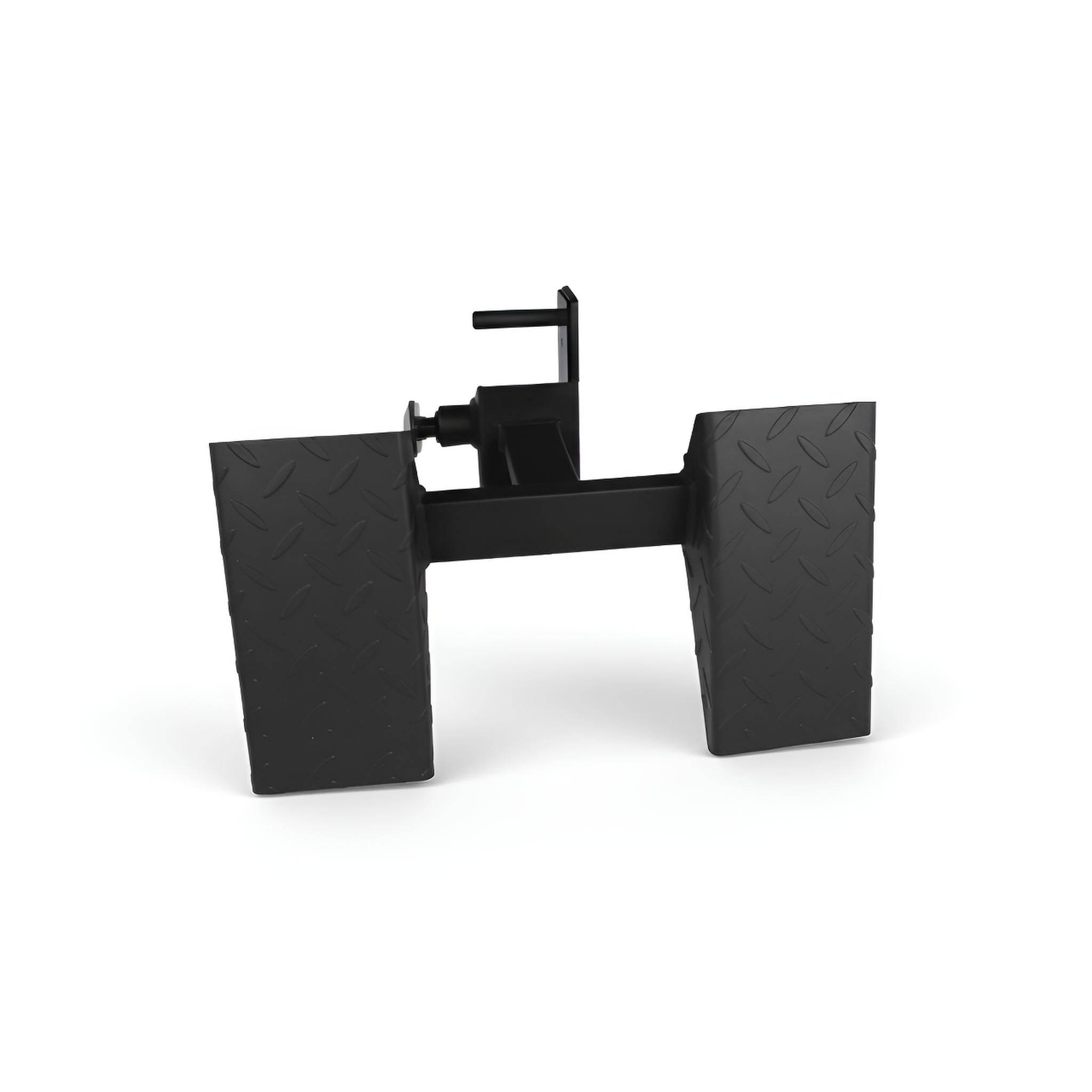

The accessories are also great quality I bought the lat pulldown seat, the cable pull footplate and the landmine attachment. All are completely solid and easy to fit.
Along with the rack I got the Olympic Fleck Bumper Plates and my rubber flooring. Both look great and work really well. The floor was super easy to install.
I did a lot of research before I went ahead and I don’t think there is anywhere else you can achieve the value and quality of Muscle IQ.
Finally to add, the customer service has been great. I accidentally cut my cable too short, they sent me a replacement FOC and it was here within a couple of days.
Thanks Muscle IQ!
Just assembled this and I am so impressed with the build quality. Absolute breeze to build as all bolts are the same size, no fiddling with anything and dont really need the instructions.
I purchased the 215cm 90kg 1:1 and I can honestly say I doubt I will ever outgrow this weight. I was really struggling with my older cable machine and squat rack as they took up far too much space. This machine is a blend of both and very shallow. Absolute game changer for people with limited room.
I may even remove the front support legs and bolt back frame to the wall for even more space when not in use.
The J hooks and squat bars are of superior quality. I am very impressed with the aluminium cable wheels as these are usually the first to break on inferior models.
Overall I am very pleased with this. Also, just to add. The customer service at this company is probably the best I have ever recieved. I was on chat at 10pm with them to place my order and I recieved it the following week A+
This was actually the cheaper option in comparison to other commercial style machines. And I am more than confident this is of better quality.
Well done guys. 👏
I ordered my rack in October and got it delivered last week.
Assembly is very straightforward and the instructions are clear and easy to follow.
The rack came in multiple pieces which were packed with care and no imperfections were seen.

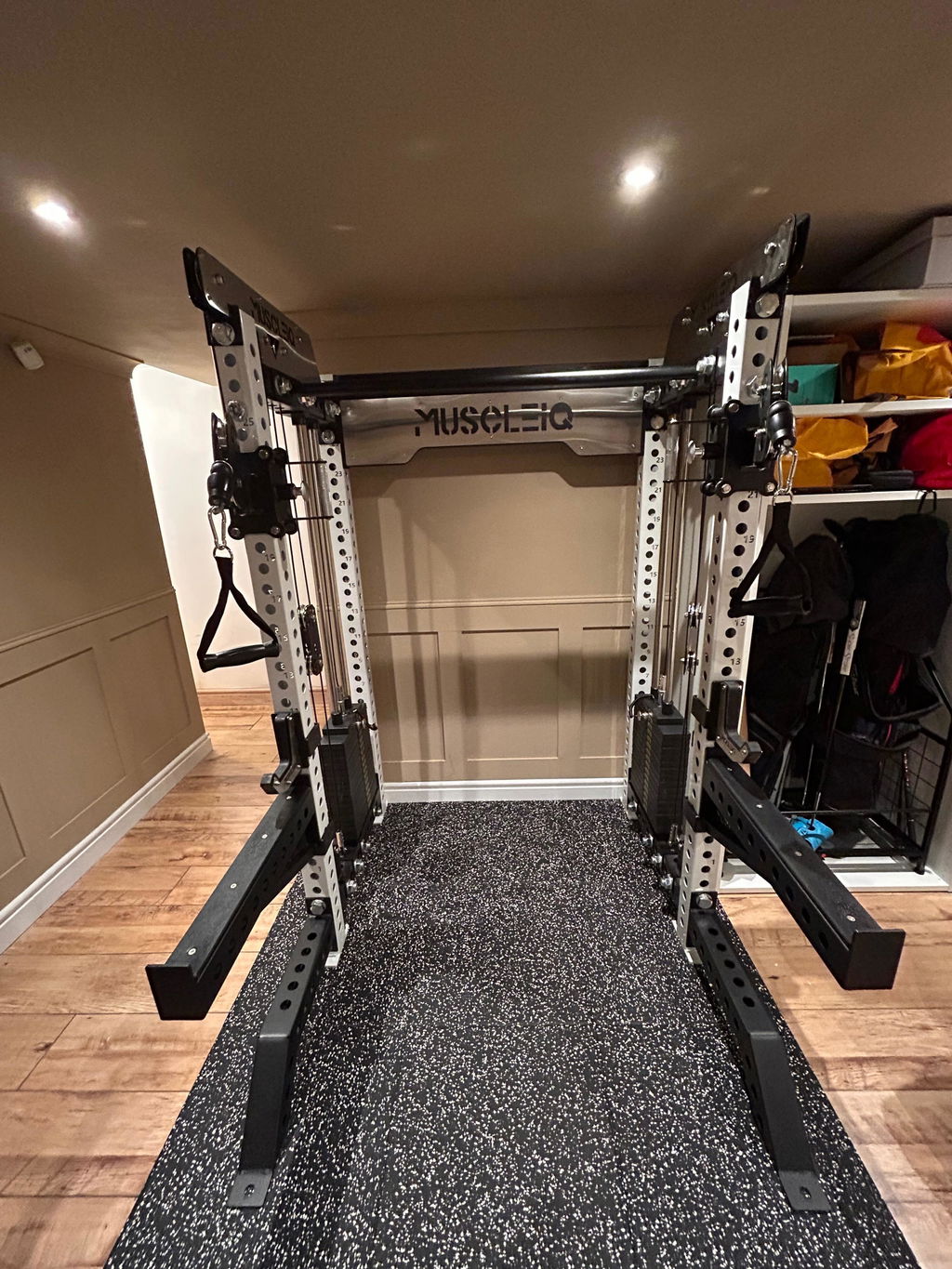

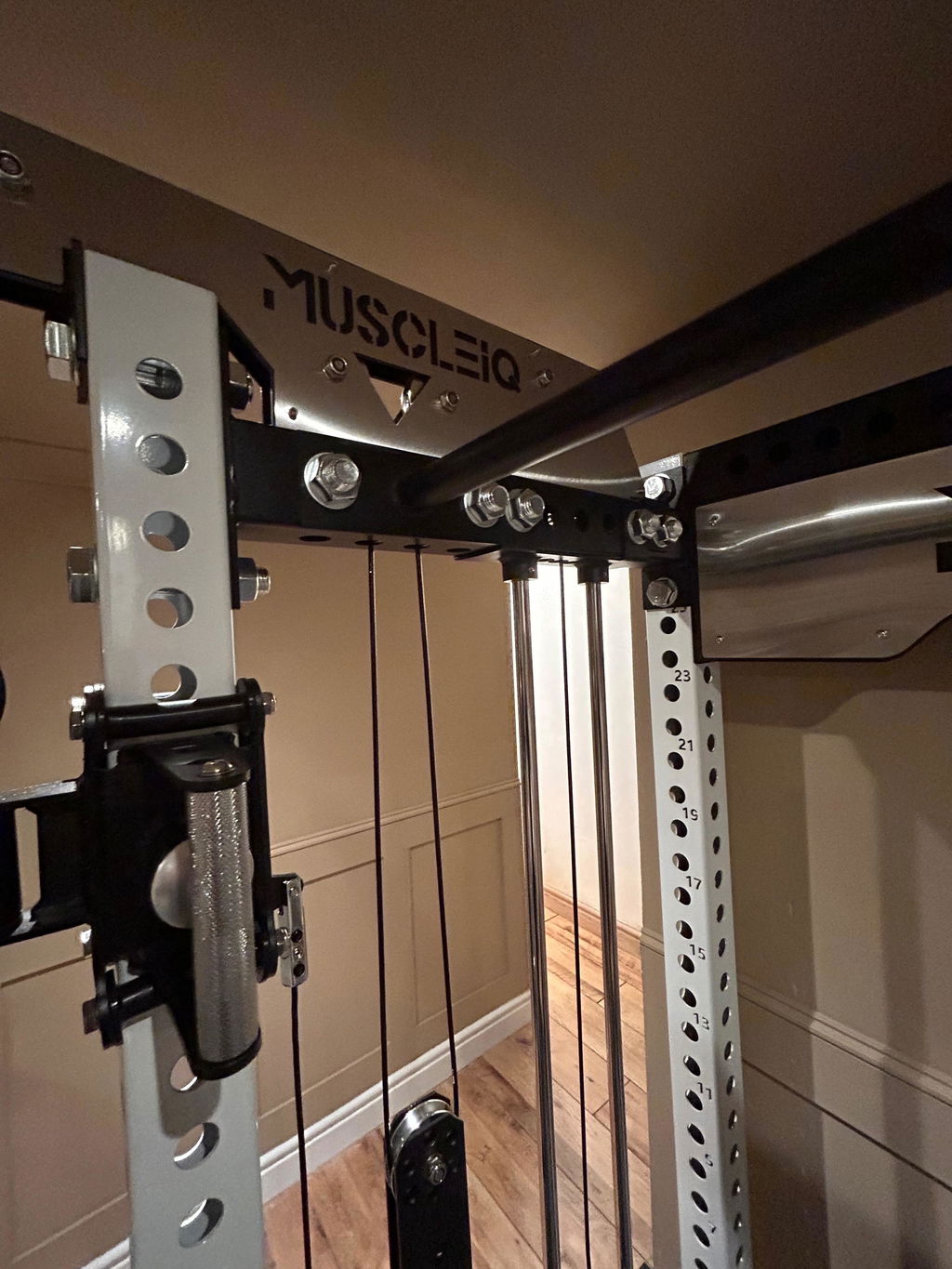

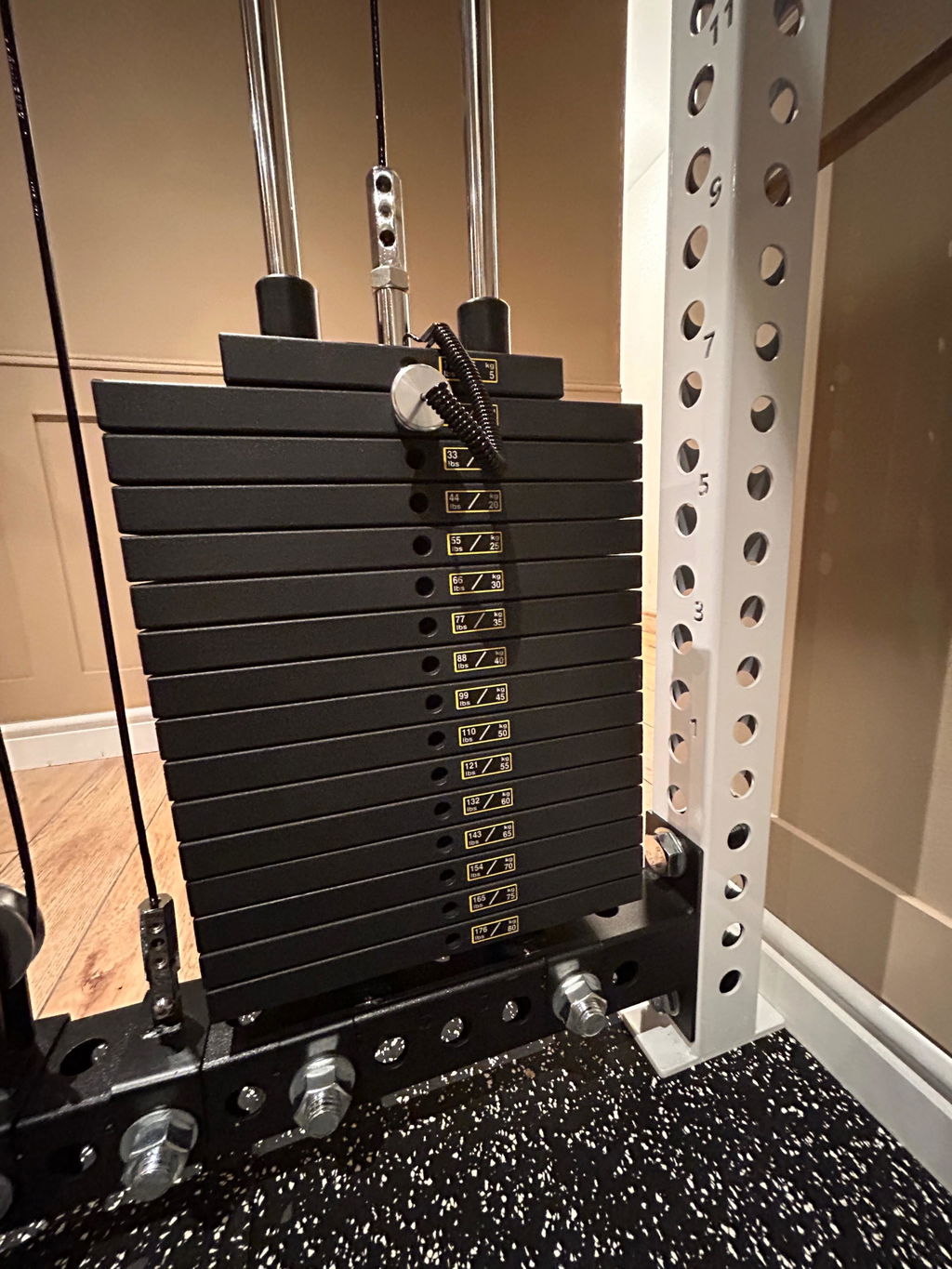

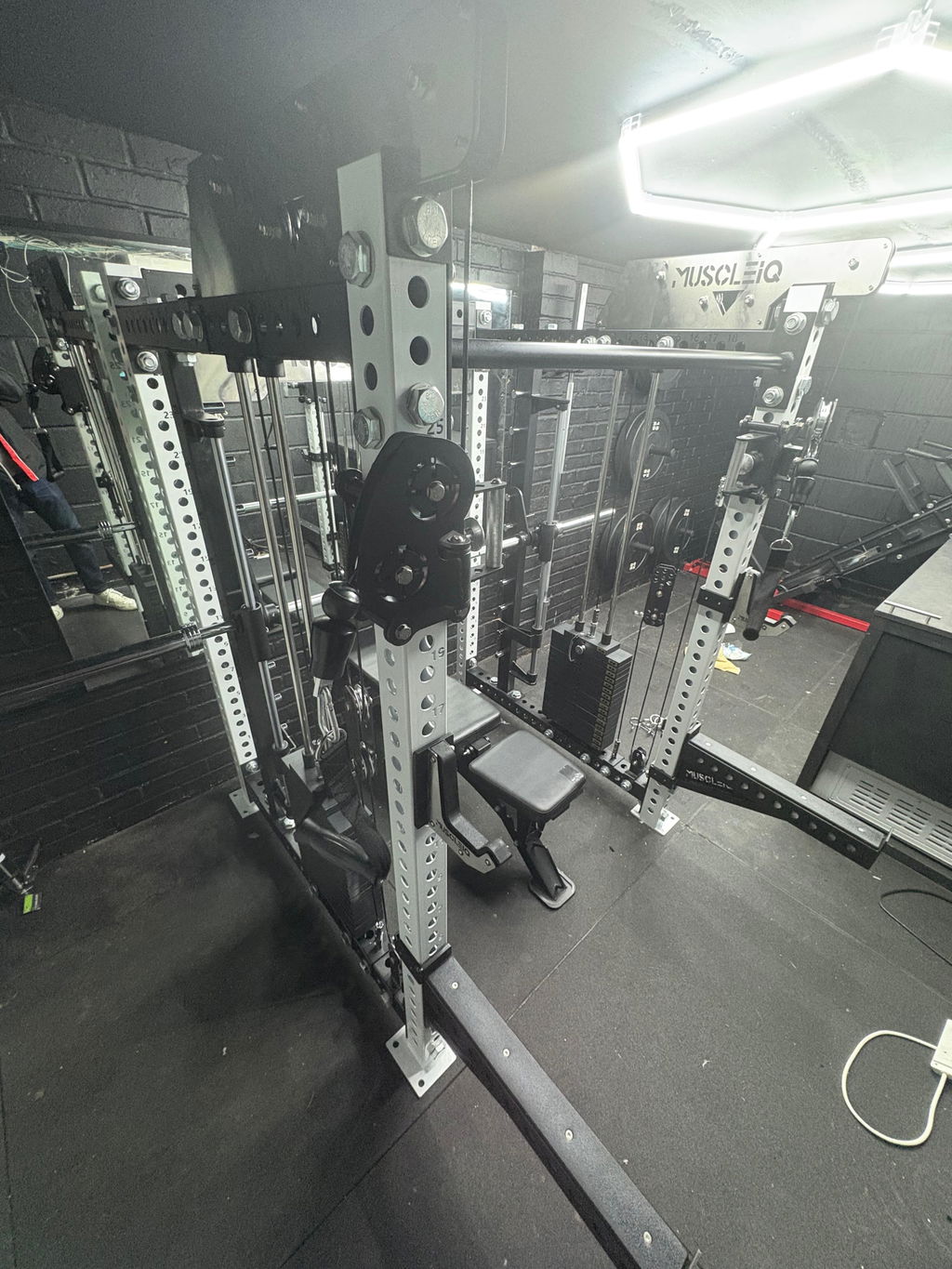

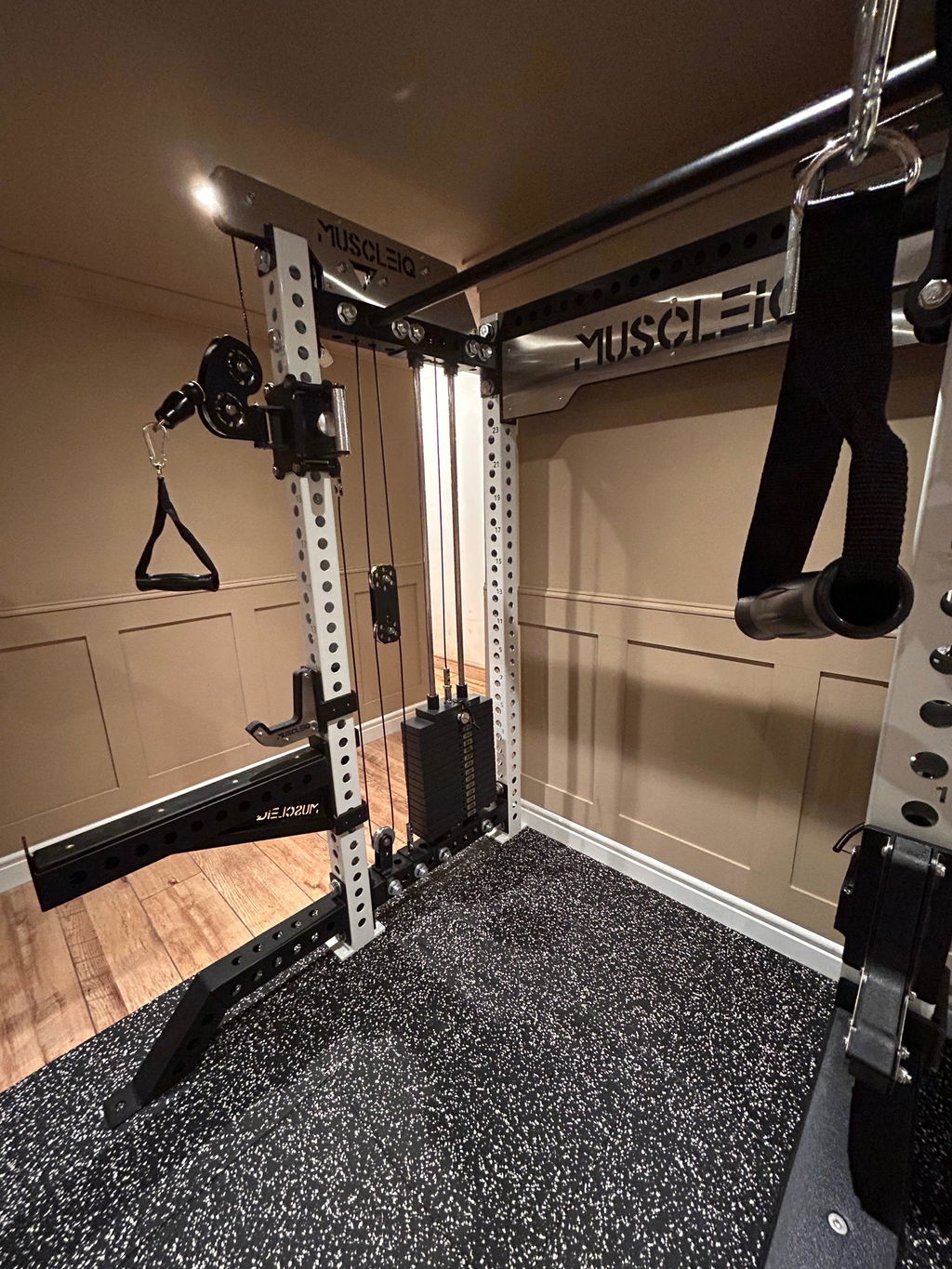

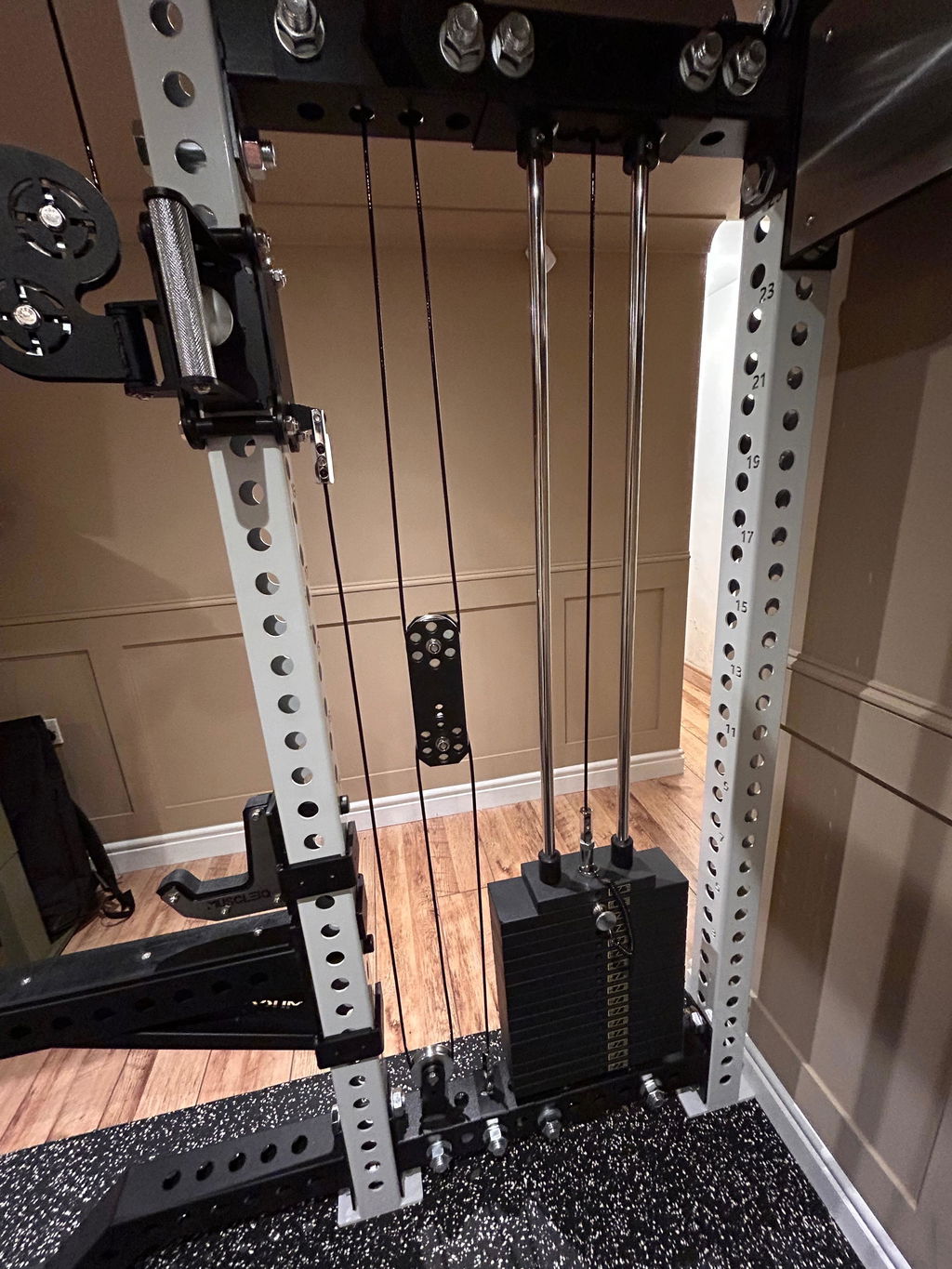

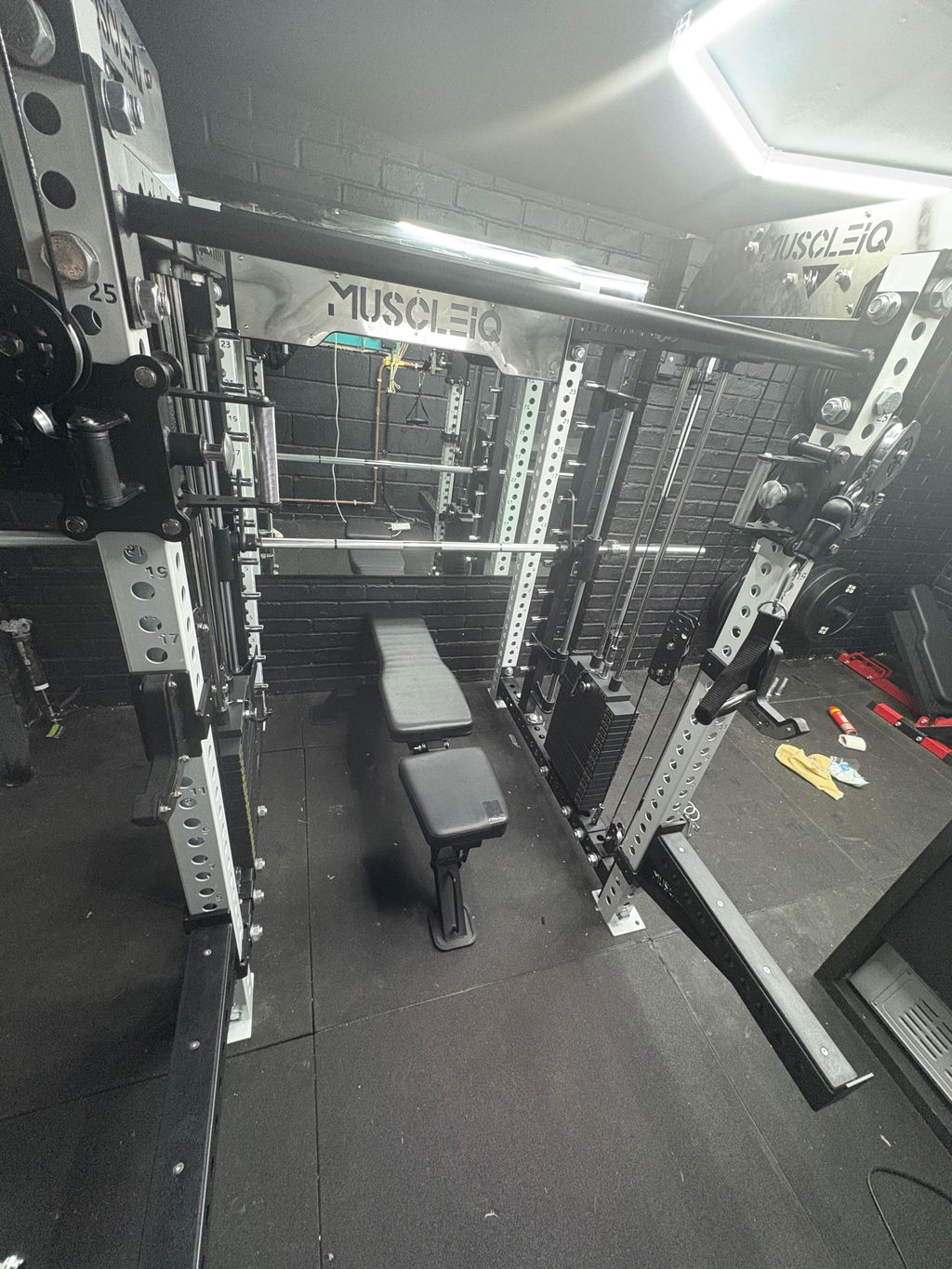

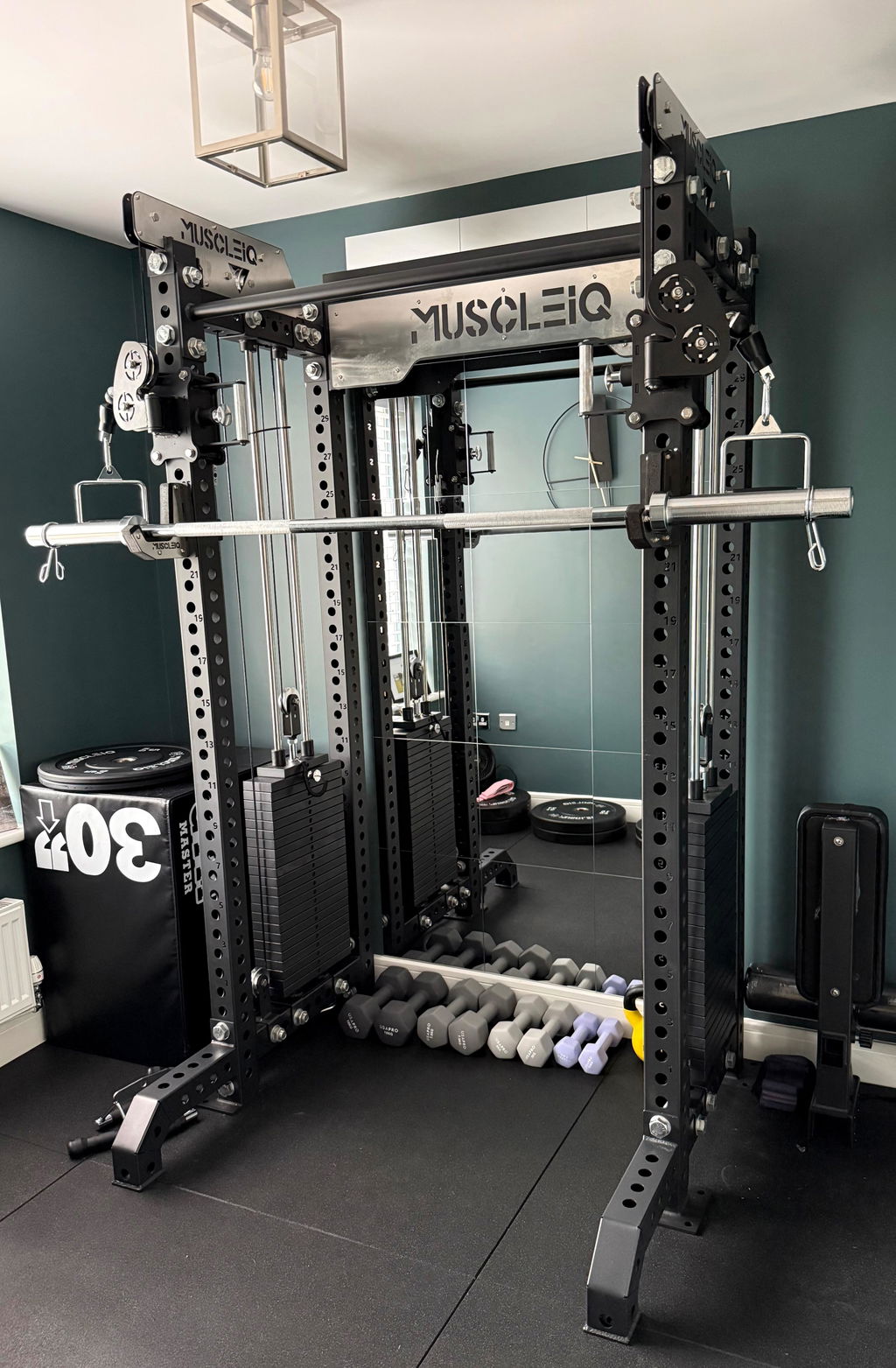

I have attached some pictures of how it looks in my basement gym and overall i could not been happier. Very good quality and great looks!
PS: rack height is 185cm
I bought this power rack due to its brilliant amount of customisation, it is the only power rack I could find that allowed differing height options.
I bought the full kit, power rack, 90kg 1:1 and the smith machine which is all absolutely fantastic, it fits great in my garage (my ceiling is 200cm high).
Took a few hours to put together, you can do it yourself but it would be easier if you had someone else to help.
Had never heard of this company before I made this huge purchase so I was a little nervous, especially with the wait time but now I’m so glad I waited, it’s perfect. (Not like I would’ve had another option anyway! No other company does adjustable height!)
Trust me, save yourself the time and once you find this rack just get this one, there aren’t any others like it, I spent weeks looking.
I ordered mine early October and I received it yesterday (luckily quicker than the 12 weeks and just in time for the Christmas delivery slowdown!)

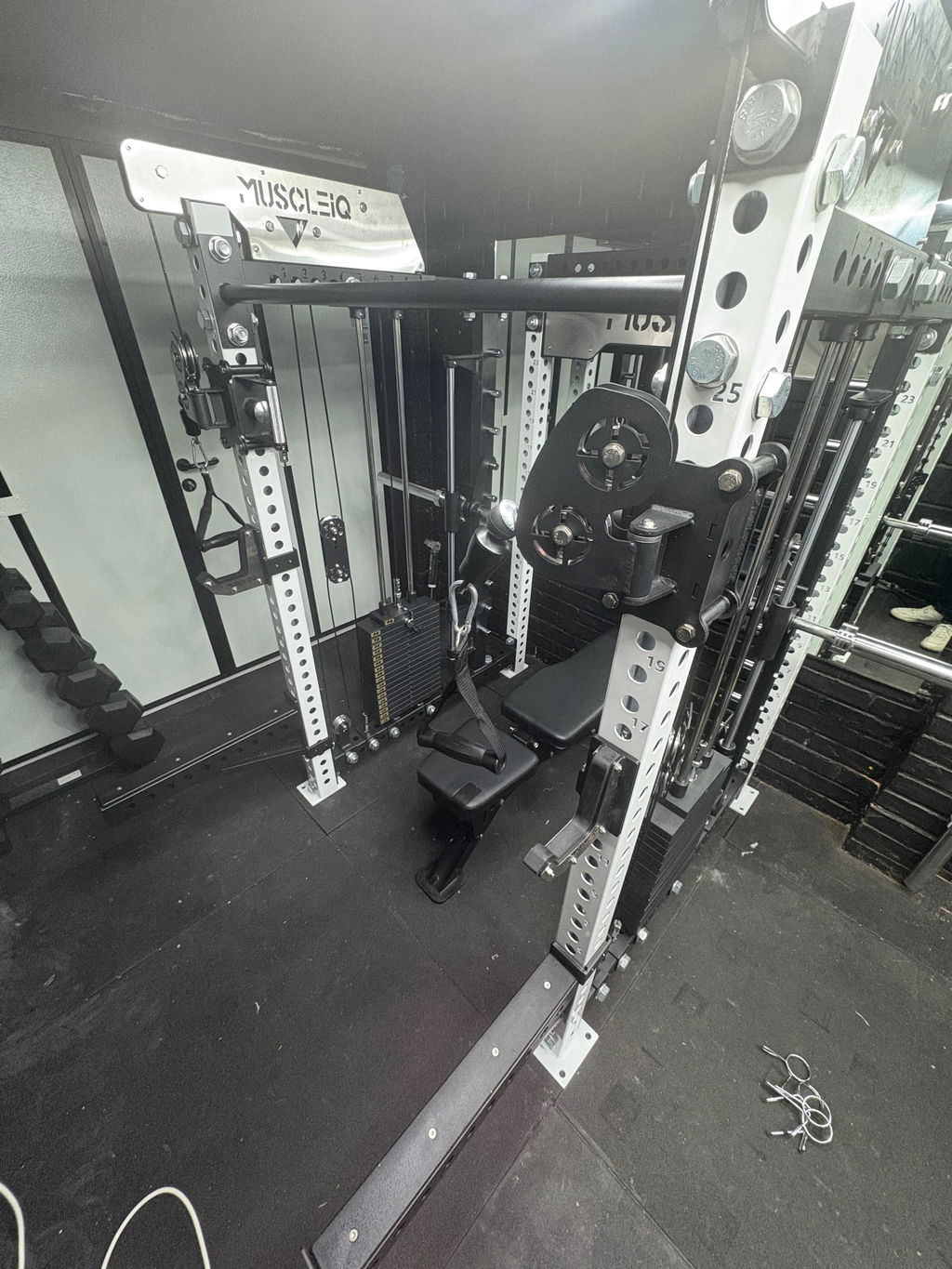

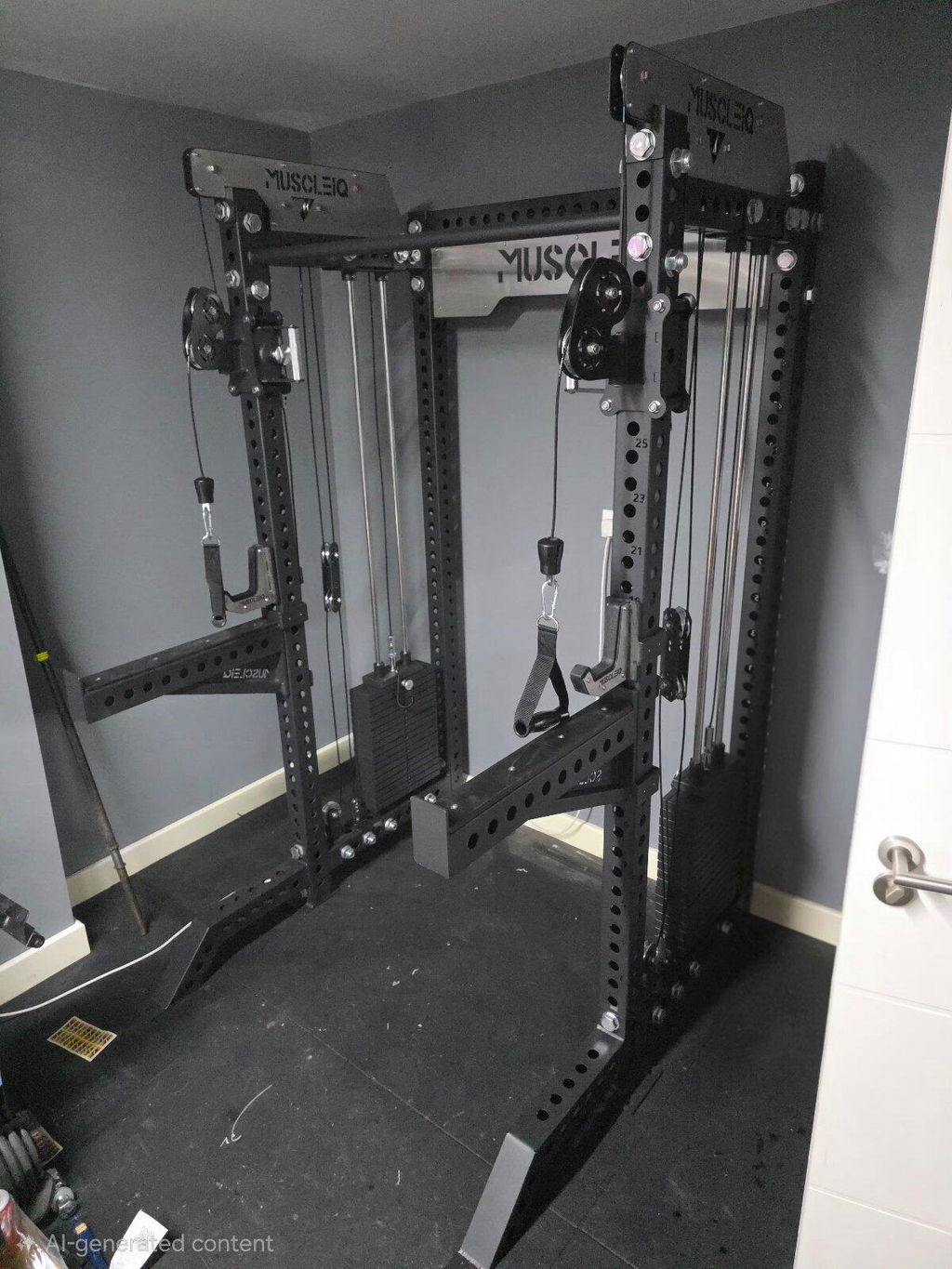

I’ve attached some photos of the rack in my garage gym (my gym is not finished do not judge me!!)
Fantastic piece of kit
Choose the 185cm high as only have 190cm ceiling. Overall the rack is amazing same quality as one in the gym i use to use. I chose weight stacks 90kg on each side and then the smith machine is literally perfect for squats and chest press, fitted perfectly in the garage. I also picked up a bench and leg curl. Super happy good quality worth the money and easy to build with 2 people my husband and i spent an eveing putting it together. Super happy and commercial grade bit of kit for our garge. Thank you again
