Multi Functional Power Rack with Smith Machine
Multi Functional Power Rack with Smith Machine
Regular price
£1,575.00
Regular price
£2,750.00
Sale price
£1,575.00
42% off
Unit price
per
Taxes included.
Shipping calculated at checkout.
Enhance your setup
Colour(MANDATORY)
Upright Color | Metallic*
Black
white
Grey
Red
Yellow
Green
Blue
PULL UP BAR*
STANDARD BAR
MULTI GRIP BAR
SPHERE PULL UP BAR
CHIN UP BAR
Attachments
Adjustable Jammer Arms
Adjustable Chest Support
Leg Press
Leg Roller
Storage Pins
Landmine
Preacher Curl
Lat Pull Down Seat
Seated Row Footplate
Belt Squat
Leg Curl
Dip Handles
Monolifters
Shoulder Boulder & Chest Fly
6 Tier Mounted Rack
Swivel Arms
Hack Squat
Plate Loading Pins
Dumbbell Shelf
Storage Board
Dumbbell Holders
Storage Tray
Cable Attachments
5 Set Lat Pulldown Handles
Tricep Seat Row
Bar Spreader
Narrow Grip Handle
V Shaped Press Down Handle
Tricep Push Down
Multi Grip Handle
Lat Pulldown Bar
Tricep & Bicep Bar
EZ Bar
Straight Bar
Strip Up Handles
Seated Row
Tricep Rope
Landmine Row
Dual straight Bar
Total:
£1,575.00
This item is made to your size please allow 8-12 weeks

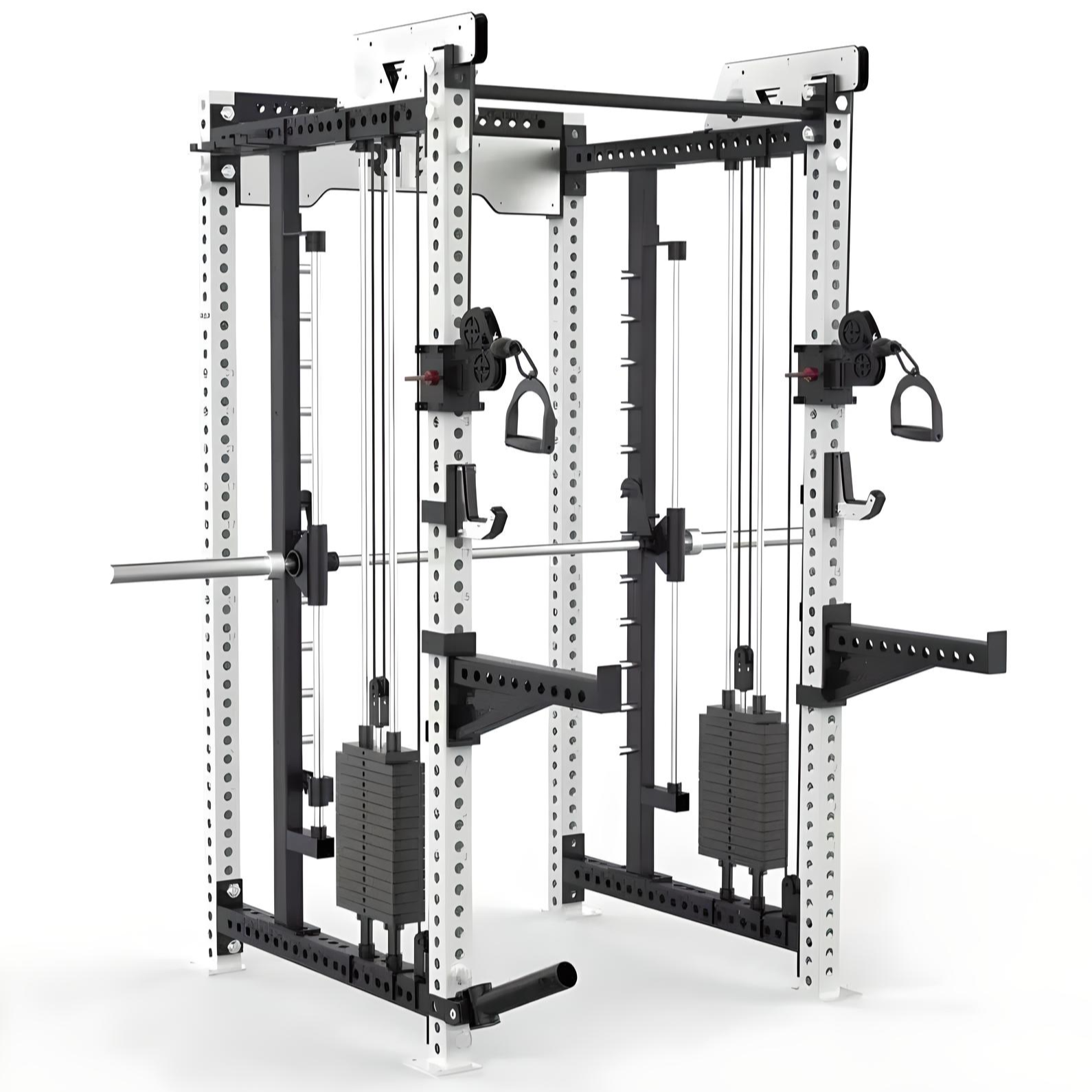

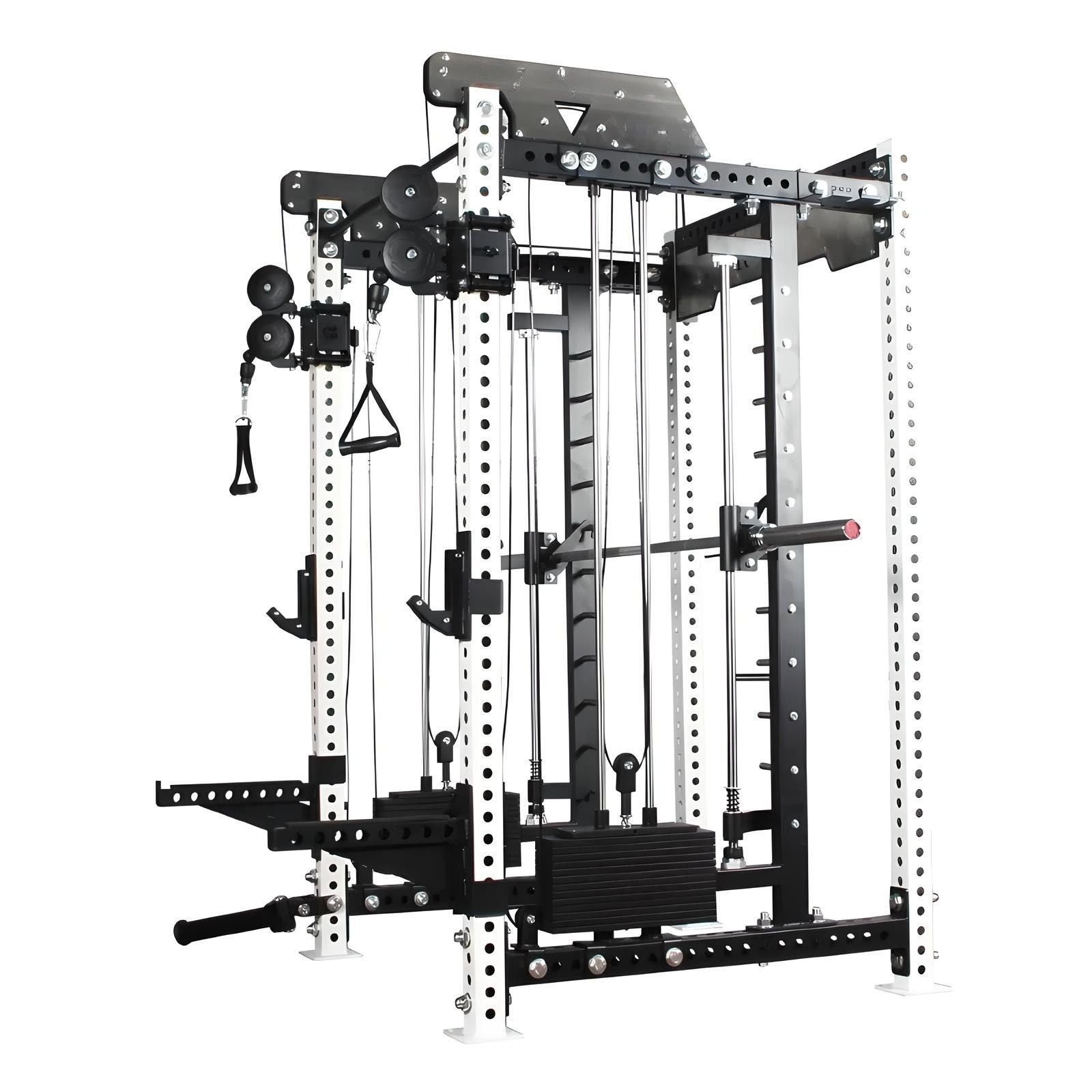

Commercial Fitness Multi-Functional Power Rack – Smith Machine with Cables & Weight Stacks
Build your ultimate home or commercial training station with this all-in-one rack. Fully customisable in size and setup, designed for serious strength athletes and home gym enthusiasts.
Product Overview
The Commercial Fitness Multi-Functional Power Rack combines the benefits of a power rack, Smith machine, and cable system into one robust training hub. Built with heavy-duty 75mm x 75mm (3" x 3") steel tubing and 3mm thick, this rack is engineered for stability and performance even under the heaviest loads. Max load 500kg
Key Features
All-in-One Training System
Power rack, Smith machine, and dual cables combined in one space-saving unit for full-body strength training.
Heavy-Duty Commercial Frame
Made from 75×75mm 11-gauge steel for outstanding stability and long-term durability under heavy loads.
Smooth & Customisable Cable System
Aluminium pulleys ensure smoother movement. Choose 1:1 or 2:1 ratios and weight stacks up to 120kg per side.
Fully Adjustable to Fit Your Space & Training
Select your rack height (185–235cm) and use 1” holes with 50mm spacing for wide attachment compatibility.
Benefits
Fully Customisable Setup
Adjust the height, weight stacks, and attachments to perfectly match your space and training style.
Complete Full-Body Training
Press, pull, squat, row, curl and more — one machine covers nearly every strength exercise.
Heavy-Duty & Stable Build
A robust frame and Smith machine guidance provide the strength and safety needed for serious lifting.
Smooth, Controlled Cable Movement
Dual pulleys deliver consistent resistance and fluid motion for safer, more effective workouts.
How to use
Train every major muscle group with this all-in-one power rack system:
- Chest & Triceps: Bench presses, Smith machine presses and tricep pushdowns to build upper-body strength and pressing power.
- Back & Posture: Lat pulldowns, low rows and pull-ups to strengthen your back, improve posture and build a solid upper frame.
- Legs & Glutes: Squats, deadlifts and accessory lower-body work to develop strength, power and muscle through the legs and glutes.
- Arms & Shoulders: Cable curls, accessory raises and pressing variations to build arm size and well-rounded shoulder strength.
- Core & Functional Strength: Use free-weight and cable movements for stability, control and full-body conditioning.
Product Specifications
What's Included
| 2 × Front Stabilisers (Power Rack Only) | Provide extra stability and support for the rack during heavy lifts. |
| 2 × Sandwich J-Cups | Securely hold your barbell while protecting the knurling from damage. |
| 2 × Spotter Arms | Add an extra layer of safety when lifting without a training partner. |
| 2 × Rubber D-Handles | Durable cable attachments ideal for rows, curls, and pushdowns. |
| 1 × Standard Pull-Up Bar | Perfect for pull-ups, chin-ups, and upper body bodyweight training. |
| Aluminium Pulley Upgrade | Smoother cable movement with reduced friction compared to plastic pulleys. |
| Adjustable Trolley Gliders | Knurled grip handles with quick-release adjustment for fast, secure positioning. |
Technical Specifications
| Frame Size | 75mm × 75mm uprights (3" × 3") heavy-duty steel construction |
| Steel Specification | 3mm thick 11-gauge steel for maximum strength and stability |
| Overall Height Options | 185cm, 195cm, 205cm, 215cm, 225cm or 235cm |
| Total Width | 2200mm including Smith machine, 1290mm rack only |
| Inside Rack Width | 1050mm between uprights |
| Rack Depth | 650mm (rack only), 1260mm with stabilisers, 1275mm with Smith machine |
| Hole Spacing | 1" holes spaced at 50mm intervals for attachment compatibility |
| Smith Machine | Integrated system with safety stoppers and 20kg barbell |

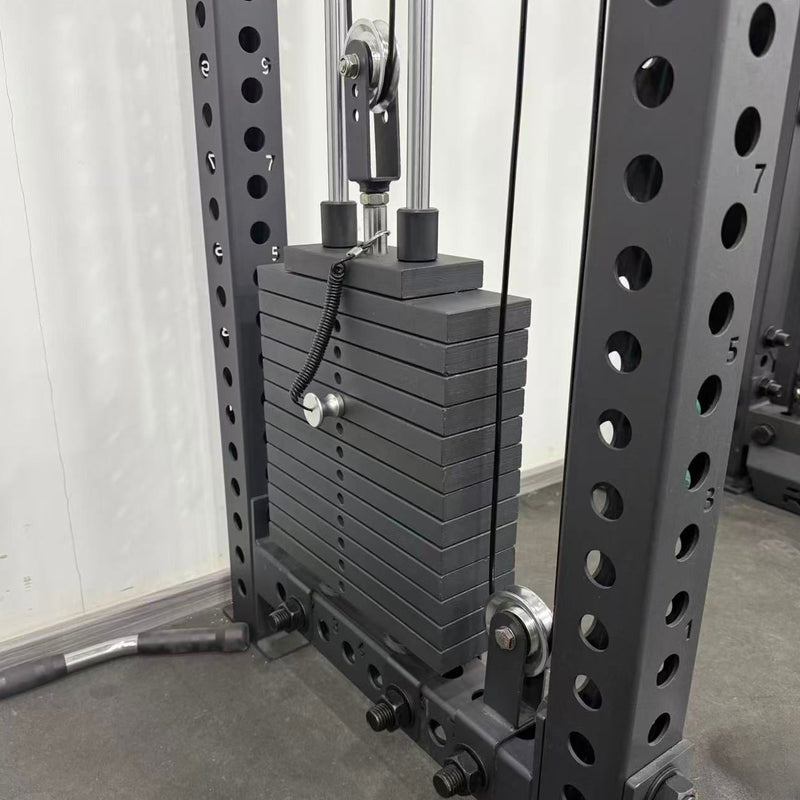

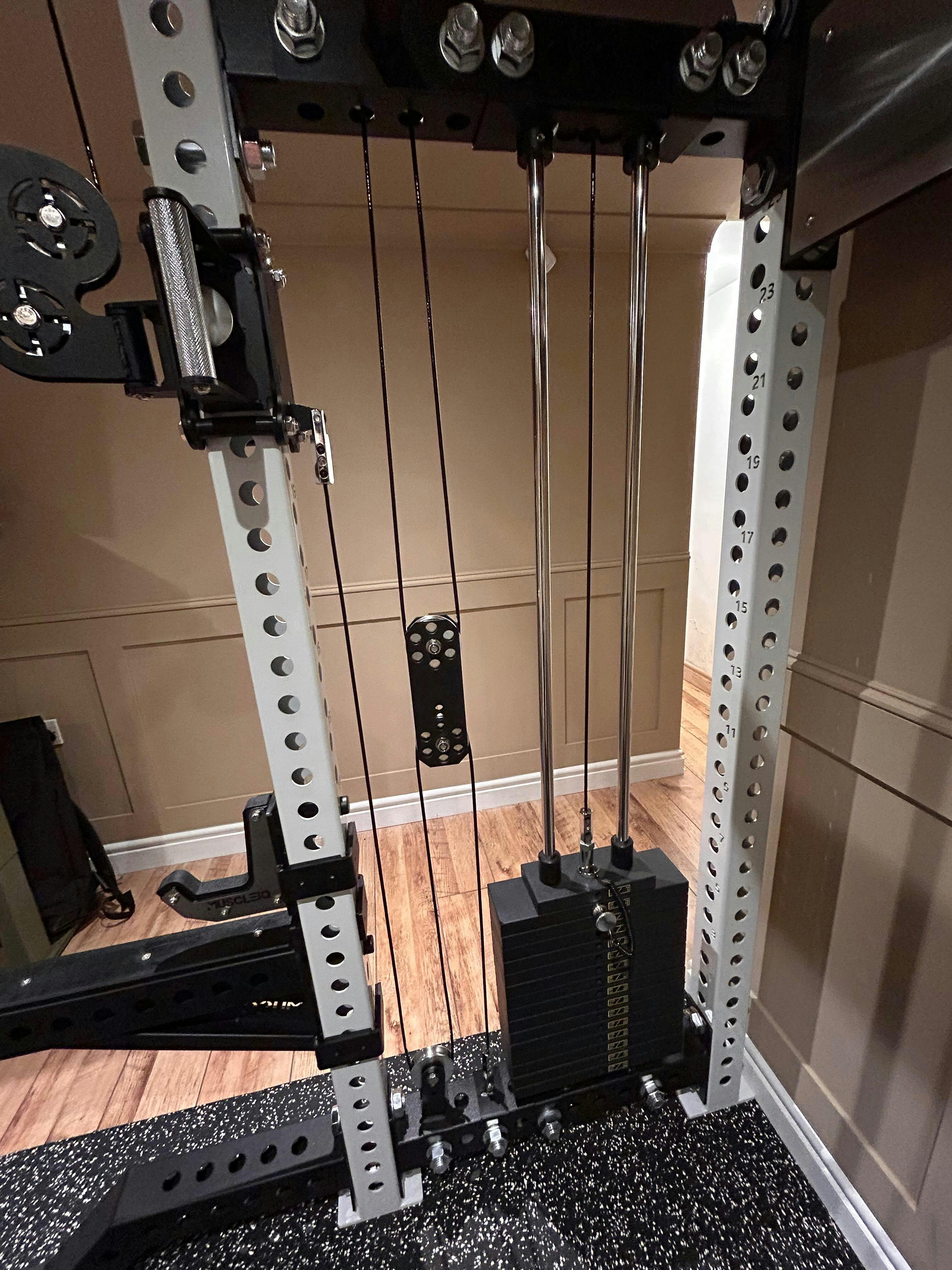

| Cable System | Dual adjustable pulley system with selectable weight stacks |

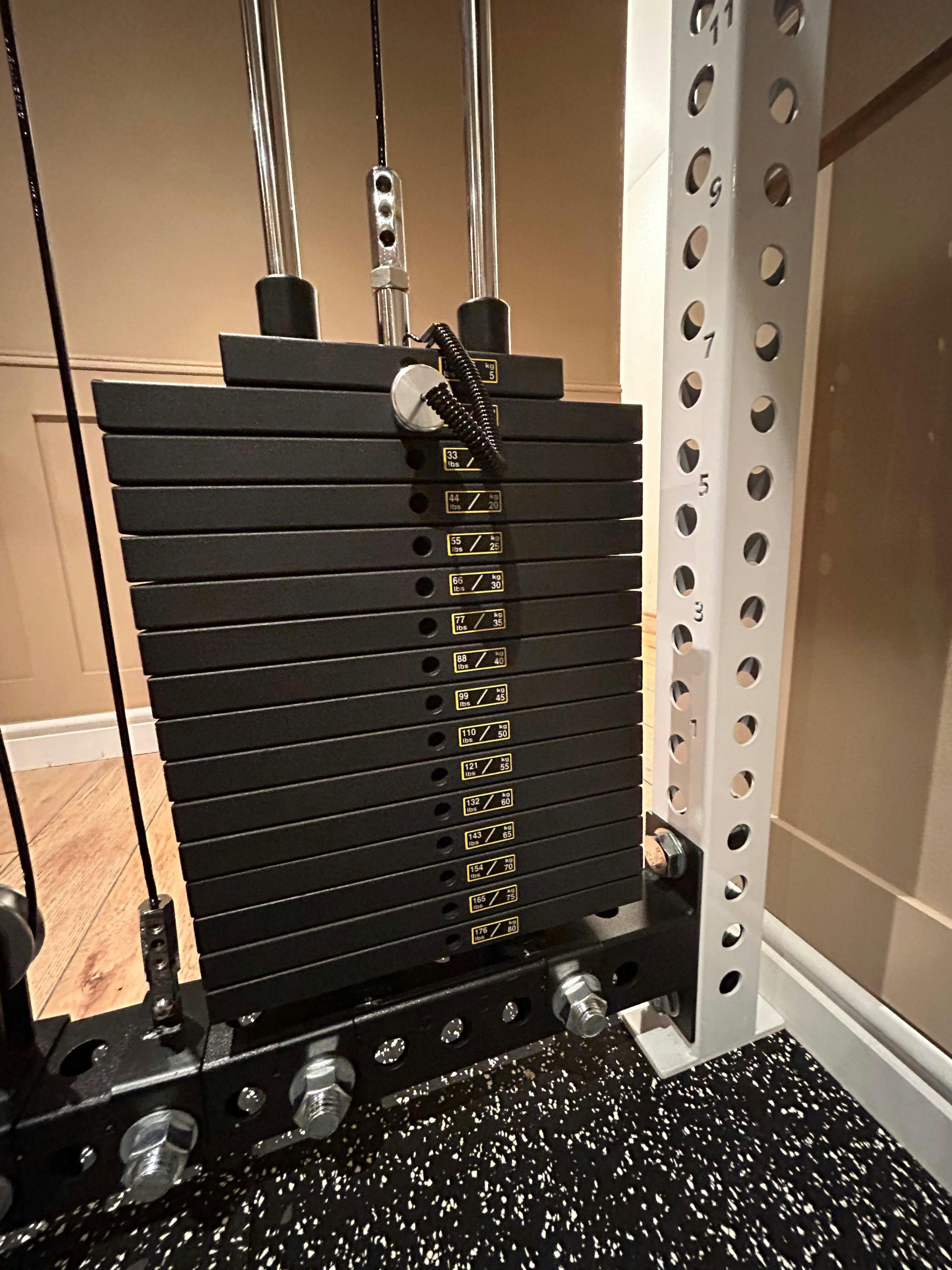

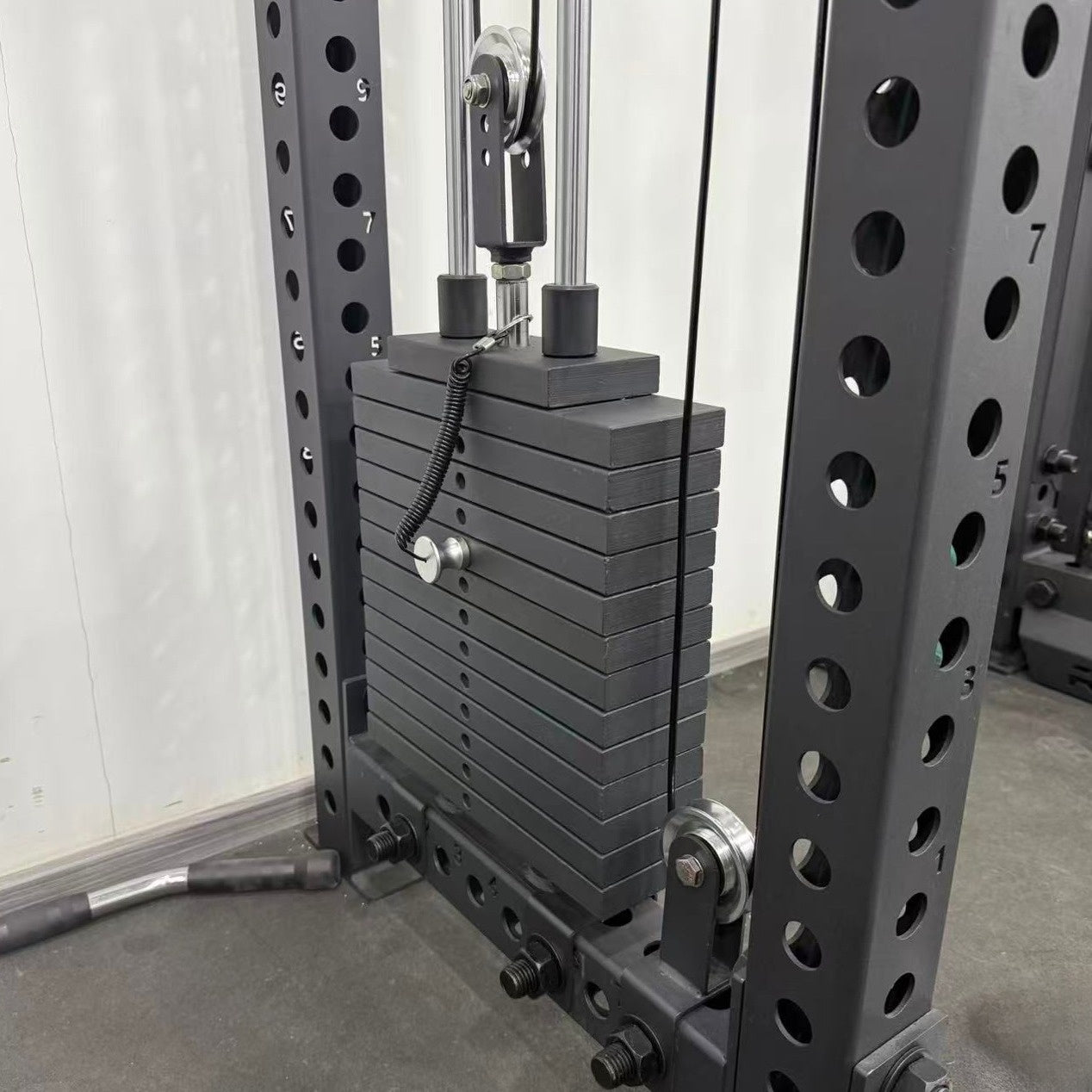

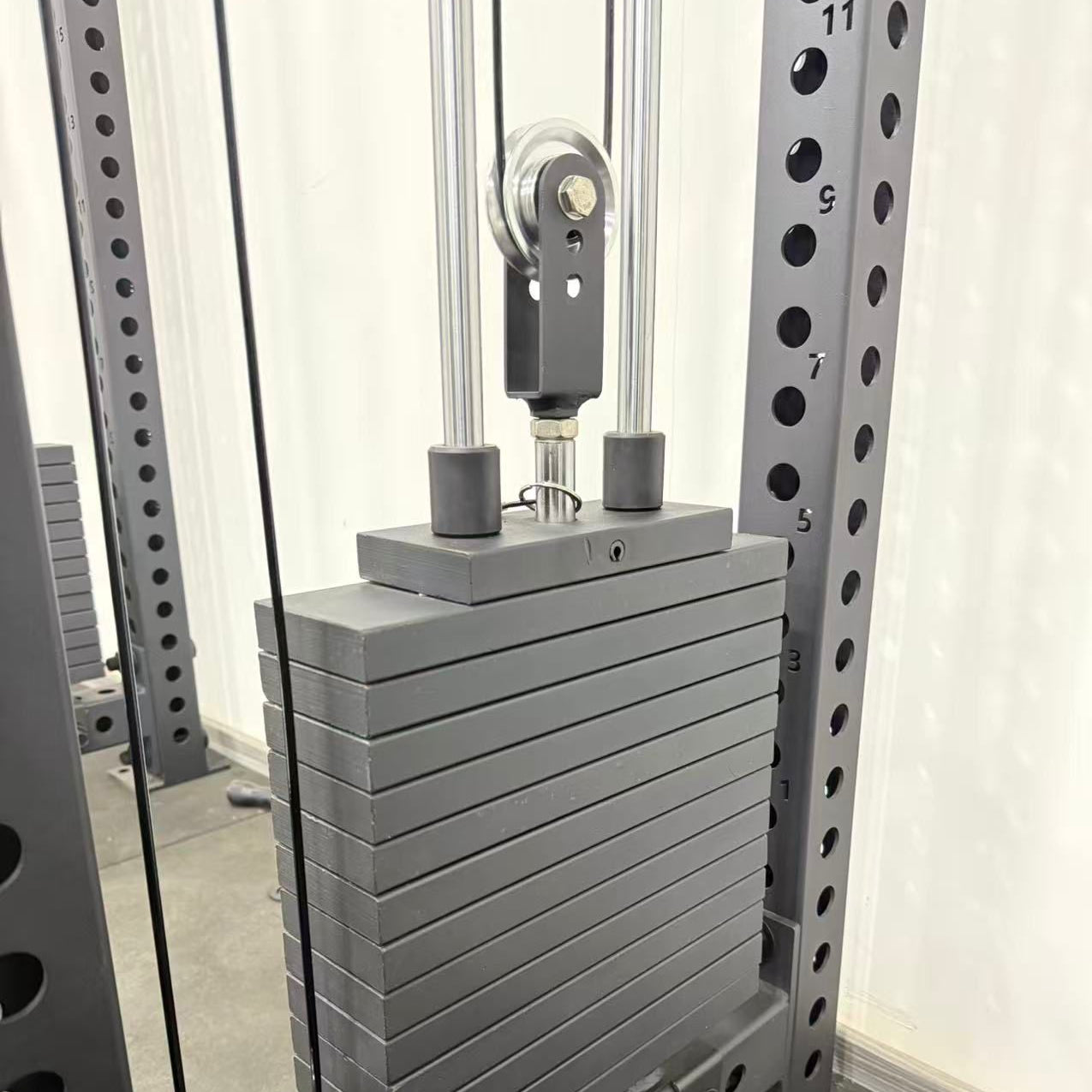

| Weight Stack Options | 80–120kg per side (maximum combined 240kg) |
| Max Load Capacity | Rated to handle up to 500kg |
| Floor Mounting | Rack can be bolted down; depth reduces to 650mm without front legs |
| Warranty – Frame | 5-year warranty on the power rack frame |
| Warranty – Cables & Accessories | 12-month warranty on cables, pulleys, and attachments |

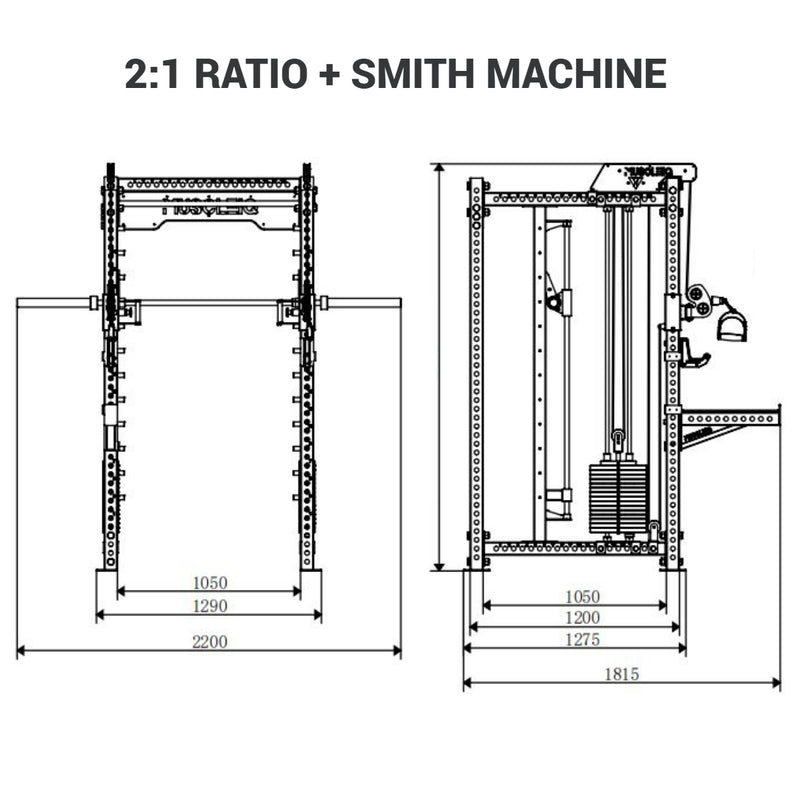

Dimensions
Use the table below to compare footprint and height across each configuration.
| Configuration | Front view width (mm) | Internal / usable width (mm) | Height (mm) | Depth / footprint (mm) | Notes |
|---|---|---|---|---|---|
| 1:1 Ratio (Power Rack) | 1290 | 1050 | 2331 | 1358 | No Smith Machine |
| 2:1 Ratio (Power Rack) | 1290 | 1050 | 2331 | 1258 | No Smith Machine |

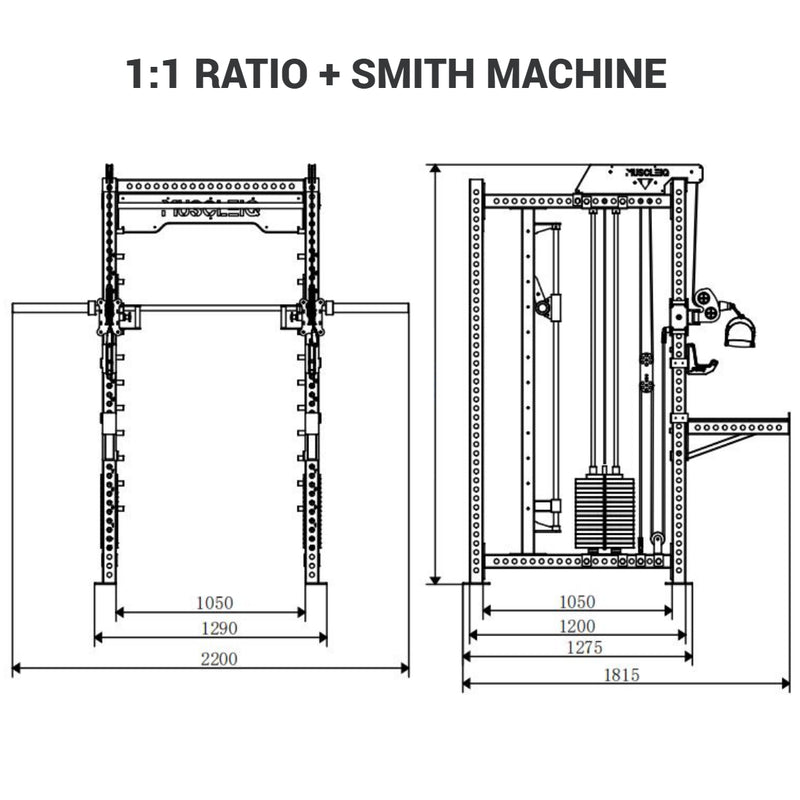

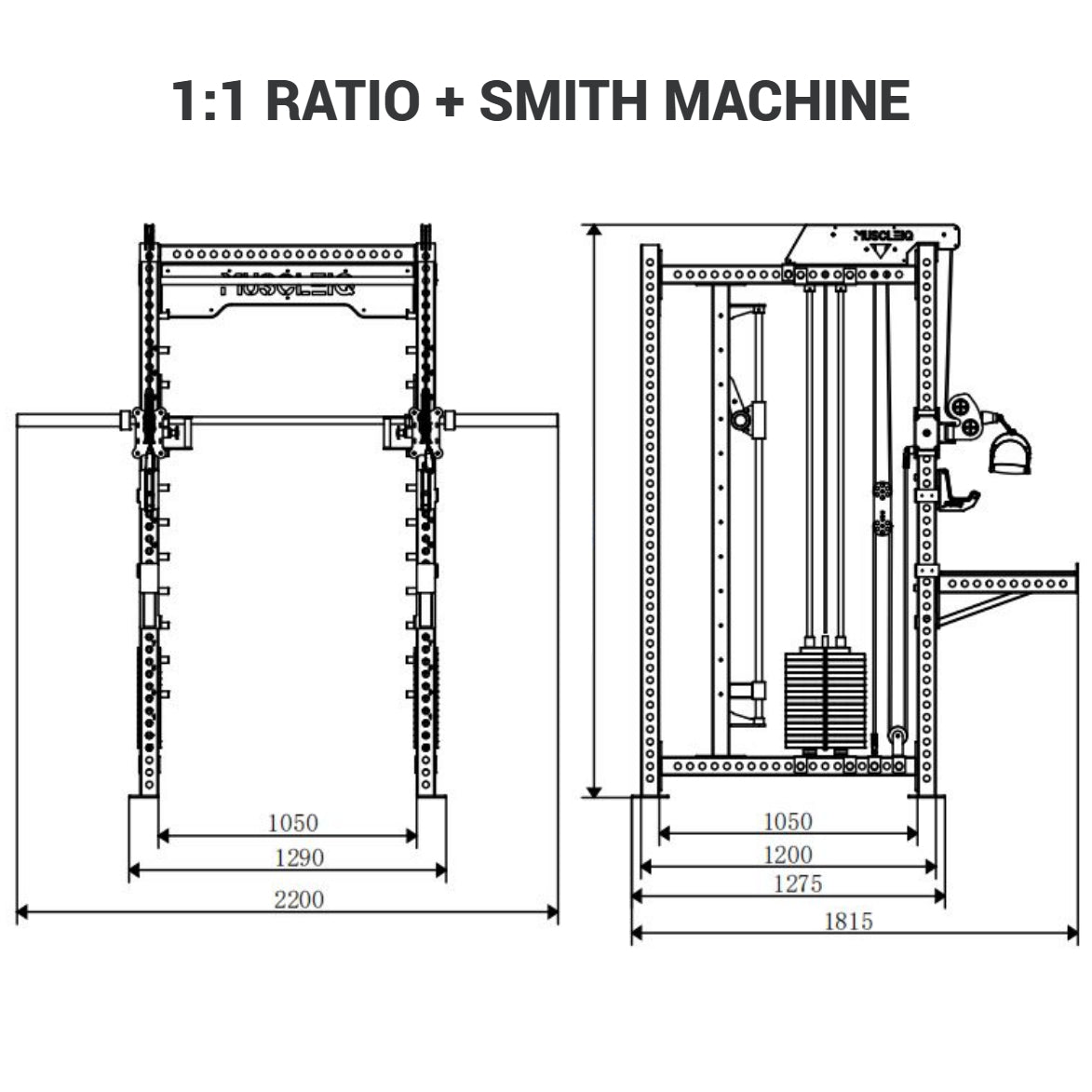

| 1:1 Ratio + Smith Machine | 2200 | 1050 | 2331 | 1815 | Includes Smith rails + bar path |

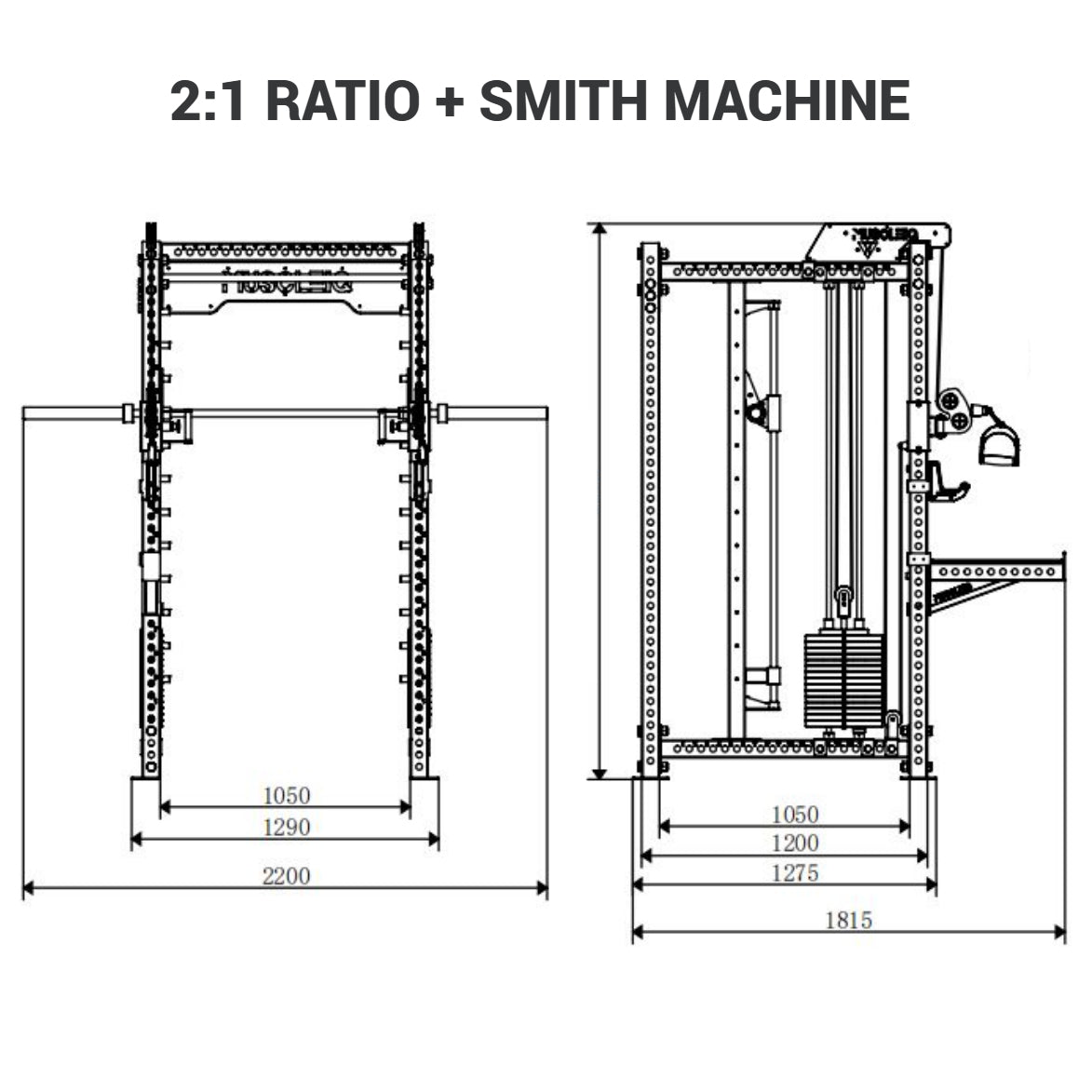

| 2:1 Ratio + Smith Machine | 2200 | 1050 | 2331 | 1815 | Includes Smith rails + bar path |
Measurements shown are taken from the technical drawings and may vary slightly by manufacturing tolerance.
Rack Dimensions
Ratios

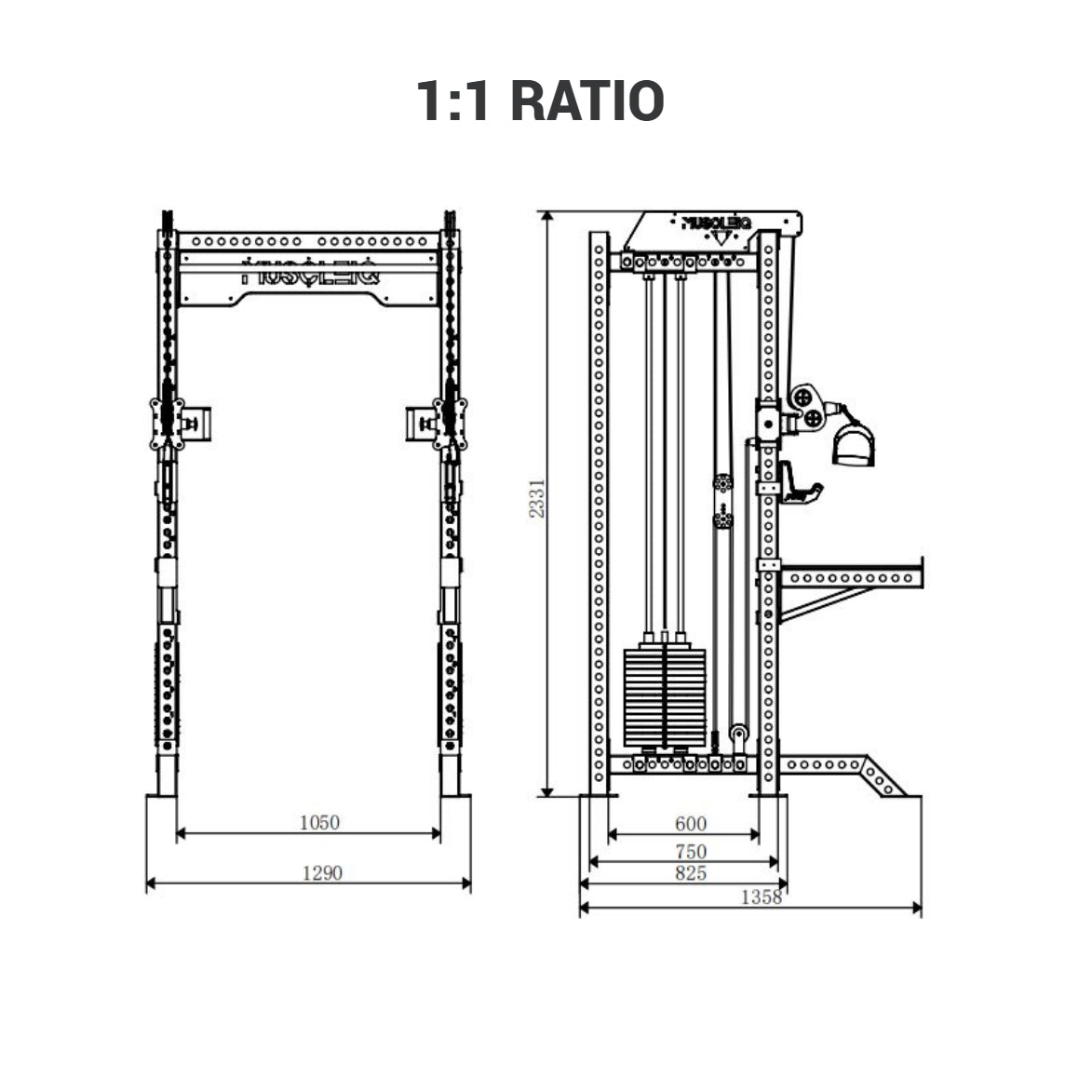

1:1 Ratio
A 1:1 ratio means you are lifting the full selected load, so 20 kg feels like 20 kg. This makes it ideal for heavy pulling, strength work and direct resistance.

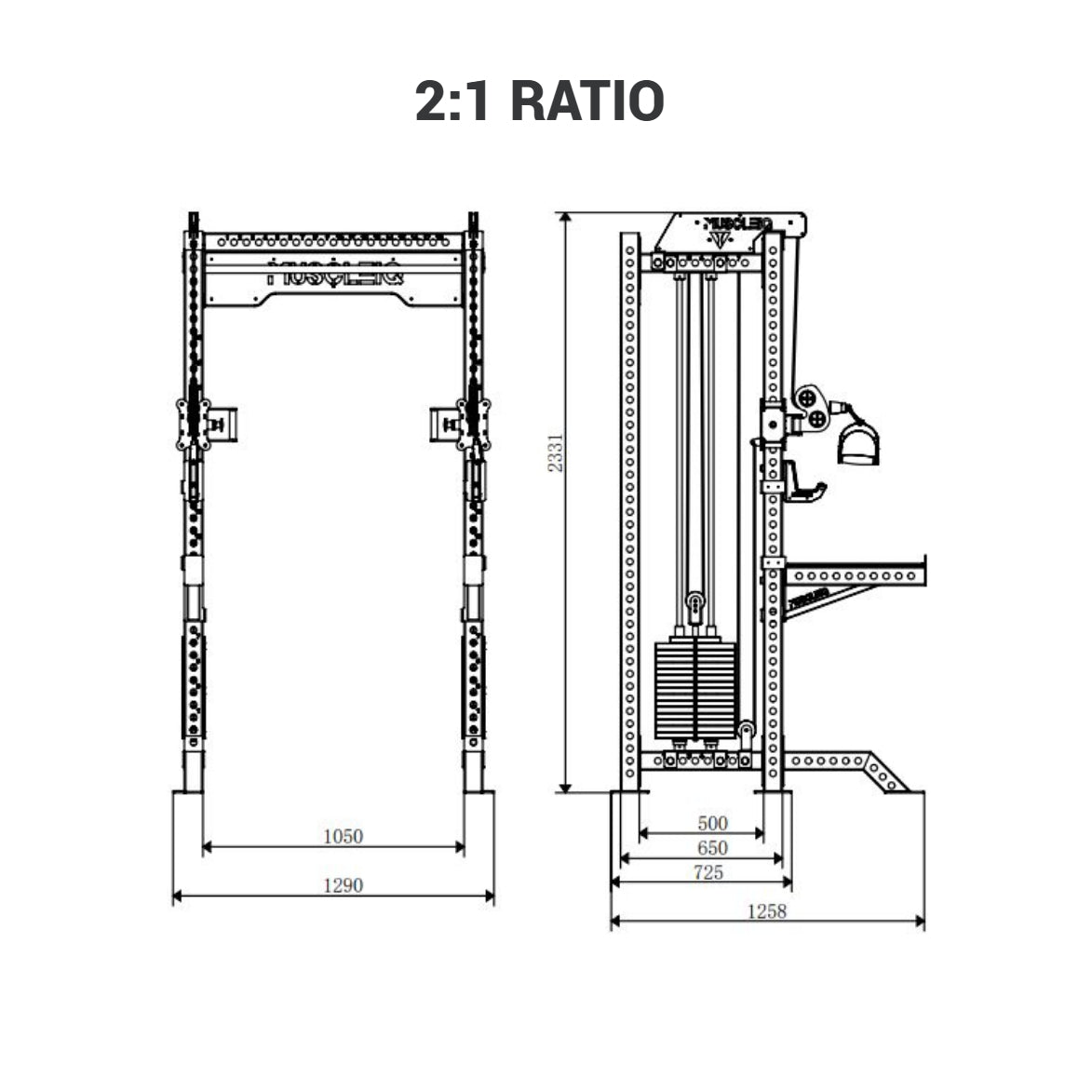

2:1 Ratio
A 2:1 ratio reduces the felt resistance by half, so 20 kg feels like 10 kg. This allows you to train with smoother repetitions, higher volume and a more controlled tempo without sacrificing range of motion.
Example
Simple example: if you set the stack to 60 kg, a 1:1 setup feels like 60 kg in hand, while a 2:1 setup feels like 30 kg. This is helpful for isolation work, such as triceps pushdowns or cable lateral raises, and for longer sets.
This system adapts to any training need, from compound lifts and isolated movements to full-body sessions, delivering elite versatility in a compact footprint.
Smith Machine
Designed for safe, stable, and repeatable strength training, the Smith Machine uses a guided bar path to keep your lifts controlled—ideal when training alone or when you want consistent technique across every rep.
- More confidence under load: Built-in guidance supports controlled squats, presses, rows, and accessory lifts.
- Cleaner progress tracking: A fixed movement path helps keep range of motion consistent session to session.
- Great for hypertrophy work: Easier to push sets closer to failure with less setup and less need for a spotter.
Bar details
7ft bar, 20kg, compatible with standard Olympic plates; smooth guided travel for predictable feel on every rep.
Shipping & Returns
Shipping
At Muscleiq, we aim to deliver your orders quickly and efficiently:
- Processing Time: Orders placed before 1 PM are processed and dispatched the same business day (excluding weekends and bank holidays).
- Delivery Time: Most orders are delivered within 1 business day for UK mainland addresses.
- Shipping Cost: Free shipping is available across the UK.
For detailed information, kindly refer to our Shipping Policy.
Returns & Refunds
At Muscleiq we want you to be stisfied with your order but we understand people sometimes change their mind.
- If you would like to request a refund or exchange, please contact us within 30 days of receiving your order.
- If you have any queries, please kindly reach out to our customer service or refer to our Returns & Refunds Policy.
Warranty
- We offer on all of our products a standard 12 month warranty.
- If you have any queries, please kindly reach out to our customer service or refer to our Returns & Refunds Policy.
KEY FEATURES
Premium Quality
Crafted from the finest materials for exceptional durability.
Ergonomic Design
Designed for comfort and optimal performance
Versatile Use
Perfect for various applications and settings
Features That Perform
trolleys

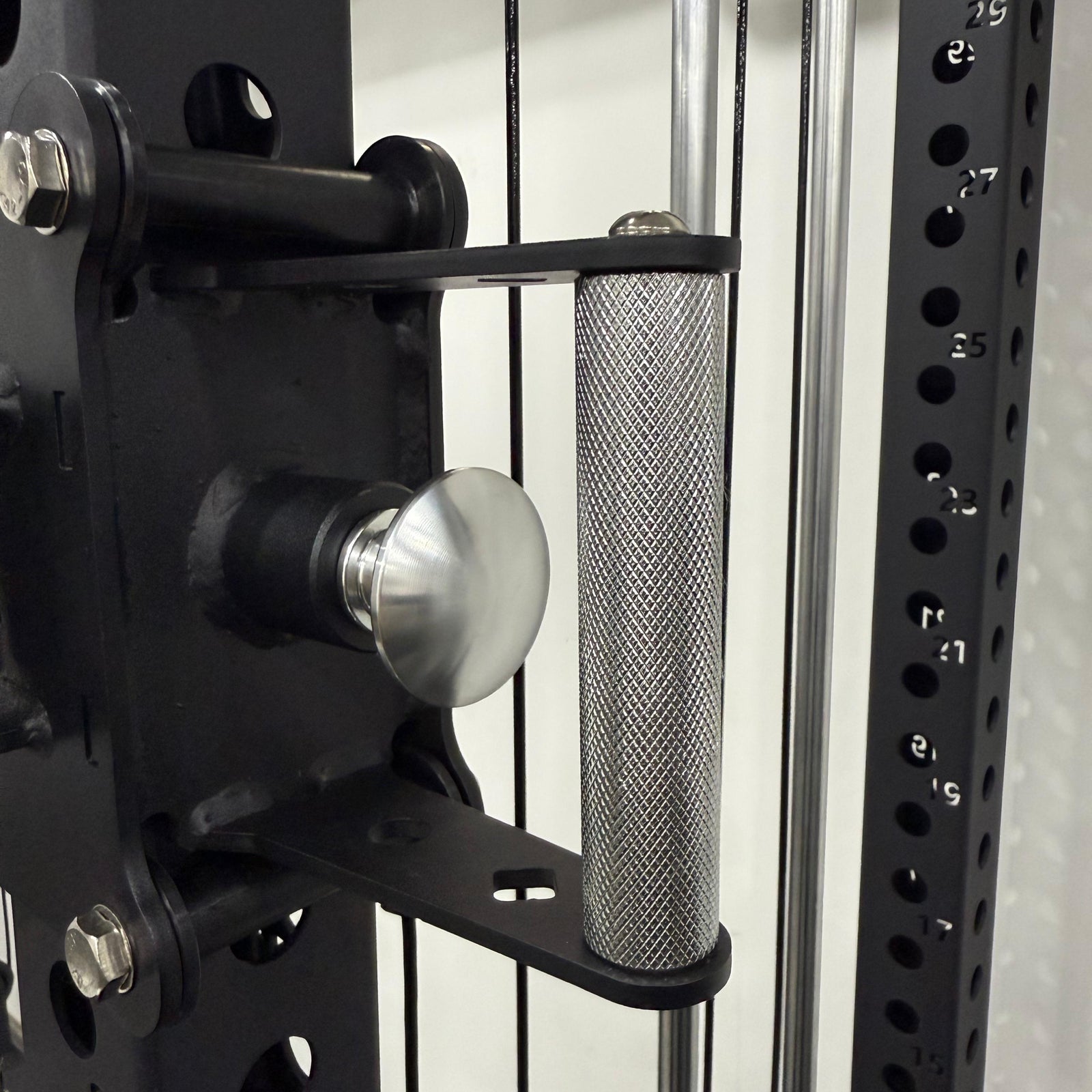

Rack trolleys are adjustable sliding mechanisms with a quick release pin that lets you move and lock at your desired height. They run smoothly up and down the rack’s uprights.
Smith Machine
Versatile strength training system designed to provide safety, stability, and precision during weightlifting exercises. Featuring a guided barbell fixed within steel rails, it allows smooth vertical movement for controlled squats, presses, and lifts without the need for a spotter.

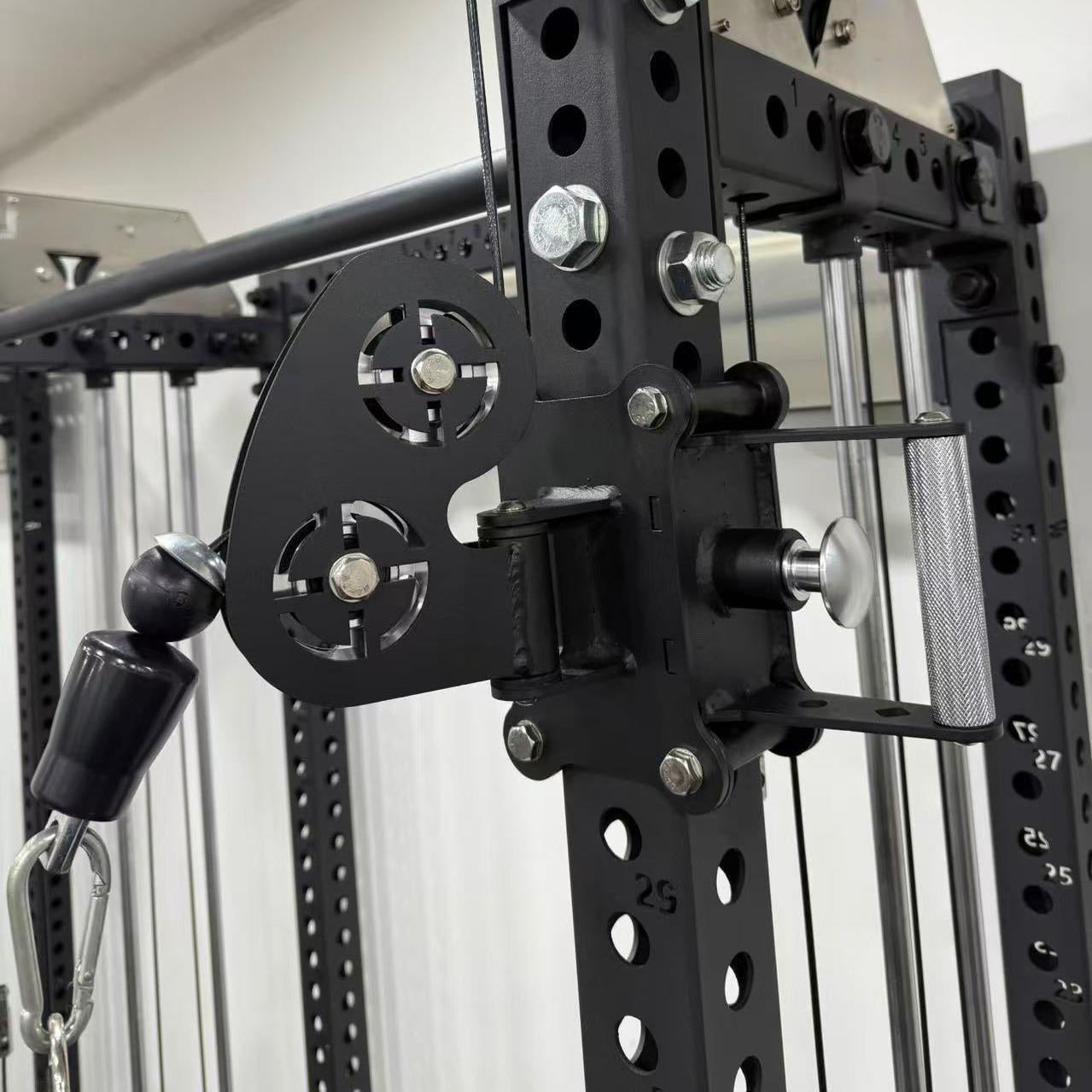

aluminum pulleys
Offer's smooth, consistent cable motion and exceptional durability for strength training. Built from high-grade, lightweight aluminum, these pulleys reduce friction and wear compared to plastic alternatives, ensuring efficient energy transfer during lifts.
trolleys
Rack trolleys are adjustable sliding mechanisms with a quick release pin that lets you move and lock at your desired height. They run smoothly up and down the rack’s uprights.
Smith Machine
Versatile strength training system designed to provide safety, stability, and precision during weightlifting exercises. Featuring a guided barbell fixed within steel rails, it allows smooth vertical movement for controlled squats, presses, and lifts without the need for a spotter.
aluminum pulleys
Offer's smooth, consistent cable motion and exceptional durability for strength training. Built from high-grade, lightweight aluminum, these pulleys reduce friction and wear compared to plastic alternatives, ensuring efficient energy transfer during lifts.
